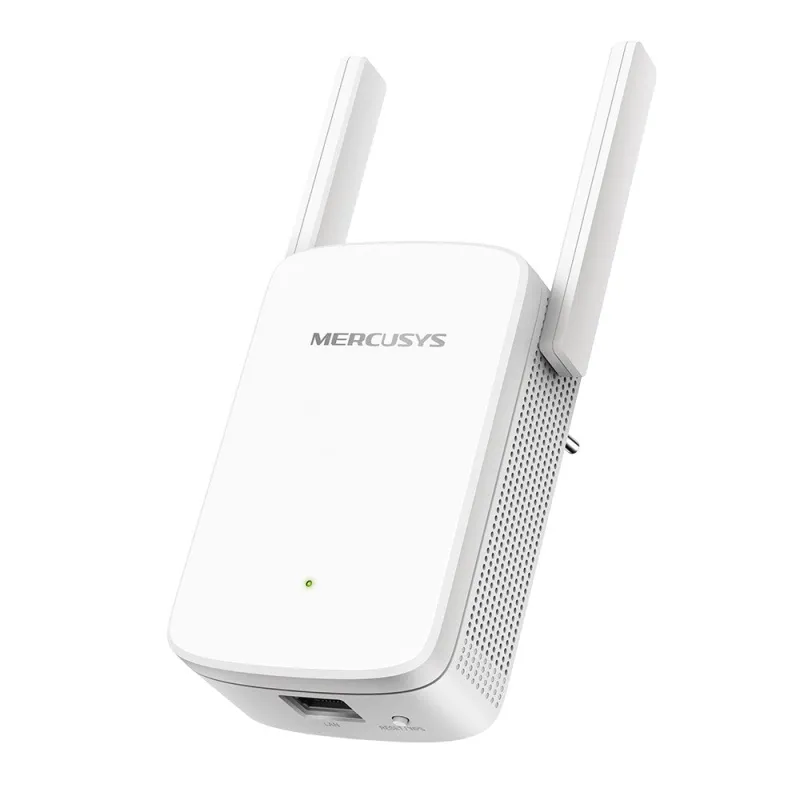

Mercusys AC1200 Wi-Fi Range Extender
- Eliminate WiFi Dead Zones — Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly
- AC1200 Dual Band WiFi — Keep your whole home connected with strong WiFi expansion at a combined speed of up to 1.2 Gbps
- Easy One-Touch Setup — Simply press the WPS button to expand your WiFi coverage in seconds
- Signal Indicator — Multicolor LED helps you find the right location for your range extender for the best WiFi extension
- Fast 10/100 Mbps Port — Provides speedy wired connections for PCs, IPTVs, and game consoles
- Works with Any Router or Wireless Access Point
Boost WiFi Coverage
with Dual Band Speed
AC1200 Wi-Fi Range Extender
Extend WiFi to Where You Need It Most
The ME30 wall-mounted range extender with adjustable high-gain antennas easily expands your Wi-Fi router’s coverage, letting you finally eliminate Wi-Fi dead zones from your home. Enjoy the high speed expansion WiFi wherever you need.
AC1200 High-Speed Wi-Fi
Enjoy a fast extended Wi-Fi anywhere up to 1200 Mbps (867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz), ideal for 4K streaming and online gaming.
Adaptive Path Selection
The ME30 keeps your network running at top-speed by intelligently choosing the best available route and band for your data.
Smart Signal Indicator
Multicolor LED helps you find the right location for your range extender for the best Wi-Fi extension
Easy One-Touch Setup
Press the WPS button on your router and the WPS button on your extender to expand your Wi-Fi coverage in seconds.
– Step 1：Press the WPS button on your router and the ME30
– Step 2：Relocate the ME30 to the best place with smart signal indicator
Built-In Access Point Mode
ME30 is more than just a WiFi range extender. Connect your wired internet connection to the ME30 via Ethernet cable to turn it into a dual band WiFi access point.
| Performance | |
|---|---|
| WPS push button | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Data transfer rate | 867 Mbit/s |
| Type | Network repeater |
| Antenna | |
|---|---|
| Antenna type | External |
| Antennas quantity | 2 |
| Network | |
|---|---|
| Security algorithms | WPA-PSK, WPA2-PSK |
| Wi-Fi data rate (max) | 867 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
|---|---|
| Certification | CE, RoHS |
| Reset button | Yes |
| LED indicators | Yes |
| Product colour | White |
| Power | |
|---|---|
| Power consumption (typical) | 9.2 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 39 mm |
| Depth | 84.7 mm |
| Width | 112 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
