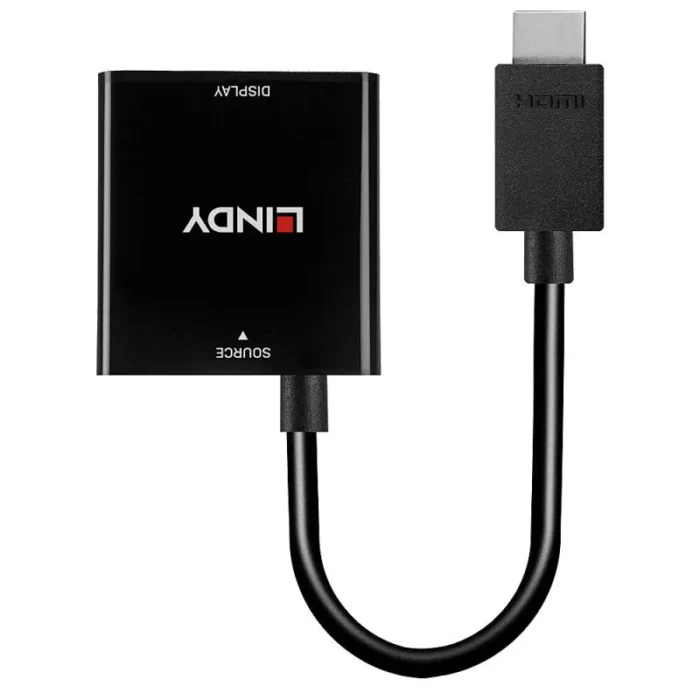

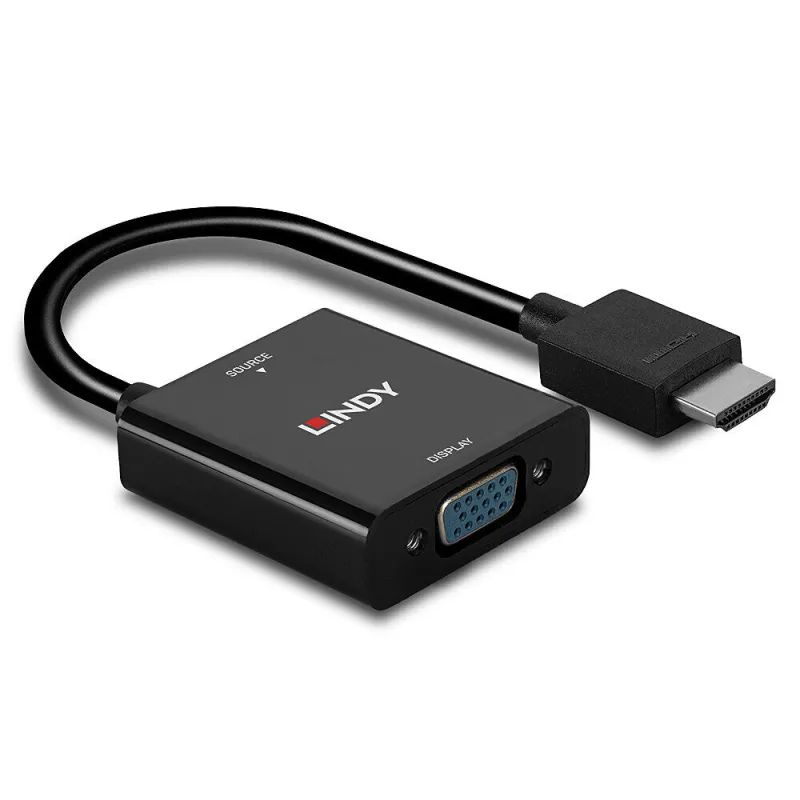

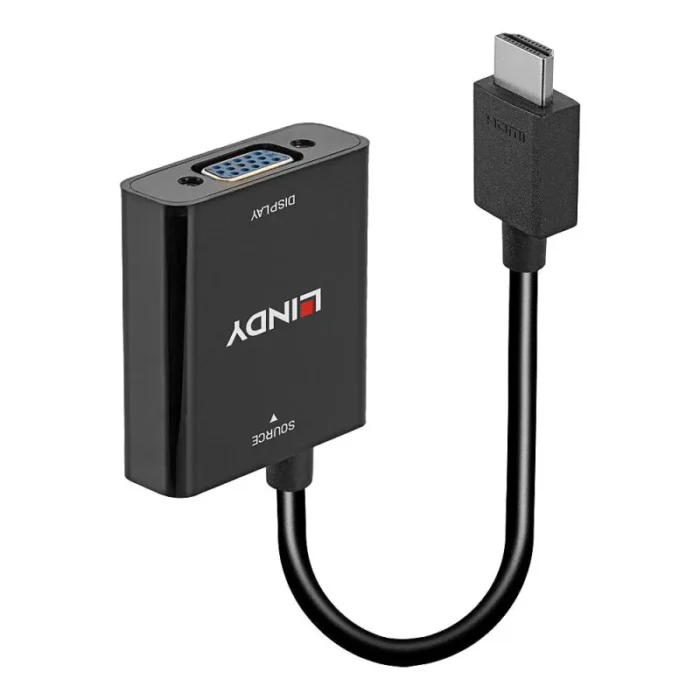

Lindy HDMI to VGA Converter
- Connects an HDMI equipped device to a VGA display
- Supports resolutions up to 1920×1200 including 1080p
- Direct signal conversion, without scaling
- Quick and simple plug and play installation
- 2 year warranty
The Lindy HDMI 1.3 to VGA converter converts signals from an HDMI equipped source into an analogue VGA signal. It supports resolutions up to 1080p and 1920×1200 for PC VGA displays. This allows the connection of modern HDMI capable devices, such as PC’s, notebooks and ultrabooks, to an older VGA display or projector.
The converter can also be used to add another display to extend the available desktop workspace. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug and play installation.
| Features | |
|---|---|
| Plug and Play | Yes |
| Colour depth | 12 bit |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Jacket material | Polyvinyl chloride (PVC) |
| Chipset | Algoltek AG6200A |
| Product colour | Black |
| Maximum refresh rate | 60 Hz |
| Data transfer rate | 4.95 Gbit/s |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p |
| Maximum resolution | 1920 x 1080 pixels |
| HDMI version | 1.3 |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 | VGA (D-Sub) |
| Connector 1 | HDMI Type A (Standard) |
| Cable length | 0.1 m |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -10 – 80 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Certificates | |
|---|---|
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Weight & dimensions | |
|---|---|
| Weight | 27 g |
| Connector 2 dimensions (WxDxH) | 21 x 17.4 x 9.6 mm |
| Connector 1 dimensions (WxDxH) | 37 x 42 x 14.5 mm |
| Cable diameter | 4.8 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Package weight | 37 g |
| Package height | 160 mm |
| Package depth | 20 mm |
| Package width | 160 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
