Lindy 50m USB 2.0 Cat.6 Extender
- Extends a single USB port up to 50m using low cost Cat.5e/6 network cable (not included)
- Plug and Play installation, OS independent
- Perfect for use with USB 2.0 devices such as storage devices, printers, scanners, mice and keyboards
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- 2 year warranty

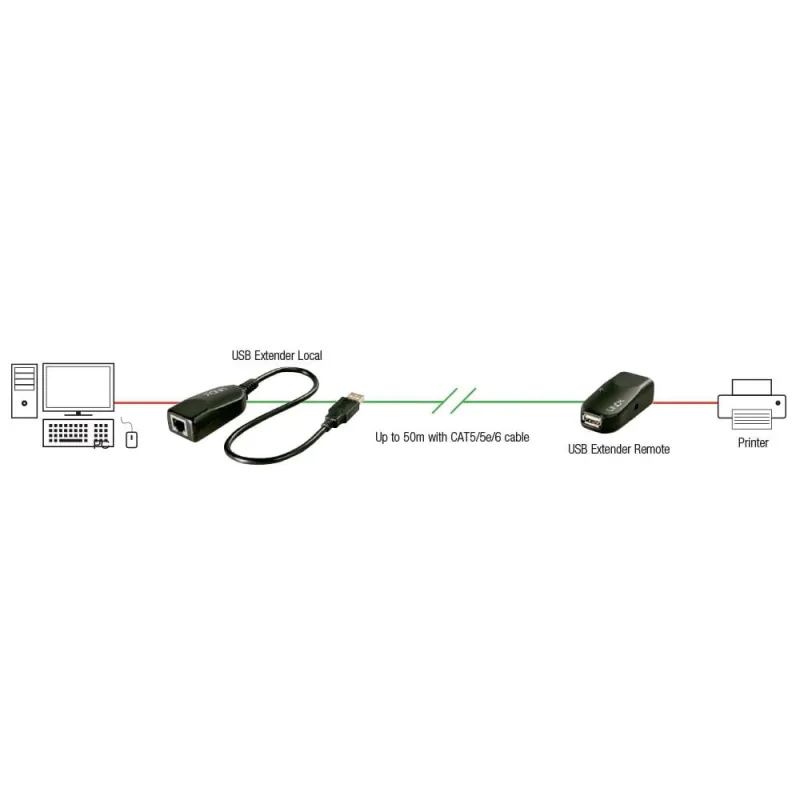

The Lindy 50m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 50m.

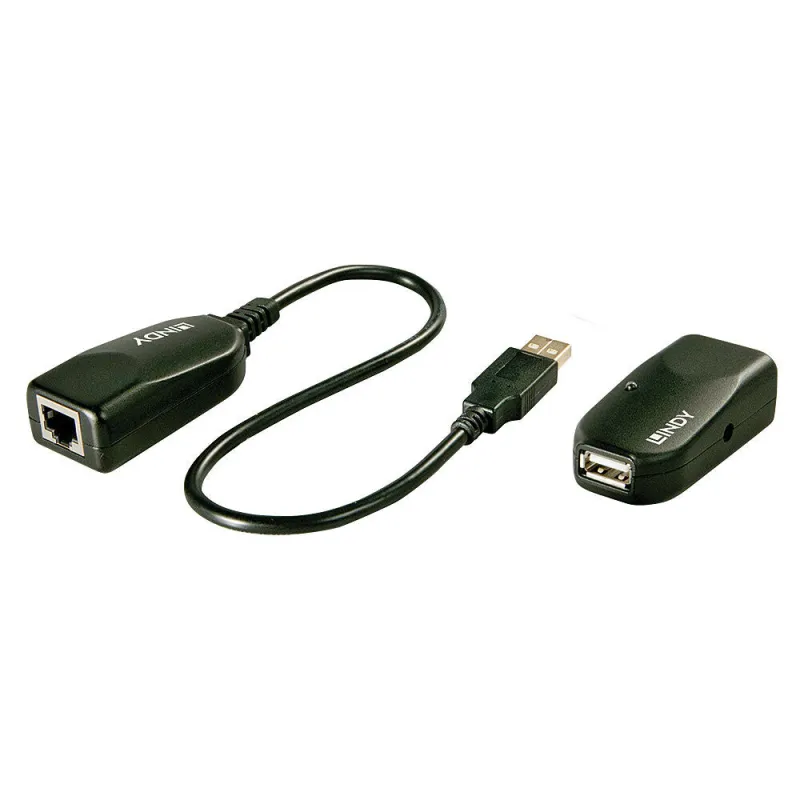

It consists of a local unit which connects to the computer and a remote unit that connects to the device.
Standard, low cost Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units.For best performance and compatibility, we recommend the use of solid core patched cables.
The included power supply ensures secure and uninterrupted electricity supplies.
| Performance | |
|---|---|
| Chipset | LG-8311 |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 50 m |
| Type | Network transmitter & receiver |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB 2.0 ports quantity | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| RJ-45 ports quantity (transmitter) | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Housing material | Plastic |
| Product colour | Black |
| Power | |
|---|---|
| Included power plug types | AU, EU, UK, US |
| Power note | 3.5/1.35mm DC |
| Output current | 2.1 A |
| Output voltage | 5 V |
| External power adapter | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 – 90% |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -20 – 80 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Weight & dimensions | |
|---|---|
| Cable length | 7.5 m |
| Weight | 64 g |
| Height | 15 mm |
| Depth | 60 mm |
| Width | 30 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Packaging data | |
|---|---|
| Package volume | 235 cm³ |
| Package height | 85 mm |
| Package depth | 130 mm |
| Package width | 140 mm |
| Package type | Box |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
- leaflet
- CE Declaration of Conformity
