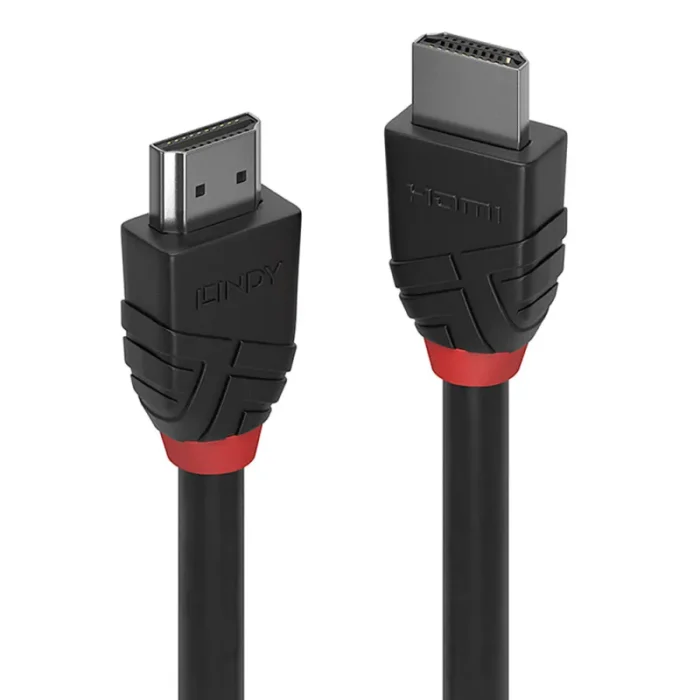

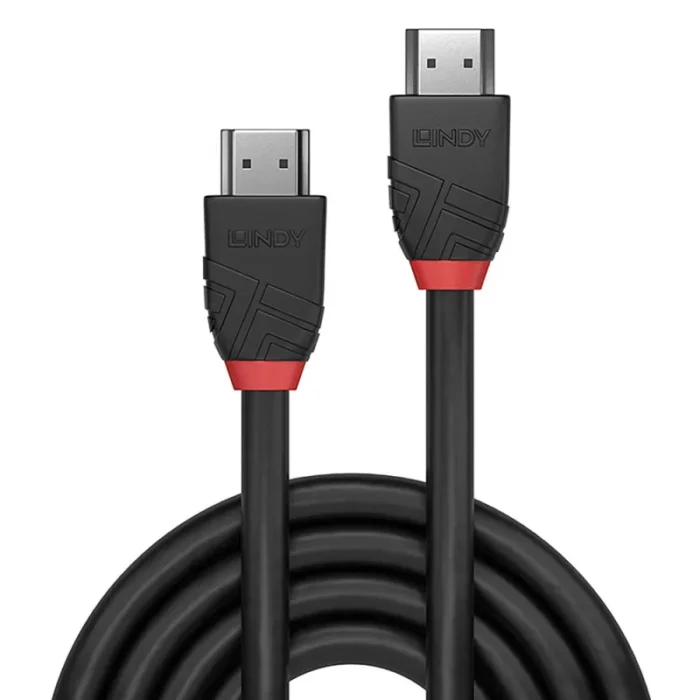

Lindy 3m High Speed HDMI Cable, Black Line
- Entry level High Speed HDMI 2.0 cable for home and small office applications
- Supports UHD resolutions up to 4096×2160@60Hz 4:4:4 8bit
- Robust PVC housing, nickel connectors, gold flashed contacts
- Triple shielded cable, corrosion resistant copper coated steel 30AWG conductors
- HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; 10 year warranty
From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line High Speed HDMI cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096×2160@60Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 15m.
Black Line HDMI cables are available in lengths from 0.5m to 15m.
| Features | |
|---|---|
| Nominal attenuation | 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB |
| Colour sampling | 4:4:4 |
| Colour depth | 8 bit |
| Bending radius (min) | 6 cm |
| Shield material | Aluminium |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Cable material | Copper-clad steel (CCS) |
| Connector housing material | Polyvinyl chloride (PVC) |
| Connector material | Nickel |
| Connector contacts plating | Gold |
| Contact material | Phosphor bronze |
| AWG wire size | 30 |
| Maximum resolution | 4096 x 2160 pixels |
| Data transfer rate | 18 Gbit/s |
| HDMI Ethernet channel | Yes |
| Supported graphics resolutions | 4096 x 2160 |
| HDMI version | 2.0 |
| Product colour | Black |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 | HDMI Type A (Standard) |
| Cable length | 3 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 – 80 °C |
| Operating temperature (T-T) | -10 – 80 °C |
| Certificates | |
|---|---|
| Certification | RoHS, REACH, UL |
| Weight & dimensions | |
|---|---|
| Connector 2 dimensions (WxDxH) | 19.2 x 34.1 x 10.6 mm |
| Connector 1 dimensions (WxDxH) | 19.2 x 34.1 x 10.6 mm |
| Cable diameter | 6 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
