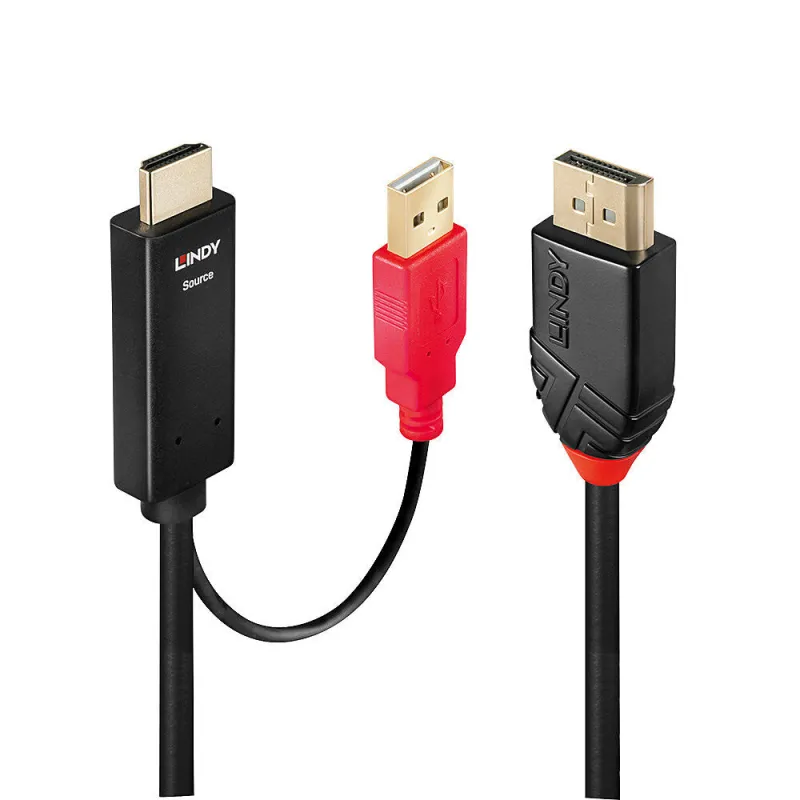

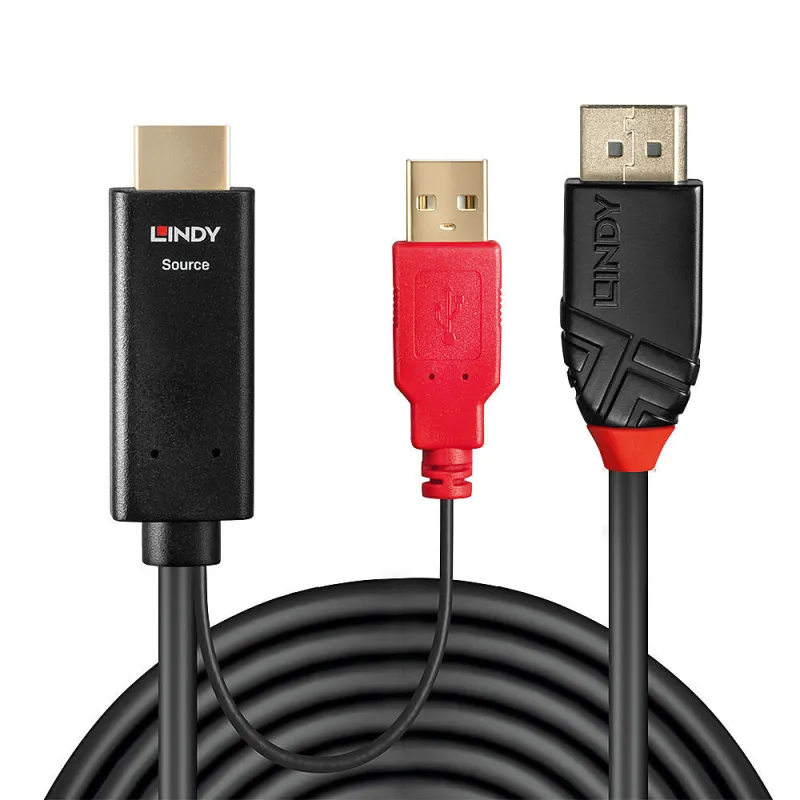

Lindy 3m HDMI to DisplayPort Cable
- Connect an HDMI equipped device to a DisplayPort display
- Supports high quality resolutions up to 4K@30Hz
- Compliant with HDMI 1.4 and DisplayPort 1.2 specification
- Compliant with HDCP 1.4 and DPCP 1.3
- 2 year warranty
Lindy’s HDMI to DisplayPort cables combine sleek, modern design with superior performance to provide a high quality conversion of HDMI signals to output to a DisplayPort display. This range of active cables come with a chipset housed neatly inside the HDMI connector to ensure a consistently reliable connection between HDMI media players, games consoles and PCs to DisplayPort monitors.
With support for resolutions up to 4096×2160@30Hz, these cables are great for creating innovative working environments, engaging educational workstations or immersive gaming experiences, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video. The additional USB Type A connector can optionally be used to amplify the power to ensure a reliable connection in all situations.
| Features |
| Cable shielding |
Aluminium braid |
| Plug and Play |
Yes |
| Colour sampling |
4:4:4 |
| AWG wire size |
30 |
| Connector material |
Gold |
| Connector housing material |
Acrylonitrile butadiene styrene (ABS) |
| Cable type |
Round cable |
| Jacket material |
Polyvinyl chloride (PVC) |
| Nominal attenuation |
300kHz-825MHz 5dB825MHz-2.475GHz 5dB2.475GHz-4.125GHz 12dB4.125GHz-5.1GHz 20dB |
| Conductor material |
Tinned copper |
| Product colour |
Black, Red |
| Bend radius (min) |
5.5 cm |
| Maximum refresh rate |
30 Hz |
| Data transfer rate |
10.2 Gbit/s |
| Supported video modes |
1080p, 2160p |
| Maximum resolution |
4096 x 2160 pixels |
| DisplayPort version |
1.2 |
| Connector contacts plating |
Gold |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
DisplayPort |
| Connector 1 |
HDMI + USB Type-A |
| Cable length |
3 m |
| Operational conditions |
| Storage temperature (T-T) |
-10 – 80 °C |
| Operating temperature (T-T) |
0 – 45 °C |
| Certificates |
| Certification |
CE, UKCA, FCC, RoHS, REACH, UL, California Proposition 65 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Connector 3 dimensions (WxDxH) |
36.4 x 20 x 9.4 mm |
| Connector 2 dimensions (WxDxH) |
37.5 x 15.8 x 8 mm |
| Connector 1 dimensions (WxDxH) |
48 x 20.9 x 11.3 mm |
| Cable diameter |
5.5 mm |
| Packaging data |
| Package type |
Polybag |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
