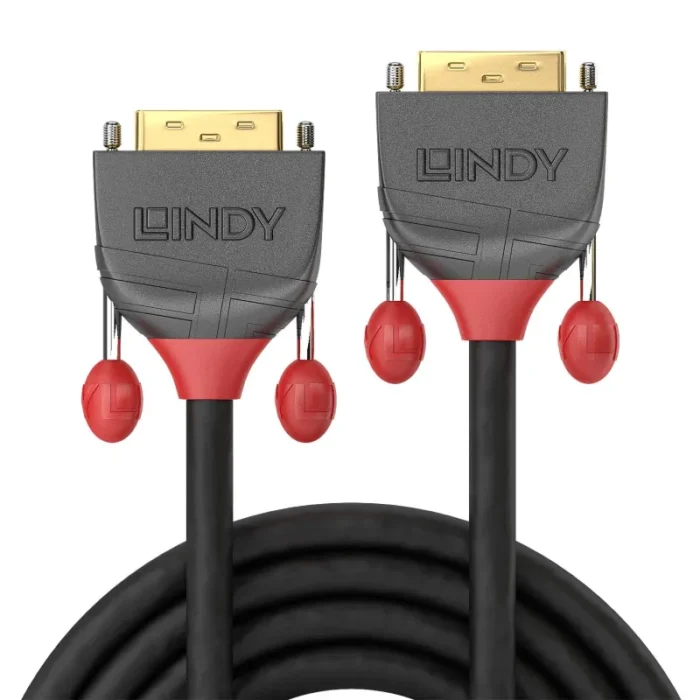

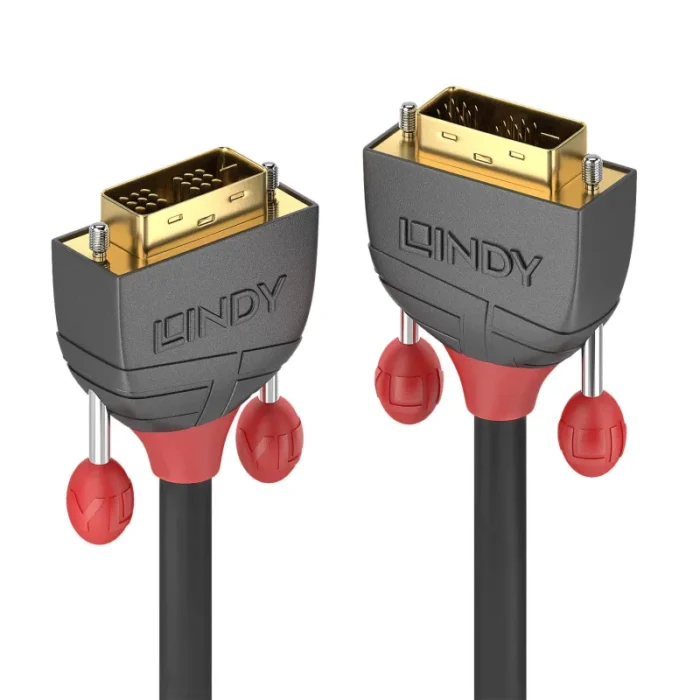

Lindy 10m DVI-D Single Link Cable, Anthra Line
- Professional choice DVI-D Single Link cable for commercial and high performance AV and IT installations
- Supports DVI resolutions up to 1920×1200 @60Hz and HDTV resolutions up to 1080p
- Robust PVC housing, 24K gold plated connectors and contacts
- Triple shielded cable, corrosion resistant tinned copper 24AWG conductors
- 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Anthra Line DVI-D Single Link cables are the professional choice for high performance connections in commercial AV and digital signage applications.
Anthra Line DVI-D Single Link cables feature triple shielded construction with 24AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
The tough PVC housing incorporates an integrated finger grip for easy installation. Large thumb screws allow the connector to be tightened into place without the need for a screwdriver and a flexible strain relief prolongs cable life.
Anthra Line DVI-D Single Link cables support resolutions up to 1920×1200@60Hz including HDTV resolutions up to 1080p.
Anthra Line DVI-D Single Link cables are available in lengths of 10m to 25m.
| Features | |
|---|---|
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector contacts plating | Copper |
| AWG wire size | 24 |
| Maximum resolution | 1920 x 1200 pixels |
| Data transfer rate | 4.95 Gbit/s |
| Dual Link DVI | No |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Product colour | Black |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DVI-D |
| Connector 1 | DVI-D |
| Cable length | 10 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -25 – 85 °C |
| Operating temperature (T-T) | -20 – 80 °C |
| Certificates | |
|---|---|
| Certification | REACH, UL |
| Compliance certificates | RoHS |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
