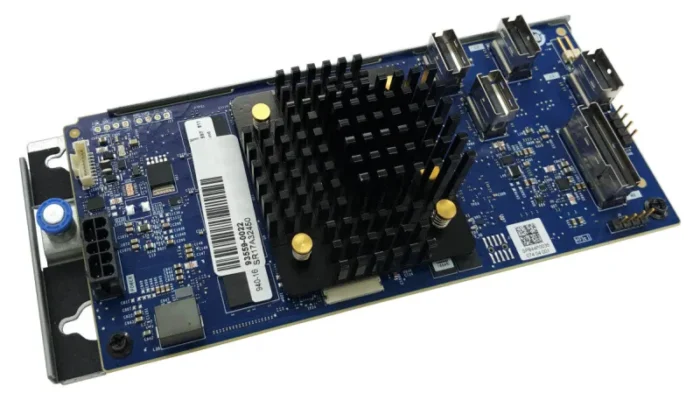

Lenovo ThinkSystem RAID 940-16i RAID controller PCI Express x8 4.0 12 Gbit/s
- Supported storage drive interfaces: SAS
- Host interface: PCI Express x8
- RAID levels: 0, 1, 5, 6, 10, 50, 60, JBOD
- 12 Gbit/s
- SSD support
- Number of devices supported: 16
The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
The RAID 940 Series adapters all have a PCIe 4.0 host interface which doubles the bandwidth between the server and the adapter, compared to the previous generation RAID 930 adapters. This improves overall performance of the storage subsystem by supporting up to 3 million IOPS (JBOD mode) and up to 3 million IOPS in RAID (random reads).
RAID on Chip-based controllers such as the RAID 940 adapters have a dedicated processor that offloads all RAID functions from the server’s CPU. With hardware acceleration for RAID 5 and 6 operations plus up to 8 GB dedicated memory for caching, the 940-8i, 16i and 32i offer the ultimate performance for ThinkSystem servers.
| Ports & interfaces |
| PCI Express slots version |
4.0 |
| Host interface |
PCI Express x8 |
| Supported storage drive interfaces |
SAS |
| Performance |
| Compatible products |
SR665 (7D2W/7D2V), SR645 (7D2Y/7D2X) |
| Certification |
USA (FCC 47 CFR part 15 Subpart B, class B)Canada (ICES -003, Class B)Taiwan (CNS 13438)Japan (VCCI V-3)Australia/New Zealand (AS/NZS CISPR 22)Korea (RRA no 2013-24 & 25)Europe (EN55022/EN55024)Safety: EN/ IEC/ UL 60950RoHSWEEE |
| Hot-swap |
Yes |
| Number of devices supported |
16 |
| Internal memory |
8000 MB |
| SSD support |
Yes |
| Data transfer rate |
12 Gbit/s |
| RAID Level Migration |
Yes |
| RAID levels |
0, 1, 5, 6, 10, 50, 60, JBOD |
| System requirements |
| Compatible operating systems |
Microsoft Windows Server 2016Microsoft Windows Server 2019Red Hat Enterprise Linux 8.1SUSE Linux Enterprise Server 12 SP5SUSE Linux Enterprise Server 12 SP5 with XenSUSE Linux Enterprise Server 15 SP1SUSE Linux Enterprise Server 15 SP1 with XenVMware vSphere Hypervisor (ESXi) 6.7 U3VMware vSphere Hypervisor (ESXi) 7.0 |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
20 – 80% |
| Operating temperature (T-T) |
10 – 55 °C |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
