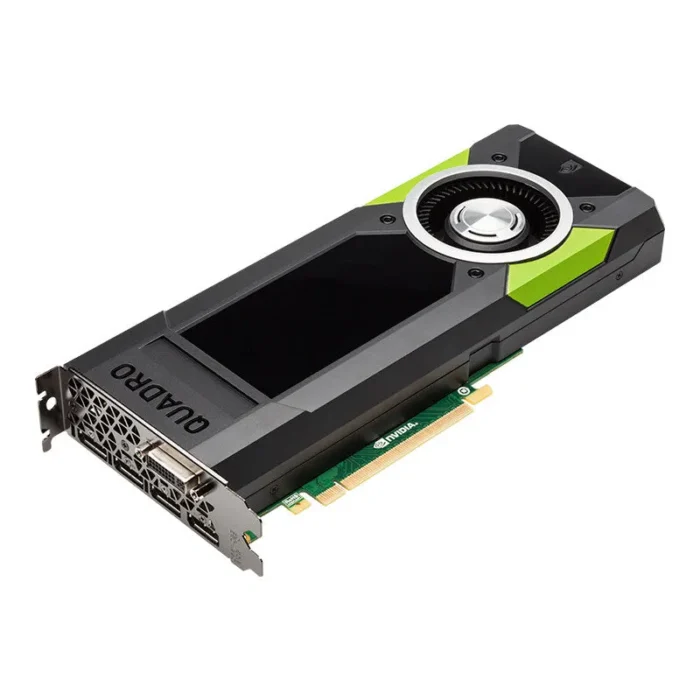

Lenovo Quadro M5000 NVIDIA 8 GB GDDR5
- NVIDIA Quadro M5000 8 GB GDDR5
- 4096 x 2160 pixels 256 bit PCI Express x16 3.0
- DisplayPorts quantity: 4
- DVI-I ports quantity: 1
- DirectX version: 12.0 OpenGL version: 4.5
- 150 W
Get real interactive expression with NVIDIA® Quadro® —the world’s most powerful workstation graphics.
The NVIDIA Quadro M5000, accelerated by NVIDIA’s Maxwell™ GPU architecture, delivers incredible performance within just 150W to let you unleash your creativity and conquer extreme workloads with ease. 8 GB of GDDR5 GPU memory with fast bandwidth allows
you to create and render large, complex models and compute massive datasets with ECC support for added reliability. Plus, there’s a new display engine that drives up to four 4K resolution displays natively for ultra-high resolutions like 4096×2160 @ 60 Hz with 30-bit color.
Pair up two or more outputs to drive displays greater than 4K, and take advantage of NVIDIA Quadro Sync support to frame-lock multiple displays together.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
| Processor |
| Maximum digital resolution |
4096 x 2160 pixels |
| FireStream |
No |
| CUDA cores |
2048 |
| CUDA |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Graphics processor |
Quadro M5000 |
| Graphics processor family |
NVIDIA |
| Memory |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR5 |
| Discrete graphics card memory |
8 GB |
| Ports & interfaces |
| DisplayPort version |
1.2 |
| DVI-I ports quantity |
1 |
| DisplayPorts quantity |
4 |
| Interface type |
PCI Express x16 3.0 |
| Performance |
| Full HD |
Yes |
| Dual Link DVI |
Yes |
| HDCP |
Yes |
| OpenGL version |
4.5 |
| Shader model version |
5.0 |
| DirectX version |
12.0 |
| TV tuner integrated |
No |
| Design |
| Product colour |
Black, Green |
| Number of slots |
2 |
| Bracket height |
Full-Height (FH) |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Cooling type |
Active |
| Power |
| Power consumption (typical) |
150 W |
| System requirements |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
