Lenovo 4XC7A08228 network card Internal Ethernet 25000 Mbit/s
- Wired
- PCI Express Ethernet
- 10 Gigabit Ethernet, 25 Gigabit Ethernet 25000 Mbit/s
- Internal Component for: Server
The ThinkSystem QLogic QL41262 10/25GbE SFP28 2-Port PCIe Ethernet Adapter is based on eighth-generation technology from Cavium and features Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. It is suitable for existing 10Gb customers who want to maintain 10Gb network support plus provide the investment protection of supporting 25GbE network speeds.
This product guide provides essential presales information to understand the adapter and its key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about QLogic 25 GbE network adapter and consider its use in IT solutions.
The ThinkSystem QLogic QL41262 10/25GbE SFP28 2-Port PCIe Ethernet Adapter is based on eighth-generation technology from Cavium and features Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. It is suitable for existing 10Gb customers who want to maintain 10Gb network support plus provide the investment protection of supporting 25GbE network speeds.

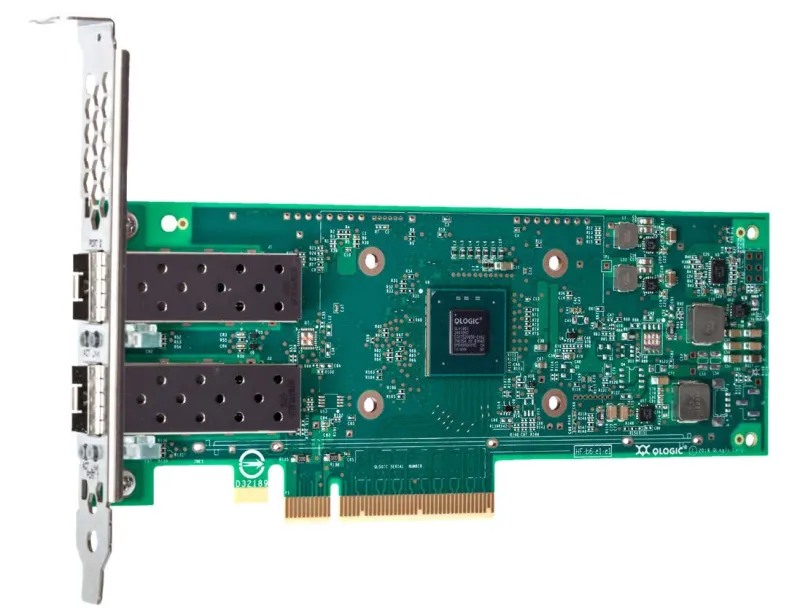

The following figure shows the ThinkSystem QLogic QL41262 10/25GbE SFP28 2-Port PCIe Ethernet Adapter.
Ports & interfaces | |
---|---|
Fiber ports quantity | 2 |
Fiber optic connector | SFP28 |
Interface | Ethernet |
Host interface | PCI Express |
Connectivity technology | Wired |
Network | |
---|---|
Ethernet LAN data rates | 10,100,1000,10000,25000 Mbit/s |
Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
Ethernet LAN | Yes |
Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1as |
Maximum data transfer rate | 25000 Mbit/s |
Design | |
---|---|
Certification | UL 60950-1CSA C22.2TUV EN60950-1TUV IEC 60950-1CB CertifiedFCC Rules,CFR Title 47, Part 15, Subpart Class AIndustry Canada, ICES-003: Class AEN55032EN55024EN61000-3-2EN61000-3-3VCCI: Class AAS/NZS: Class AKC-RRA Class ABSMI CNS 13438 |
LED indicators | Yes |
Product colour | Green |
Component for | Server |
Internal | Yes |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 5 – 90% |
Operating relative humidity (H-H) | 10 – 80% |
Storage temperature (T-T) | -40 – 65 °C |
Operating temperature (T-T) | 0 – 55 °C |
Weight & dimensions | |
---|---|
Height | 69 mm |
Depth | 167 mm |
Technical details | |
---|---|
Compliance certificates | RoHS |
Logistics data | |
---|---|
Harmonized System (HS) code | 85176990 |
