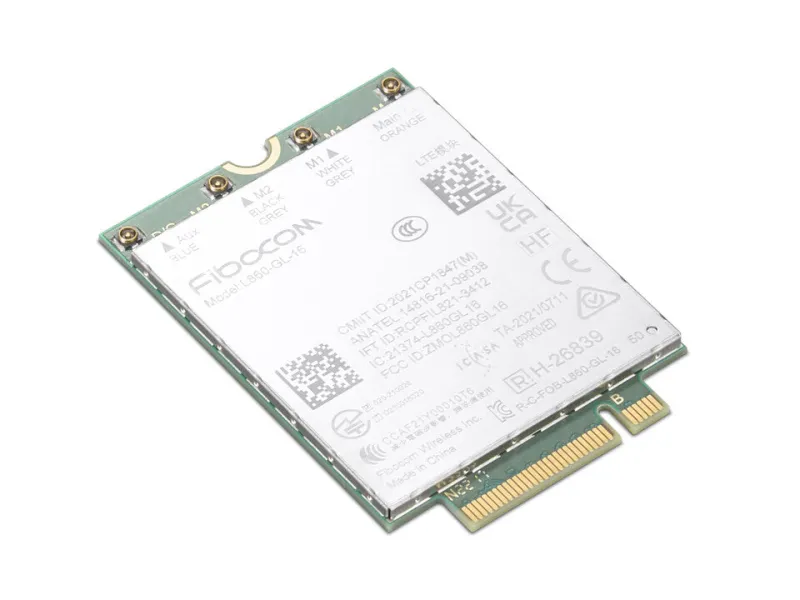

Lenovo 4XC1M72794 network card Internal WWAN 1000 Mbit/s
- Fibocom L860-GL-16
- Embedded eSIM
- 4G WWAN module
- Dimension: 30 mm x 42 mm x 2.3 mm
- Interface: M.2 Key-B
ThinkPad Fibocom L860-GL-16 4G LTE CAT16 M.2 WWAN Module is a wireless communication module with receive diversity. It helps provide data connectivity and network with PCIe Gen2 M.2 interface. With downlink speed up to 1Gbps and uplink speed up to 150 Mbps, the 4G LTE CAT16 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.
| Ports & interfaces | |
|---|---|
| Interface | WWAN |
| Host interface | M.2 |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| MU-MIMO | Yes |
| Mobile network generation | 4G |
| 4G standard | LTE-TDD & LTE-FDD |
| 3G standards | HSPA+, WCDMA |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
|---|---|
| Certification | CE for EUKCC for KoreaIFT for MexicoNTC for PhilippinesICASA for South AfricaNCC for Taiwan. |
| Antenna design | Internal |
| Component for | Laptop |
| Internal | Yes |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 11 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | -10 – 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 6.2 g |
| Height | 2.3 mm |
| Depth | 42 mm |
| Width | 30 mm |
| Packaging data | |
|---|---|
| Package weight | 30 g |
| Package height | 177 mm |
| Package depth | 144 mm |
| Package width | 53 mm |
