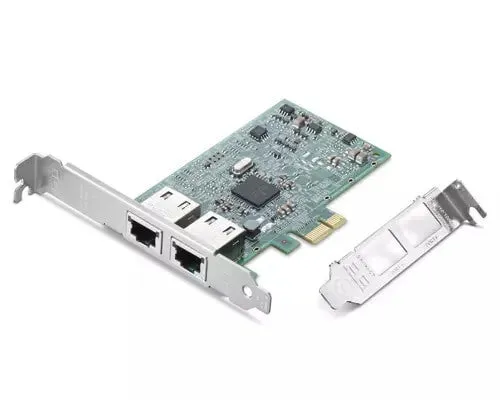

Lenovo 4XC1K83390 network card Internal Ethernet 1000 Mbit/s
- Dual-port Gigabit Ethernet (GbE) Adapter
- IEEE 802.3ab 10/100/1000 Mb/s Gigabit Ethernetcompliant
ThinkStation Broadcom BCM5720-2P Dual-port Gigabit Ethernet Adapter is a dual-port 10/100/1000 Mb/s x1 PCI Express (PCIe) Ethernet adapter that supports offload technologies including Large Send, TCP segmentation, and TCP/UDP/IP checksum, and receive-side scaling (RSS) that deliver optimal network throughput, lower host processor utilisation and as a result improve system overall performance.
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x |
| Maximum data transfer rate | 1000 Mbit/s |
| Design | |
|---|---|
| Compatible products | ThinkStation |
| Certification | CE/FCC/IC/ACA/BSM/MSIP/VCCI |
| Component for | Server |
| Internal | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 55 °C |
| Weight & dimensions | |
|---|---|
| Weight | 80 g |
| Depth | 65.6 mm |
| Width | 111.8 mm |
| Packaging data | |
|---|---|
| Package weight | 120 g |
| Package height | 53 mm |
| Package depth | 144 mm |
| Package width | 177 mm |
