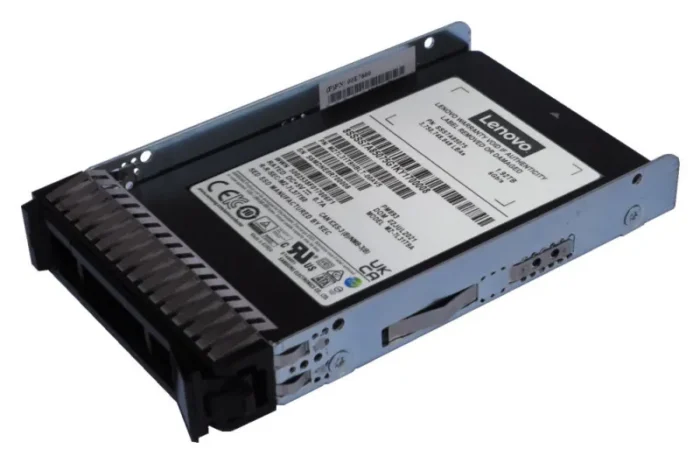

Lenovo 4XB7A72439 internal solid state drive 960 GB 2.5″ Serial ATA III V-NAND TLC
- 960 GB 2.5″ Serial ATA III
- 98000 IOPS
- 31000 IOPS
- V-NAND TLC
- S.M.A.R.T. support
- Component for: Server/workstation
The ThinkSystem PM893 Read Intensive SATA SSDs are general-purpose SSDs based on the Samsung PM893 platform and are available in capacities ranging from 480GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the PM893 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| Certification | ULTUVFCCCE MarkC-Tick MarkBSMI (Taiwan)KCC (Korea EMI) |
| Mean time between failures (MTBF) | 2000000 h |
| Drive writes per day (DWPD) | 1 |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Random latency – write (up to) | 40 µs |
| Random latency – read (up to) | 120 µs |
| Random write (4KB) | 31000 IOPS |
| Random read (4KB) | 98000 IOPS |
| Data transfer rate | 6 Gbit/s |
| Hardware encryption | No |
| Component for | Server/workstation |
| Memory type | V-NAND TLC |
| Interface | Serial ATA III |
| SSD form factor | 2.5″ |
| SSD capacity | 960 GB |
| Power | |
|---|---|
| Power consumption (write) | 3.2 W |
| Power consumption (read) | 2.2 W |
| Weight & dimensions | |
|---|---|
| Weight | 58 g |
| Height | 7 mm |
| Depth | 100 mm |
| Width | 70 mm |
| Packaging data | |
|---|---|
| Package weight | 433 g |
| Package height | 63 mm |
| Package depth | 174 mm |
| Package width | 133 mm |
| Operational conditions | |
|---|---|
| Maximum operating altitude | 3050 m |
| Non-operating shock | 1500 G |
| Non-operating vibration | 20 G |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 70 °C |
