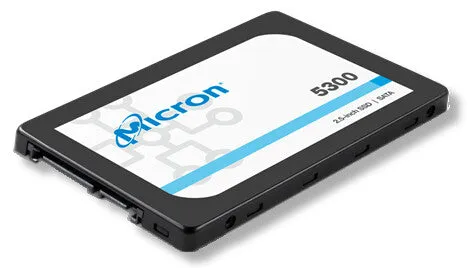

Lenovo 4XB7A17080 internal solid state drive 7.68 TB 2.5″ Serial ATA III 3D TLC NAND
- 7.68 TB 2.5″ Serial ATA III
- 95000 IOPS
- 11000 IOPS
- 3D TLC NAND
- 256-bit AES
- S.M.A.R.T. support
- Component for: Server/workstation
The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
This product guide provides essential presales information to understand the 5300 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| Features |
| Certification |
Micron Green StandardBuilt with sulfur resistant resistorsCE (Europe): EN 55032 Class B, RoHSFCC: CFR Title 47, Part 15 Class BUL: UL-60950-1, 2nd EditionBSMI (Taiwan): approval to CNS 13438RCM (Australia, New Zealand): AS/NZS CISPR32 Class BKCC RRL (Korea): approval to KN 32 Class B, KN 35 Class BW.E.E.E.: Compliance with EU WEEE directive 2002/96/EC.TUV (Germany): approval to IEC60950/EN60950VCCI (Japan): 2015-04 Class BIC (Canada): CISPR32 Class B: Canadian ICES-003:2016 |
| Mean time between failures (MTBF) |
3000000 h |
| Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
| Hot-swap |
Yes |
| S.M.A.R.T. support |
Yes |
| Write latency |
650 µs |
| Read latency |
175 µs |
| Random write (4KB) |
11000 IOPS |
| Random read (4KB) |
95000 IOPS |
| Data transfer rate |
6 Gbit/s |
| Security algorithms |
256-bit AES |
| Hardware encryption |
No |
| Component for |
Server/workstation |
| Memory type |
3D TLC NAND |
| NVMe |
No |
| Interface |
Serial ATA III |
| SSD form factor |
2.5″ |
| SSD capacity |
7.68 TB |
| Power |
| Power consumption (write) |
3.9 W |
| Power consumption (read) |
2.5 W |
| Weight & dimensions |
| Weight |
70 g |
| Height |
7 mm |
| Depth |
100 mm |
| Width |
70 mm |
| Operational conditions |
| Non-operating shock |
1500 G |
| Non-operating vibration |
3.13 G |
| Operating relative humidity (H-H) |
5 – 95% |
| Storage temperature (T-T) |
-40 – 85 °C |
| Operating temperature (T-T) |
0 – 70 °C |
