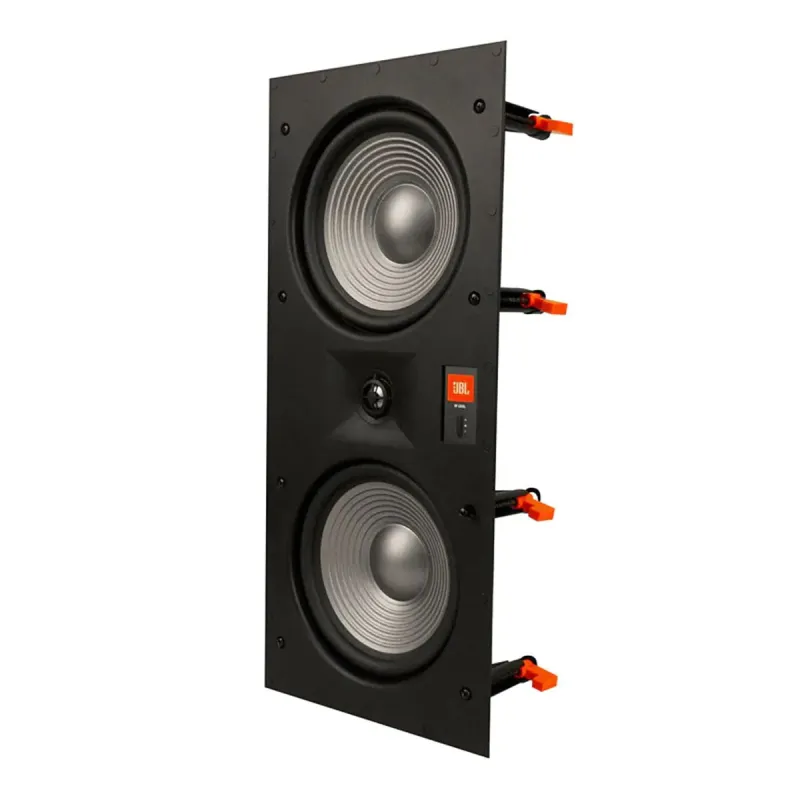

JBL STUDIO 2 88IW In-Wall Loudspeaker,8 inch,Single

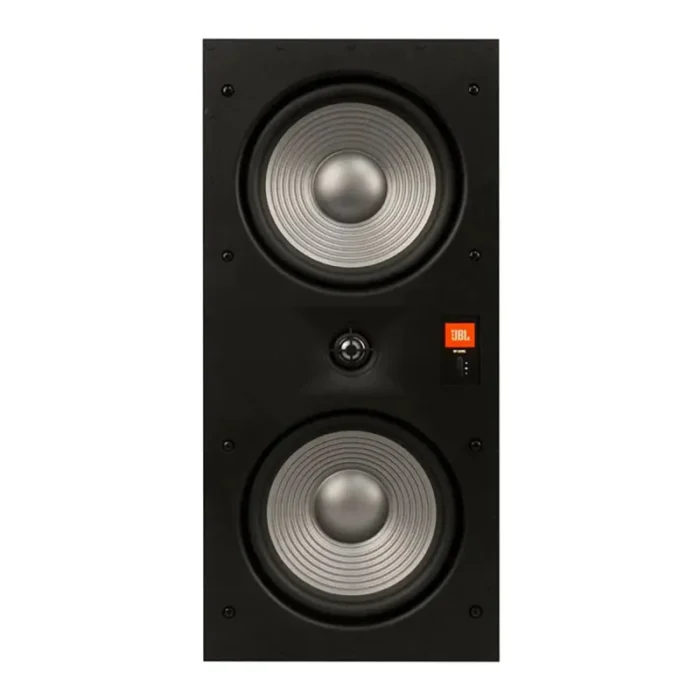

JBL Studio 2 88IW In-Wall LCR Speaker (Each) – Immersive Sound, Sleek Integration
The JBL Studio 2 88IW In-Wall LCR Speaker fills your room with the renowned JBL sound without occupying valuable space. Ideal for home theater systems or high-fidelity music setups, this in-wall speaker blends cutting-edge technology with effortless installation and an unobtrusive design.
Key Features
Exceptional Audio Performance
- 1-Inch CMMD® Lite Tweeter: Combined with a High-Definition Imaging (HDI) waveguide, it delivers wide coverage, low distortion, and precise sound reproduction.
- Dual 8-Inch PolyPlas Cone Woofers: These woofers provide robust and deep bass response, enriching your audio experience.
Advanced Sound Technology
- High-Definition Imaging (HDI) Waveguide: Inspired by JBL’s legendary M2 Master Reference Monitor, this technology ensures optimal driver positioning and network integration for lifelike soundstage imaging throughout the room.
- Pivoting Tweeters: Direct sound exactly where you want it with adjustable tweeters, perfect for high walls or ceilings.
Customizable Audio
- Tweeter Audio Level Adjustment: Tailor high-frequency sounds up to 3dB to suit your room’s acoustics and personal preference, ensuring complete audio immersion.
Elegant Design
- Zero-Bezel Magnetic Grille: A nearly invisible grille that integrates seamlessly into any wall or ceiling, paintable to match any decor. Ideal for both audiophiles and interior designers.

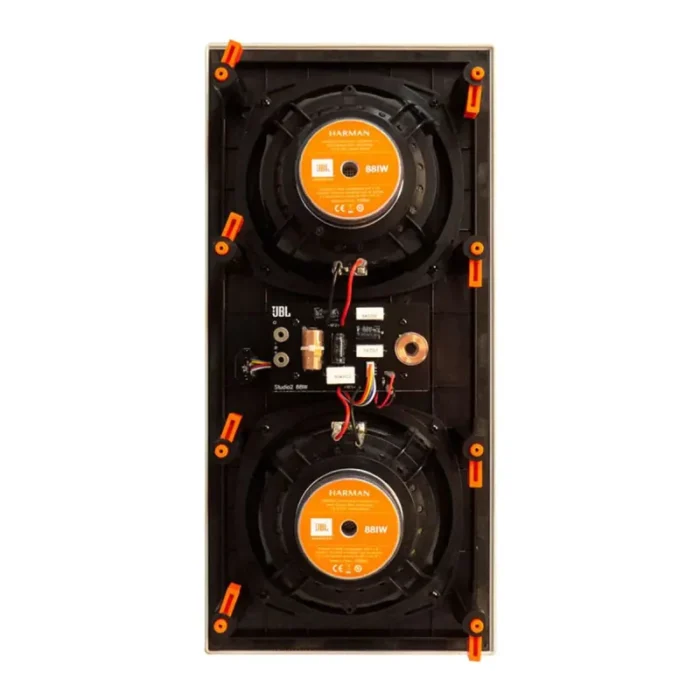

- Superior XL-2 Installation Bracket: Designed for walls up to 2 inches thick, this bracket ensures secure installation with minimal vibration, surpassing typical 1-1/2 inch brackets.
Benefits
- Space-Efficient Design: Enjoy superior sound quality without the clutter of traditional speakers.
- Enhanced Customization: Adjust audio settings for an ideal listening experience tailored to your space.
- Aesthetic Appeal: A sleek design that blends effortlessly into your home’s decor for a high-end, professional look.
Why Choose JBL?
Since 1946, JBL has been a pioneer in the audio industry, trusted by consumers and professionals alike for its high-quality sound systems. The Studio 2 88IW continues this legacy, offering innovative technology and superior design for an unparalleled audio experience.
Commonly Asked Questions
What sets the JBL Studio 2 88IW apart from other in-wall speakers?
The JBL Studio 2 88IW features JBL’s exclusive HDI waveguide technology and a 1-inch CMMD® Lite tweeter for exceptional sound dispersion and clarity. Its dual 8-inch PolyPlas woofers deliver powerful bass, while pivoting tweeters allow for precise audio direction.
How straightforward is the installation process for the JBL Studio 2 88IW?
Installation is designed to be quick and easy with the XL-2 mounting mechanism. The zero-bezel magnetic grille attaches effortlessly, making the speaker nearly invisible once installed.
Can I paint the grille to match my wall color?
Yes, the zero-bezel magnetic grille is fully paintable, allowing it to blend seamlessly into any wall or ceiling.
What types of rooms are best suited for the JBL Studio 2 88IW?
The JBL Studio 2 88IW is perfect for home theaters, living rooms, or any space where you desire high-quality sound without taking up floor or shelf space. Its flexible design and adjustable features make it suitable for a variety of room configurations.
Elevate your home audio experience with the JBL Studio 2 88IW In-Wall LCR Speaker. Enjoy superior sound quality and seamless integration with your home’s decor. Order now and transform your listening experience!
| Feature | Studio 2 6IC | Studio 2 6ICDT | Studio 2 8IC | Studio 2 6IW | Studio 2 8IW | Studio 2 55IW | Studio 2 88IW |
| Impedance: | 8 ohms | 8 ohms | 8 ohms | 8 ohms | 8 ohms | 8 ohms | 8 ohms |
| Recommended Amplifier Power: | 80W | 80W | 100W | 80W | 100W | 120W | 150W |
| Frequency Response: | 38Hz – 20kHz | 38Hz – 20kHz | 30Hz – 20kHz | 38Hz – 20kHz | 30Hz – 20kHz | 40Hz – 20kHz | 30Hz – 20kHz |
| Crossover Frequency: | 2.5kHz | 3.7kHz | 2.1kHz | 3.0kHz | 2.8kHz | 2.7kHz | 2.8kHz |
| Loudspeaker Sensitivity: | 86dB 2.83V @ 1m | 86dB 2.83V @ 1m | 88dB 2.83V @ 1m | 86dB 2.83V @ 1m | 88dB 2.83V @ 1m | 88dB 2.83V @ 1m | 88dB 2.83V @ 1m |
| Low Frequency Driver Size and Material | 6-1/2″ (165mm)Polyplas® Woofer | 6-1/2″ (165mm)Polyplas® Woofer | 8″ (203mm) Polyplas® Woofer | 6-1/2″ (165mm)Polyplas® Woofer | 8″ (203mm) Polyplas® Woofer | Dual 5-1/4″ (133mm) Polyplas® Woofer | 8″ (203mm) Polyplas® Woofer |
| High Frequency Driver Size and Material | 1″ (25mm) Pivoting CMMD® Lite Tweeter | 2 x 3/4″ (19mm) Pivoting CMMD® Lite Tweeter | 1″ (25mm) Pivoting CMMD® Lite Tweeter | 1″ (25mm) Pivoting CMMD® Lite Tweeter | 1″ (25mm) Pivoting CMMD® Lite Tweeter | 1″ (25mm) Pivoting CMMD® Lite Tweeter | 1″ (25mm) Pivoting CMMD® Lite Tweeter |
| High Frequency Control | +/- 3dB | +/- 3dB | +/- 3dB | +/- 3dB | +/- 3dB | +/- 3dB | +/- 3dB |
| Cutout Dimensions: | (D) 8″ (203mm) | (D) 8″ (203mm) | (D) 9-5/8″ (244mm) | (H x W) 9-13/16″ x 7-9/32″(249mm x 185mm) | (H x W) 11-15/16″ x 8-15/16″(303mm x 227mm) | (H x W) 14-1/8″ x 6-13/32″(359mm x 163mm) | (H x W) 20-1/16″ x 9″(510mm x 227mm) |
| Grille Finished Dimensions: | (D) 9-3/32″ (231mm) | (D) 9-3/32″ (231mm) | (D) 10-11/16″ (272mm) | (H x W) 10-7/8″ x 8-11/32″(276mm x 212mm) | (H x W) 13″ x 10″(330mm x 254mm) | (H x W) 15-1/8″ x 7-13/32″(384mm x 188mm) | (H x W) 21-3/16″ x 10″(538mm x 254mm) |
| Mounting Depth: | 4-11/16″ (119mm) | 4-11/16″ (119mm) | 5-13/64″ (132mm) | 3-19/32″ (91mm) | 3-13/16″ (97mm) | 3.0″ (76mm) | 3-13/16″ (96mm) |
| Compatible Wall Material Thickness: | 0.5″ – 2.0″(12mm – 51mm) | 0.5″ – 2.0″(12mm – 51mm) | 0.5″ – 2.0″(12mm – 51mm) | 0.5″ – 2.0″(12mm – 51mm) | 0.5″ – 2.0″(12mm – 51mm) | 0.5″ – 2.0″(12mm – 51mm) | 0.5″ – 2.0″(12mm – 51mm) |
| Shipping Units of Measure: | Each | Each | Each | Each | Each | Each | Each |
| Warranty: | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| Pre-Construction Bracket Part number | PCK6C | PCK6C | PCK8C | PCK6 | PCK8 | PCK55 | – |
| Back Box Part Number | FBB6C | FBB6C | FBB8C | FBB6 | FBB8 | FBB55 | – |
