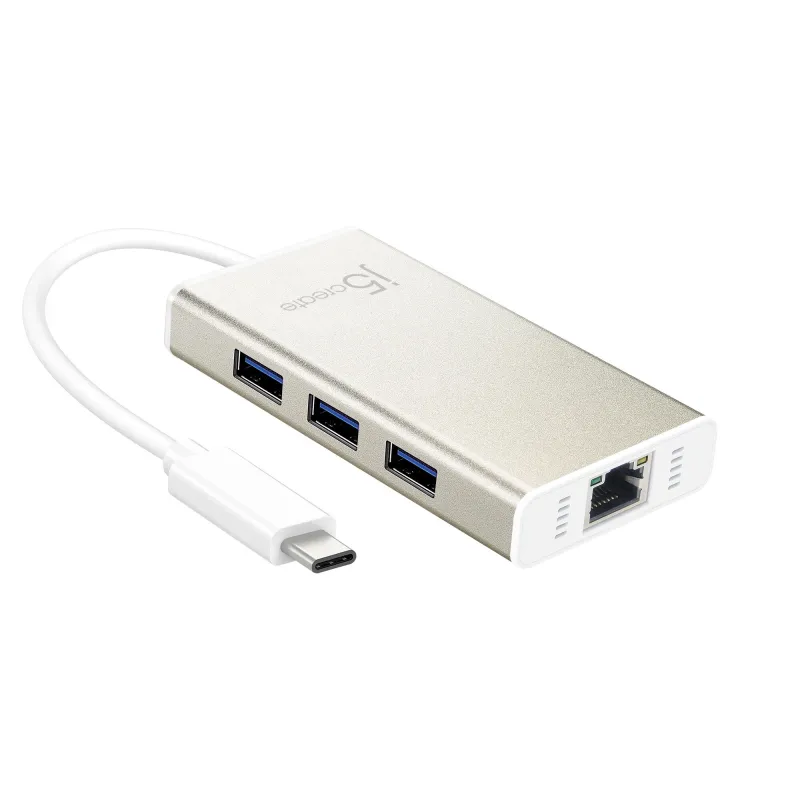

j5create JCH471 USB-C™ Gigabit Ethernet & Hub Multi Adapter, Metallic Champagne
- Gigabit Ethernet and 3-Port HUB over a USB Type-C connection
- 5 Gbps transfer rate
- Aluminum housing
- Compatible with Windows/Mac/Linux/ChromeOS
The JCH471 USB Type-C Gigabit Ethernet & HUB Multi Adapter provides extra connectivity for your computer with 5 Gbps transfer speed. Our pocket-sized multi-adapters allow you to add additional USB computer accessories and Gigabit LAN through your USB Type-C port.
This Gigabit Ethernet adapter allows you to add networking capabilities to a computer that does not have a Wireless LAN connection. It has an RJ-45 connector that supports 10/100/1000 Mbps Ethernet performance, and it is perfect for MacBook Air, Chromebook, and other laptop and desktop computers with a USB-C port.
Fast and portable, this unique adapter gives you Ethernet and USB connections all in one.
| Ports & interfaces | |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | USB Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Supported network protocols | IPv4, IPv6, TCP, UDP, TCP |
| VLAN tagging | Yes |
| Jumbo frames support | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Maximum data transfer rate | 5000 Mbit/s |
| Design | |
|---|---|
| Country of origin | Taiwan |
| LED indicators | Activity, Link |
| Plug and Play | Yes |
| Product colour | Aluminium, White |
| Component for | PC/Laptop |
| Internal | No |
| Power | |
|---|---|
| Power consumption | 450 mA |
| Power consumption (typical) | 2.25 W |
| Output voltage | 5 V |
| System requirements | |
|---|---|
| Other operating systems supported | ChromeOS |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Compatible operating systems | Compatible with Windows®/Mac®/Linux®/Chrome OS™ |
| Weight & dimensions | |
|---|---|
| Weight | 58.2 g |
| Height | 90.6 mm |
| Depth | 18.6 mm |
| Width | 43.8 mm |
| Packaging data | |
|---|---|
| Package weight | 104.5 g |
| Package height | 25 mm |
| Package depth | 95 mm |
| Package width | 145 mm |
| Drivers included | Yes |
| Packaging content | |
|---|---|
| Packaging content | 1 x JCH471 USB-C™ Gigabit Ethernet & HUB Multi Adapter, 1 x Quick Installation Guide, 1 x Driver CD |
| Batteries included | No |
| Quick installation guide | Yes |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Logistics data | |
|---|---|
| Minimum order quantity | 60 pc(s) |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case gross weight | 2.78 kg |
| Master (outer) case height | 180 mm |
| Master (outer) case length | 321 mm |
| Master (outer) case width | 225 mm |
| Shipping (inner) case net weight | 570 g |
| Shipping (inner) case length | 15 cm |
| Shipping (inner) case height | 16 cm |
| Shipping (inner) case width | 10.5 cm |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 570 g |
| Master (outer) case GTIN (EAN/UPC) | 24712795080791 |
| Other features | |
|---|---|
| Contents | 1 x JCH471 USB-C™ Gigabit Ethernet & Hub Multi Adapter, 1 x Quick Installation Guide |
| Cable connection | USB |
| Export Control Classification Number (ECCN) | EAR99 |
| Commodity Classification Automated Tracking System (CCATS) | 8471.80.0000 |
| Cable length | 0.145 m |
| Cable type | USB-C |
| Housing material | Aluminium |
