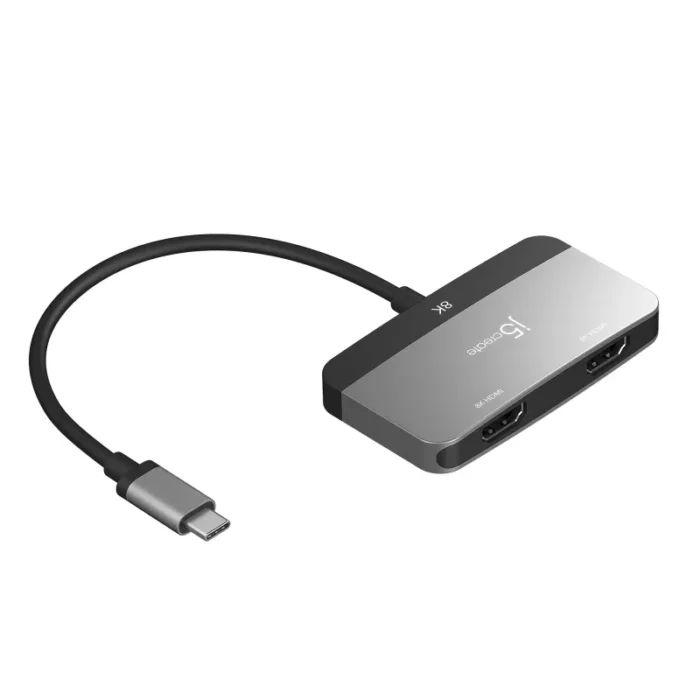

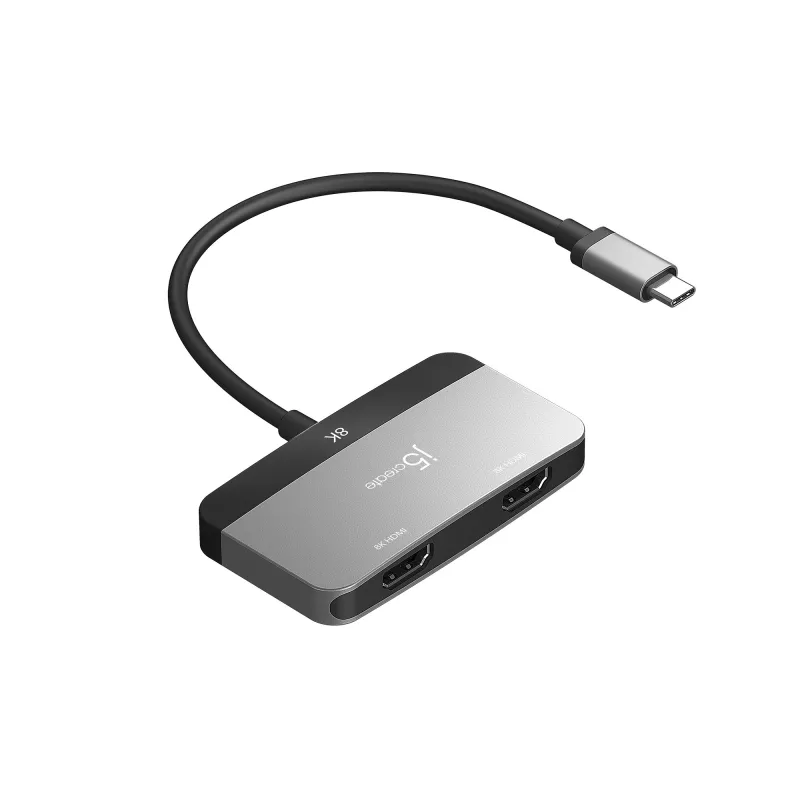

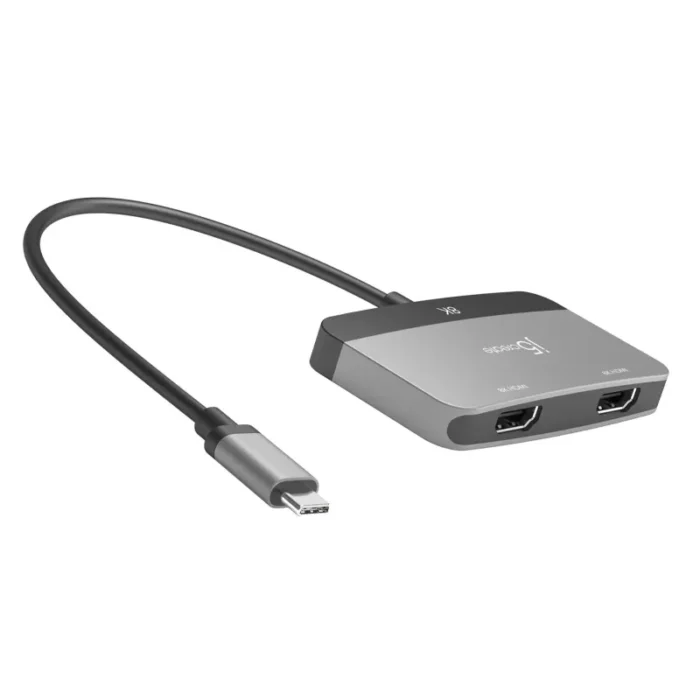

j5create JCA465 – 8K USB-C® to Dual HDMI™ Display Adapter
- This adapter allowing for resolutions up to single 8K or dual 4K for gamers and professionals that need the highest resolution
- Connect a USB-C® port with DP™ 1.4 Alt Mode protocol (backwards compatible with DP™ 1.2 Alt Mode) enabled host devices to get Dual 4K or single 8K video to HDMI™ enabled TVs for display
- Ideal accessory for Windows® laptop computers with a USB-C® port
- No driver installation required
Our 8K USB-C® to Dual HDMI™ Display Adapter allows you to conveniently connect your gaming laptop, Chromebook™, or tablet to Dual 4K60Hz monitors or an 8K 60Hz UHD / 4K 144Hz external monitor, 8K UHDTV, projector and other display device using an HDMI™ input.
This adapter offers the latest USB-C® to HDMI™ connection, letting you connect to two HDMI™ displays to the latest laptops. Also works with Thunderbolt™ 4 and USB4® devices.
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Hub interfaces | HDMI |
| Host interface | USB Type-C |
| Ports quantity | 4 |
| Features | |
|---|---|
| Compatible products | Available USB-C® port that supports DisplayPort™ Alt Mode.GPU and video source must support DisplayPort™ 1.4 with DSC to achieve single 8K @ 60Hz or Dual 4K @ 60Hz resolution. |
| Plug and Play | Yes |
| Number of displays supported | 2 |
| USB Power Delivery (USB PD) | No |
| Product colour | Black, Grey |
| Housing material | Aluminium, Plastic |
| Maximum resolution (HDMI) | 7680 x 4320 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160, 7680 x 4320 |
| Data transfer rate | 0 Mbit/s |
| System requirements | |
|---|---|
| Minimum system requirements | Available USB-C® port that supports DisplayPort™ Alt Mode.GPU and video source must support DisplayPort™ 1.4 with DSC to achieve single 8K @ 60Hz or Dual 4K @ 60Hz resolution.macOS® does not support MST, the displays connected to the JCA465 will only mirror each other. |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 50 g |
| Height | 12 mm |
| Depth | 45 mm |
| Width | 80 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 97 g |
| Package height | 24.8 mm |
| Package depth | 94.9 mm |
| Package width | 145 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Packaging content | 1 – 8K USB-C® to Dual HDMI™ Display Adapter (JCA465)1 – Quick Installation Guide (QIG) |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 85% |
| Storage temperature (T-T) | -10 – 71 °C |
| Operating temperature (T-T) | 0 – 45 °C |
