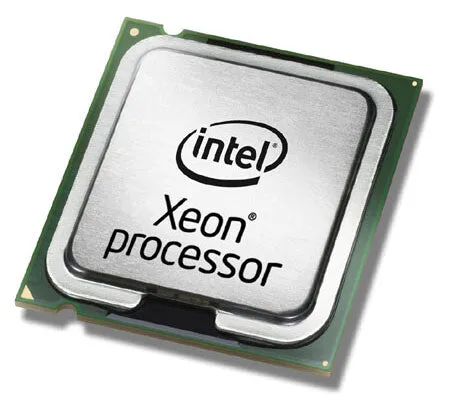

Intel Xeon X5647 processor 2.93 GHz 12 MB Smart Cache
- Intel® Xeon® 5000 Sequence X5647 2.93 GHz
- 12 MB Smart Cache LGA 1366 (Socket B)
- Processor cores: 4 32 nm 64-bit 130 W
- Maximum internal memory supported by processor: 288 GB DDR3-SDRAM
Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor’s frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
| Processor |
| Processor ARK ID |
52580 |
| Processor code |
SLBZ7 |
| Processor codename |
Westmere EP |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Number of QPI links |
2 |
| CPU multiplier (bus/core ratio) |
22 |
| Bus type |
QPI |
| Stepping |
B1 |
| VID Voltage Range |
0.75 – 1.35 V |
| Thermal Design Power (TDP) |
130 W |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Processor boost frequency |
3.2 GHz |
| Processor operating modes |
64-bit |
| System bus rate |
5.86 GT/s |
| Processor threads |
8 |
| Processor series |
Intel Xeon 5600 Series |
| Cooler included |
No |
| Box |
No |
| Processor lithography |
32 nm |
| Processor socket |
LGA 1366 (Socket B) |
| Processor cores |
4 |
| Processor base frequency |
2.93 GHz |
| Processor model |
X5647 |
| Processor family |
Intel® Xeon® 5000 Sequence |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
Yes |
| Memory channels |
Triple-channel |
| Memory types supported by processor |
DDR3-SDRAM |
| Maximum internal memory supported by processor |
288 GB |
| Graphics |
| On-board graphics card |
No |
| Features |
| Commodity Classification Automated Tracking System (CCATS) |
G077159 |
| Export Control Classification Number (ECCN) |
5A992C |
| Embedded options available |
No |
| CPU configuration (max) |
2 |
| Supported instruction sets |
SSE4.2 |
| Market segment |
Server |
| Execute Disable Bit |
Yes |
| Idle States |
Yes |
| Thermal Monitoring Technologies |
No |
| Processor special features |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel 64 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Demand Based Switching |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® Turbo Boost Technology |
1.0 |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| General |
| Product family |
Xeon |
| Operational conditions |
| Tcase |
80.4 °C |
| Maximum operating temperature |
80.4 °C |
| Logistics data |
| Harmonized System (HS) code |
8542310001 |
| Technical details |
| Bus bandwidth |
5.86 |
| Bus type units |
GT/s |
| Processor brand name |
Intel Xeon |
| Last change |
63903513 |
| Product family |
Intel Xeon Processor 5000 Sequence |
| Launch date |
Q1’11 |
| Status |
Discontinued |
| Born on date |
Q1’11 |
| Product name |
Intel Xeon X5647 (12M Cache, 2.93 GHz, 5.86 GT/s Intel QPI) |
| Maximum memory |
288 GB |
| Bus speed |
5.86 GT/s |
| Processor cache |
12288 KB |
| Supported memory types |
DDR3-SDRAM |
| Product type |
Processor |
| Weight & dimensions |
| Processor package size |
42.5mm x 45mm |
| Other features |
| Maximum internal memory |
288 GB |
| Cache memory |
12 MB |
