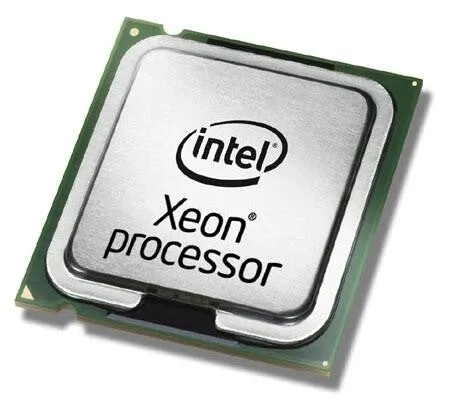

Intel Xeon X5472 processor 3 GHz 12 MB L2
- Intel® Xeon® X5472 3 GHz
- 12 MB L2 LGA 771 (Socket J)
- Processor cores: 4 45 nm 64-bit 120 W
Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
Thermal Monitoring Technologies
Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. An on-die Digital Thermal Sensor (DTS) detects the core’s temperature, and the thermal management features reduce package power consumption and thereby temperature when required in order to remain within normal operating limits
Execute Disable Bit
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.
| Processor |
| Processor ARK ID |
34447 |
| CPU multiplier (bus/core ratio) |
7.5 |
| Bus type |
FSB |
| FSB Parity |
Yes |
| VID Voltage Range |
0.85 – 1.35 V |
| Processor front side bus |
1600 MHz |
| Thermal Design Power (TDP) |
120 W |
| Processor cache type |
L2 |
| Processor cache |
12 MB |
| Processor operating modes |
64-bit |
| Processor threads |
4 |
| Processor series |
Intel Xeon 5400 Series |
| Component for |
Server/workstation |
| Cooler included |
No |
| Box |
No |
| Processor lithography |
45 nm |
| Processor socket |
LGA 771 (Socket J) |
| Processor cores |
4 |
| Processor base frequency |
3 GHz |
| Processor model |
X5472 |
| Processor family |
Intel® Xeon® |
| Processor manufacturer |
Intel |
| Features |
| Commodity Classification Automated Tracking System (CCATS) |
NA |
| Export Control Classification Number (ECCN) |
3A991.A.1 |
| Embedded options available |
No |
| Processing Die size |
214 mm² |
| Number of Processing Die Transistors |
820 M |
| Market segment |
Server |
| Execute Disable Bit |
Yes |
| Idle States |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor special features |
| Intel VT-x with Extended Page Tables (EPT) |
No |
| Intel 64 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Demand Based Switching |
Yes |
| Intel Enhanced Halt State |
Yes |
| Conflict-Free processor |
No |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
| Intel® Turbo Boost Technology |
No |
| Intel Trusted Execution Technology |
No |
| Enhanced Intel SpeedStep Technology |
Yes |
| General |
| Product family |
Xeon |
| Operational conditions |
| Tcase |
63 °C |
| Logistics data |
| Harmonized System (HS) code |
8542310001 |
| Technical details |
| Bus bandwidth |
1600 |
| Bus type units |
MHz |
| Processor brand name |
Intel Xeon |
| Last change |
63903513 |
| Product family |
Intel Xeon Processor 5000 Sequence |
| Launch date |
Q4’07 |
| Status |
Discontinued |
| Bus speed |
1600 MHz |
| Processor cache |
12288 KB |
| Product type |
Processor |
| Weight & dimensions |
| Processor package size |
37.5 x 37.5 mm |
