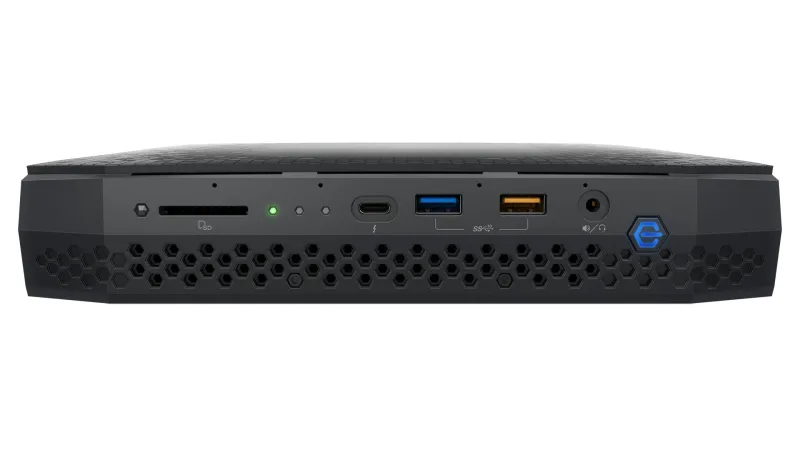

Intel NUC 11 Enthusiast Black i7-1165G7
- Black
- Built-in processor Intel i7-1165G7
- 2 SO-DIMM Maximum internal memory: 64 GB DDR4-SDRAM
- SSD M.2
- On-board graphics card Intel Iris Xe Graphics
- Ethernet LAN Wi-Fi
Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.
Intel® Rapid Storage Technology
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.
Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
| Processor | |
|---|---|
| CPU configuration (max) | 1 |
| Processor cache | 12 MB |
| Processor boost frequency | 4.7 GHz |
| Processor threads | 8 |
| Processor cores | 4 |
| Processor model | i7-1165G7 |
| Processor generation | 11th gen Intel® Core™ i7 |
| Processor family | Intel® Core™ i7 |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Non-ECC | Yes |
| Maximum internal memory | 64 GB |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 3200 MHz |
| Memory bandwidth (max) | 51.2 GB/s |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Compatible memory cards | SDXC |
| Card reader integrated | Yes |
| Number of storage drives supported | 2 |
| Storage drive interface | M.2, Serial ATA III |
| SSD form factor | M.2 |
| Storage drive sizes supported | M.2 |
| Supported storage drive types | SSD |
| Graphics | |
|---|---|
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2060 |
| On-board graphics card model | Intel Iris Xe Graphics |
| Graphics card family | Intel |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| LAN controller | Intel I225-LM |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Number of SATA III connectors | 1 |
| S/PDIF out port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DisplayPort version | 1.4 |
| Mini DisplayPorts quantity | 1 |
| HDMI version | 2.0a |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| Design | |
|---|---|
| ARK ID | 202783 |
| Product type | Mini PC |
| On/off switch | Yes |
| Cooling type | Active |
| Product colour | Black |
| Performance | |
|---|---|
| Audio output channels | 7.1 channels |
| Trusted Platform Module (TPM) | No |
| Processor special features | |
|---|---|
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel Rapid Storage Technology | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Idle States | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® vPro™ Platform Eligibility | No |
| General | |
|---|---|
| Product family | NUC |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Power | |
|---|---|
| Power supply | 150 W |
| Power supply type | External AC adapter |
| Packaging content | |
|---|---|
| Display included | No |
