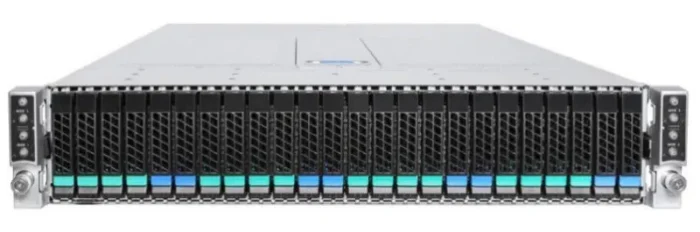

Intel H2224XXLR3 computer case Rack Black, Silver 2130 W
- Rack Server
- Supported HDD sizes: 2.5″
- Number of 2.5″ bays: 24
- Power supply included 2130 W
- Black, Silver
The Intel® Server Chassis H2000G family is ideally suited for high performance computing (HPC) and big data solutions.
For cloud and HPC scenarios, the H2000G Family is also available as part of fully validated Data Center Blocks from Intel. Learn more about how these data center building blocks can help reduce the complexity involved with designing, configuring and validating server solutions.
Cloud and Software-Defined Infrastructure (SDI)
Gain increased access to the private cloud and SDI market with fully-validated, pre-configured server systems featuring the latest Intel® technologies.
High Performance Computing (HPC)
Accelerating growth in the HPC market with unbranded, semi-integrated 1 and 2U rack system options built-to-order for intensive workloads.
| Design |
| LED indicators |
Yes |
| Side window |
No |
| Rack capacity |
2U |
| Rack mounting |
Yes |
| Number of storage drives supported |
24 |
| Number of 2.5″ bays |
24 |
| Product colour |
Black, Silver |
| Type |
Server |
| Form factor |
Rack |
| Power supply |
| Redundant fans |
N |
| Number of power supply units |
2 |
| Redundant power supply (RPS) support |
Yes |
| Power supply |
2130 W |
| Power supply included |
Yes |
| Storage |
| Hot-swap |
Yes |
| Supported HDD sizes |
2.5″ |
| Technical details |
| Status |
Launched |
| Backplanes |
Included |
| Target market |
High Performance Computing |
| Weight & dimensions |
| Weight |
28 kg |
| Height |
87 mm |
| Depth |
438 mm |
| Width |
87.9 mm |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Other features |
| Product codename |
Buchanan Pass |
| Product series |
Intel® Server Chassis H2000P Family |
| Product family |
2U Rack Server Chassis |
| Launch date |
Q3’17 |
| Extended warranty available for purchase (select countries) |
Yes |
| ARK ID |
93502 |
| CPU configuration (max) |
8 |
| Hot-Plug support |
Yes |
| Export Control Classification Number (ECCN) |
4A994 |
| Commodity Classification Automated Tracking System (CCATS) |
NA |
| Thermal Design Power (TDP) |
140 W |
| Backplanes support |
Yes |
| Power supply type |
AC |
| Redundant fans support |
No |
