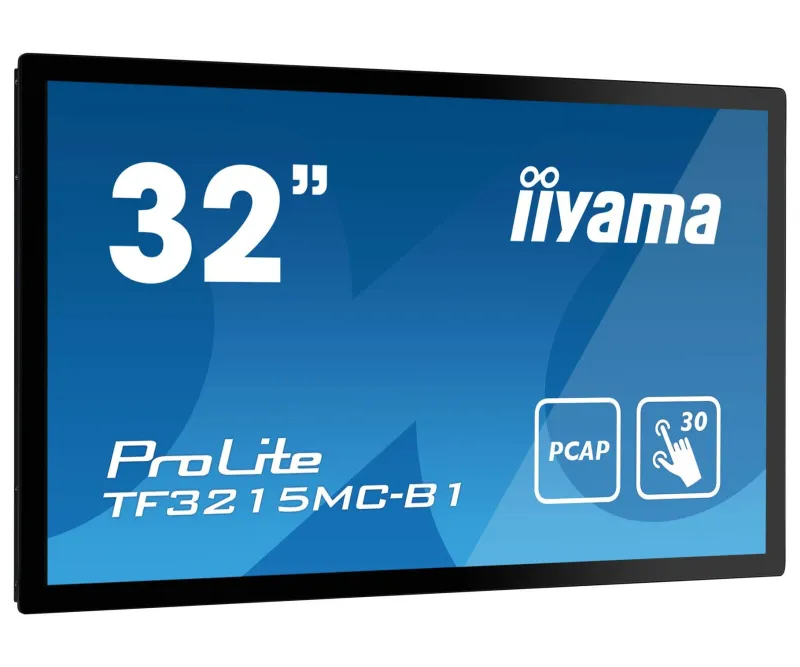

iiyama ProLite TF3215MC-B2 computer monitor 81.3 cm (32″) 1920 x 1080 pixels Full HD LED Touchscreen Kiosk Black
- Touchscreen 81.3 cm (32″) LED VA
- Full HD 1920 x 1080 pixels 16:9
- 8 ms 460 cd/m² 16:9
- F 31 kWh 32 W
The ProLite TF3215MC-B2 with 30-point PCAP touch technology is a open frame monitor with an eye-catching edge-to-edge glass design. Thanks to this completely frame-less glass surface, it guarantees high durability and scratch resistance, making it perfect for kiosk systems and high-traffic public applications. The VA panel technology offers higher contrast and darker blacks.

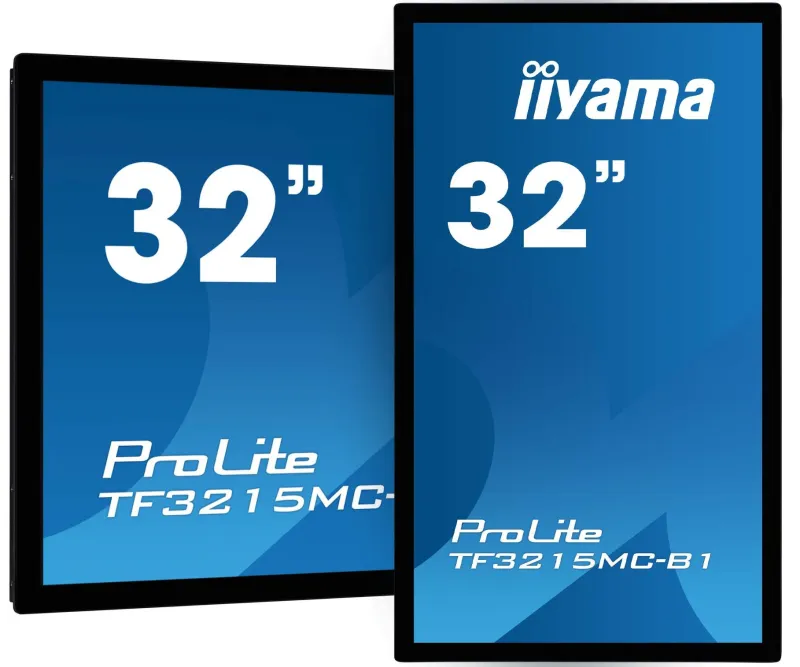

Equipped with a foam seal, the monitor supports seamless integration and the IP65 rating ensures dust and water resistance from the front. Portrait and landscape orientation ensures flexible mounting options for 24/7 operation in almost any installation. The TF3215MC-B2 is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media applications.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
| Display |
| Surface hardness |
7H |
| Display diagonal (metric) |
80 cm |
| Viewable size, vertical |
39.3 cm |
| Viewable size, horizontal |
69.8 cm |
| Vertical scan range |
47 – 63 Hz |
| Horizontal scan range |
30 – 68 kHz |
| Pixel pitch |
0.3637 x 0.3637 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (dynamic) |
3000:1 |
| Contrast ratio (typical) |
16:9 |
| Screen shape |
Flat |
| Response time |
8 ms |
| Display brightness (typical) |
460 cd/m² |
| Display brightness (peak) |
500 cd/m² |
| Number of simultaneous touchpoints |
30 |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Projected capacitive system |
| Touchscreen type |
Kiosk |
| Panel type |
VA |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
81.3 cm (32″) |
| Performance |
| Operating hours (hours/days) |
24/7 |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in camera |
No |
| Built-in speaker(s) |
No |
| Design |
| Glass thickness |
3 mm |
| Housing material |
Metal |
| Product colour |
Black |
| Market positioning |
Office |
| Ports & interfaces |
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| Ergonomics |
| Plug and Play |
Yes |
| Number of OSD languages |
7 |
| On Screen Display (OSD) languages |
German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) |
Yes |
| Cable lock slot |
No |
| Cable management |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
200 x 200 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
466703 |
| Energy efficiency scale |
A to G |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (typical) |
32 W |
| Energy consumption (SDR) per 1000 hours |
31 kWh |
| Energy efficiency class (SDR) |
F |
| Operational conditions |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight (without stand) |
10 kg |
| Height (without stand) |
437 mm |
| Depth (without stand) |
61 mm |
| Width (without stand) |
742.5 mm |
| Packaging data |
| Package weight |
13.3 kg |
| Package height |
630 mm |
| Package depth |
155 mm |
| Package width |
890 mm |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
AC, HDMI, USB |
| General |
| Product family |
ProLite |
| Other features |
| Full HD |
Yes |
| International Protection (IP) code |
IP65 |
