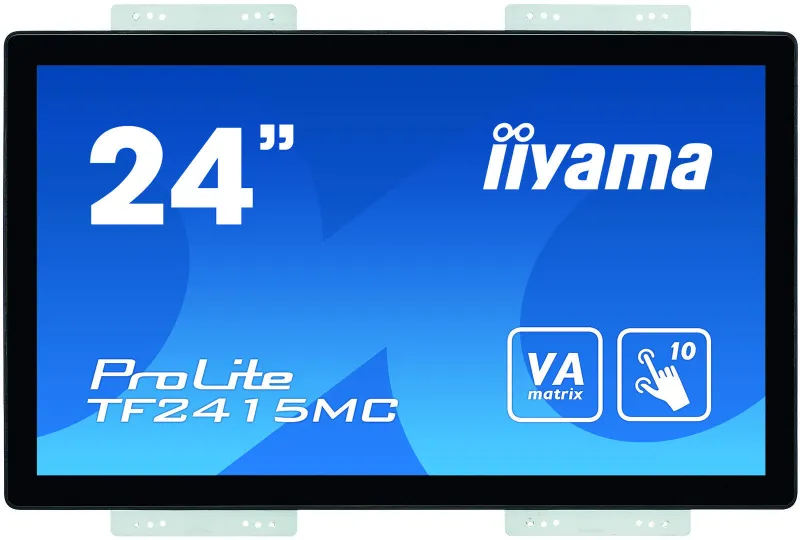

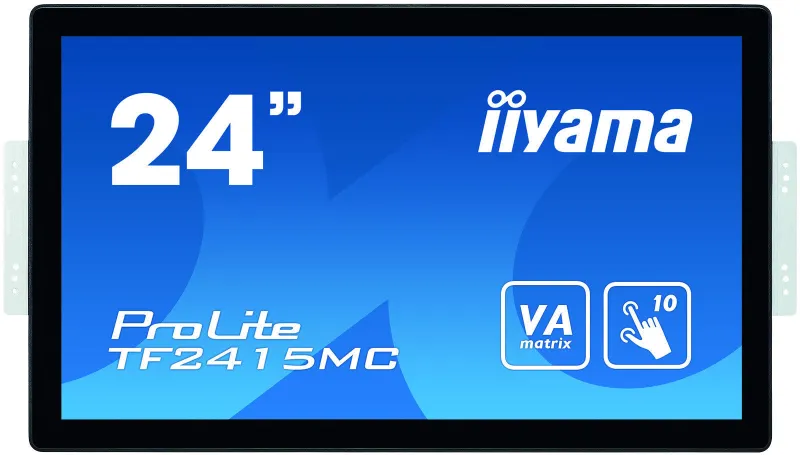

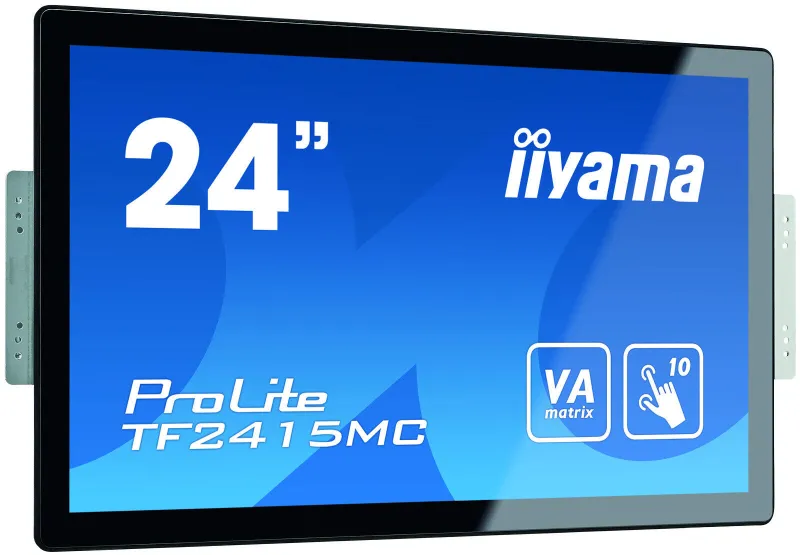

iiyama ProLite TF2415MC-B2 computer monitor 60.5 cm (23.8″) 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black
- Touchscreen 60.5 cm (23.8″) LCD
- Full HD 1920 x 1080 pixels 16:9
- 16 ms 3000:1
- F 22 kWh 25 W
The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
TOUCH TECHNOLOGY – CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
FOAM SEAL
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.
OPEN FRAME BRACKETS
This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
BALL-DROP-TEST PROOF
The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
Display | |
---|---|
Separate H/V sync | Yes |
Display diagonal (metric) | 60.5 cm |
Vertical scan range | 56 – 75 Hz |
Horizontal scan range | 31.4 – 82 kHz |
Pixel pitch | 0.2745 x 0.2745 mm |
Display number of colours | 16.78 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Contrast ratio (typical) | 3000:1 |
Aspect ratio | 16:9 |
Screen shape | Flat |
Response time | 16 ms |
Display brightness | 315 cd/m² |
Number of simultaneous touchpoints | 10 |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Touchscreen type | Multi-user |
HD type | Full HD |
Touchscreen | Yes |
Display technology | LCD |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 60.5 cm (23.8″) |
Performance | |
---|---|
OmniTapps Multitouch compatibility | No |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
Built-in microphone | No |
Built-in camera | No |
Design | |
---|---|
Product colour | Black |
Ports & interfaces | |
---|---|
HDCP | Yes |
Audio output | 1 |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
VGA (D-Sub) ports quantity | 1 |
USB Touch port | Yes |
Ergonomics | |
---|---|
Plug and Play | Yes |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
Wall mountable | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
European Product Registry for Energy Labelling (EPREL) code | 378595 |
Energy efficiency scale | A to G |
Power supply type | DC |
Power consumption (off) | 1.2 W |
Power consumption (standby) | 1.2 W |
Power consumption (typical) | 25 W |
Energy consumption (SDR) per 1000 hours | 22 kWh |
Energy efficiency class (SDR) | F |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 10 – 90% |
Operating relative humidity (H-H) | 20 – 80% |
Storage temperature (T-T) | -20 – 60 °C |
Operating temperature (T-T) | 0 – 40 °C |
Weight & dimensions | |
---|---|
Weight (without stand) | 5.8 kg |
Height (without stand) | 347 mm |
Depth (without stand) | 42.5 mm |
Width (without stand) | 575 mm |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC, DisplayPort, HDMI, USB |
General | |
---|---|
Product family | ProLite |
Other features | |
---|---|
Certification | CB, CE, TÜV-Bauart, CU, cULus |
Placement supported | Horizontal/Vertical |
Glass protection | Yes |
Display viewable area (HxV) | 527.04 x 296.46 mm |
Full HD | Yes |
AC adapter included | Yes |
International Protection (IP) code | IP65 |
Logistics data | |
---|---|
Harmonized System (HS) code | 85285210 |
