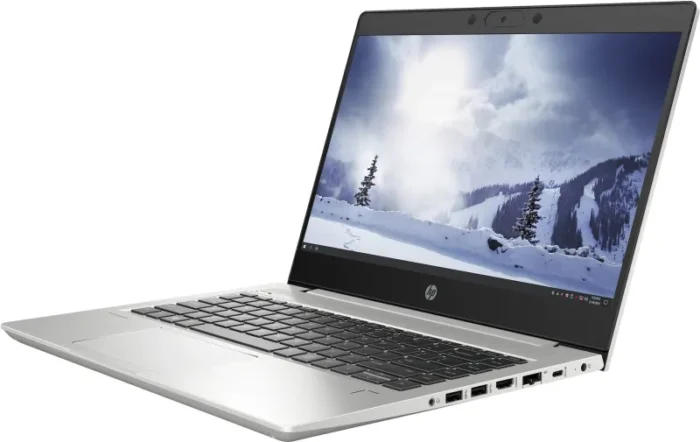

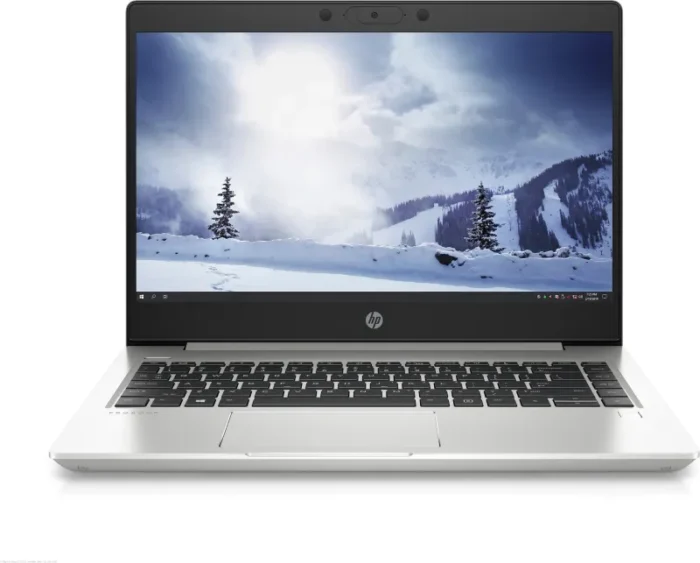

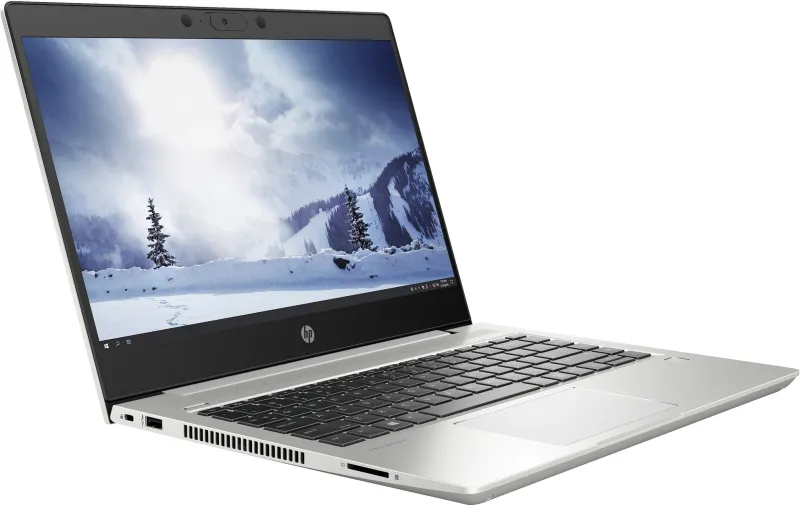

HP Mobile Thin Client mt22 Intel® Celeron® 5205U 35.6 cm (14″) Full HD 8 GB DDR4-SDRAM 128 GB SSD Wi-Fi 5 (802.11ac) Windows 10 IoT Enterprise Silver
- Intel® Celeron® 5205U (1.9 GHz base frequency, 2 MB L2 cache, 2 cores)
- Windows 10 IoT Enterprise for Thin Clients
- 35.6 cm (14″) diagonal, FHD (1920 x 1080), IPS, anti-glare, 250 nits, 45% NTSC
- Intel® UHD Graphics
Secure, stylish, and affordable cloud[1] productivity
Get everything you need to work in the cloud[1] with the HP mt22 Mobile Thin Client. It has essential performance features for daily multi-tasking, trusted security, and a sleek, durable aesthetic.
| Design |
| Country of origin |
China |
| Intel® vPro™ Platform Eligibility |
No |
| Form factor |
Clamshell |
| Product colour |
Silver |
| Product type |
Mobile thin client |
| Display |
| Display diagonal (metric) |
35.6 cm |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Display brightness |
250 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
35.6 cm (14″) |
| Processor |
| Maximum number of PCI Express lanes |
12 |
| PCI Express slots version |
2.0 |
| PCI Express configurations |
1×4, 2×2, 1×2+2×1, 4×1 |
| Tjunction |
100 °C |
| Configurable TDP-down |
12.5 W |
| Configurable TDP-down frequency |
0.8 GHz |
| Thermal Design Power (TDP) |
15 W |
| Processor codename |
Comet Lake |
| Processor operating modes |
64-bit |
| Processor lithography |
14 nm |
| Processor socket |
BGA 1528 |
| Processor cache type |
L2 |
| Processor cache |
2 MB |
| System bus rate |
4 GT/s |
| Processor frequency |
1.9 GHz |
| Processor threads |
4 |
| Processor cores |
2 |
| Processor model |
5205U |
| Processor family |
Intel® Celeron® |
| Processor manufacturer |
Intel |
| Memory |
| Number of free internal memory expansion slots |
2 |
| ECC |
No |
| Maximum internal memory |
8 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 4 GB |
| Memory clock speed |
2400 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Compatible memory cards |
SD, SDHC, SDXC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
SATA III |
| SSD memory type |
TLC |
| SSD capacity |
128 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
128 GB |
| Storage media |
SSD |
| Total storage capacity |
128 GB |
| Graphics |
| On-board graphics card OpenGL version |
4.5 |
| On-board graphics card DirectX version |
12.0 |
| On-board graphics card base frequency |
300 MHz |
| Maximum on-board graphics card memory |
32 GB |
| On-board graphics card dynamic frequency (max) |
900 MHz |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of built-in speakers |
2 |
| Camera |
| Front camera HD type |
HD |
| Front camera signal format |
720p |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller model |
Intel Dual Band Wireless-AC 9560 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Mobile network connection |
No |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| HDMI version |
1.4b |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Keyboard |
| Keyboard special features |
Minor spill-resistant |
| Input device model |
HP Premium Keyboard |
| Full-size keyboard |
Yes |
| Spill-resistant keyboard |
Yes |
| Island-style keyboard |
Yes |
| Numeric keypad |
No |
| Pointing device |
Clickpad |
| Software |
| Operating system installed |
Windows 10 IoT Enterprise |
| Processor special features |
| CPU configuration (max) |
1 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel TSX-NI |
No |
| Intel 64 |
Yes |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
| Intel® Turbo Boost Technology |
No |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Processor package size |
46 x 24 mm |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Processor ARK ID |
197890 |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Supported instruction sets |
SSE4.1, SSE4.2 |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Brand-specific features |
| HP segment |
Business |
| HP Software provided |
HP Device Manager, HP Write Manager, HP Thin Update, HP Easy Shell |
| HP speaker type |
HP Dual Speakers |
| Battery |
| Battery capacity |
45 Wh |
| Number of battery cells |
3 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Security |
| Fingerprint reader |
Yes |
| Sustainability |
| Sustainable technologies and materials |
Low halogen; TCO 5.0 Certified |
| Weight & dimensions |
| Height |
18 mm |
| Depth |
237.7 mm |
| Width |
324.2 mm |
| Weight |
1.6 kg |
| General |
| Product family |
Mobile Thin Client |
| Logistics data |
| Harmonized System (HS) code |
84713000 |
