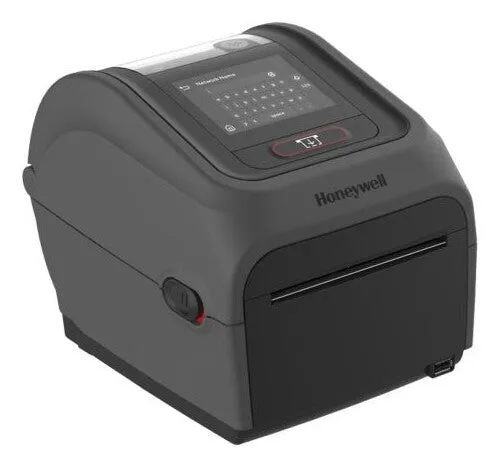

Honeywell PC45D label printer Direct thermal 203 x 203 DPI Wired Ethernet LAN
- Direct thermal
- 203 x 203 DPI
- Maximum printing width: 10.8 cm
- Built-in barcodes: QR Code
- Connectivity technology: Wired
- USB port Ethernet LAN
- Display: LCD 8.89 cm (3.5″) 320 x 240 pixels Colour display Backlight display
- 1.8 kg
The PC45D direct thermal desktop printer brings powerful performance, reliable connectivity, and easy integration in a compact design to tackle rapidly changing everyday work environments.
PC45D 4-inch direct thermal printer offers a large touch screen, enterprise-level ruggedness, and multiple new design accessories to support various needs. The PC45 is designed for businesses that invest in solutions and want a durable, stable, secure platform to implement them.
Honeywell Printer Edge™ platform provides a centralized management system for your printer network. Allowing real-time visibility, automated software updates, and enhanced security. This efficient and cost effective solution for businesses looking to optimize printer operations, Honeywell Printer Edge streamlines workflows and helps reduce downtime, making it easier for you to manage costs.
Get connected and stay connected with Wi-Fi 5 and Bluetooth 5.1 LE for continuous productivity. Benefit from WLAN and optional WWAN connectivity for fast data capture allowing for accelerated deployments. With optional low media and low ribbon enabled sensor and RFID, take the guesswork out printer maintenance to avoid unnecessary operational downtime.
Whether on a local server or utilizing the Cloud, the PC45 supports variable network protocols and multiple print languages allowing for easy integration and a seamless transition. Smart Parse technology from Honeywell gives the ability to resize objects, barcodes, or font type without any need to get in on the system backend. Honeywell Operational Intelligence takes it one step further providing remote management capabilities for real-time diagnostics and output performance tracking.
Printing | |
---|---|
Printing characters | 2D barcode |
Minimum print length | 6.35 mm |
Maximum printing width | 10.8 cm |
Print speed | 8 lpm |
Maximum resolution | 203 x 203 DPI |
Print technology | Direct thermal |
Paper handling | |
---|---|
Maximum media length | 6.35 mm |
Media thickness | 0.05 – 0.16 mm |
Maximum label width | 11.8 cm |
Maximum roll diameter | 12.7 cm |
Ports & interfaces | |
---|---|
RS-232 ports | 1 |
USB port | Yes |
Bluetooth | No |
Wi-Fi | No |
Ethernet LAN | Yes |
Connectivity technology | Wired |
Performance | |
---|---|
Security algorithms | LEAP, PEAP, TLS, TTLS, WEP, WPA, WPA2, WPA3 |
Built-in RFID module | Yes |
Built-in barcodes | QR Code |
Flash memory | 512 MB |
Internal memory | 256 MB |
Page description languages | DPL, IPL, PDF, XML, ZPL II |
Design | |
---|---|
Control type | Buttons |
Backlight display | Yes |
Colour display | Yes |
Display resolution | 320 x 240 pixels |
Display diagonal | 8.89 cm (3.5″) |
Display | LCD |
Built-in display | Yes |
Product colour | Black |
Power | |
---|---|
AC adapter output current | 3.15 A |
AC adapter output voltage | 24 V |
AC input frequency | 50 – 60 Hz |
AC input voltage | 100 – 240 V |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 – 45 °C |
Storage temperature (T-T) | -20 – 90 °C |
Storage relative humidity (H-H) | 10 – 90% |
Weight & dimensions | |
---|---|
Weight | 1.8 kg |
Height | 215.6 mm |
Depth | 168 mm |
Width | 181.3 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | ENERGY STAR |
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
