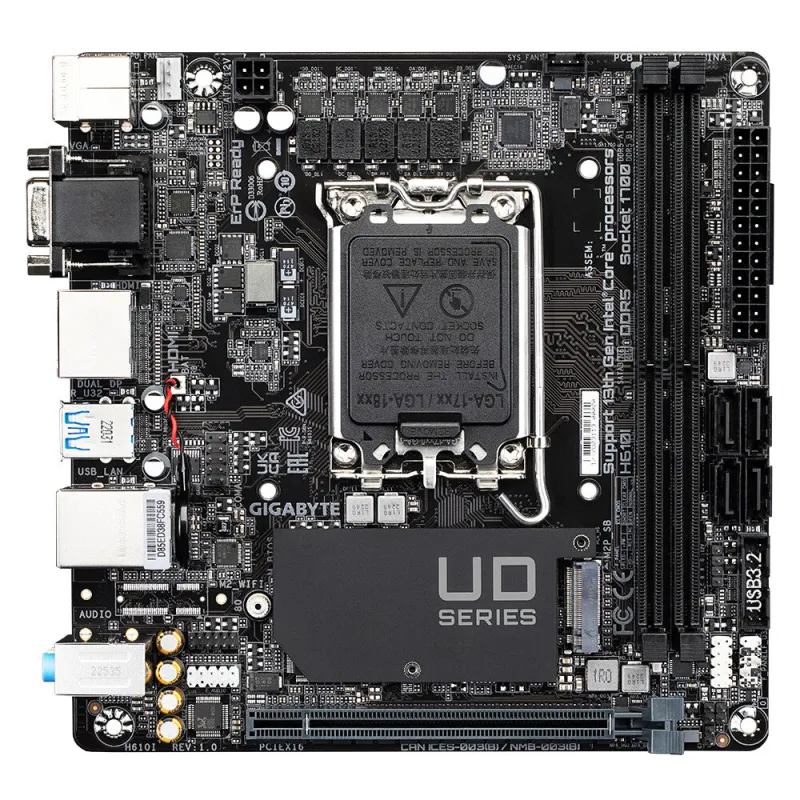

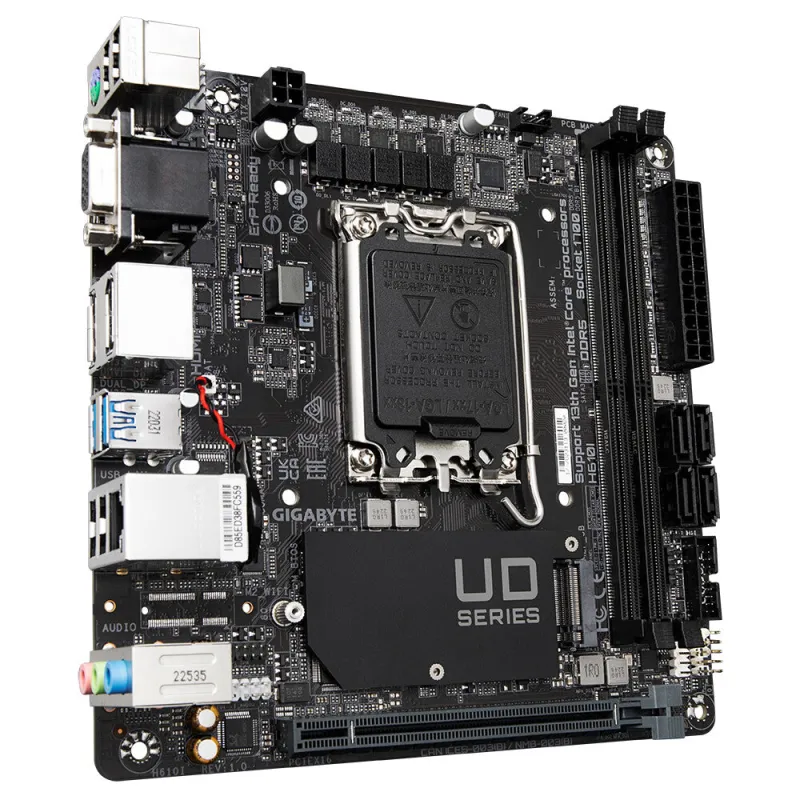

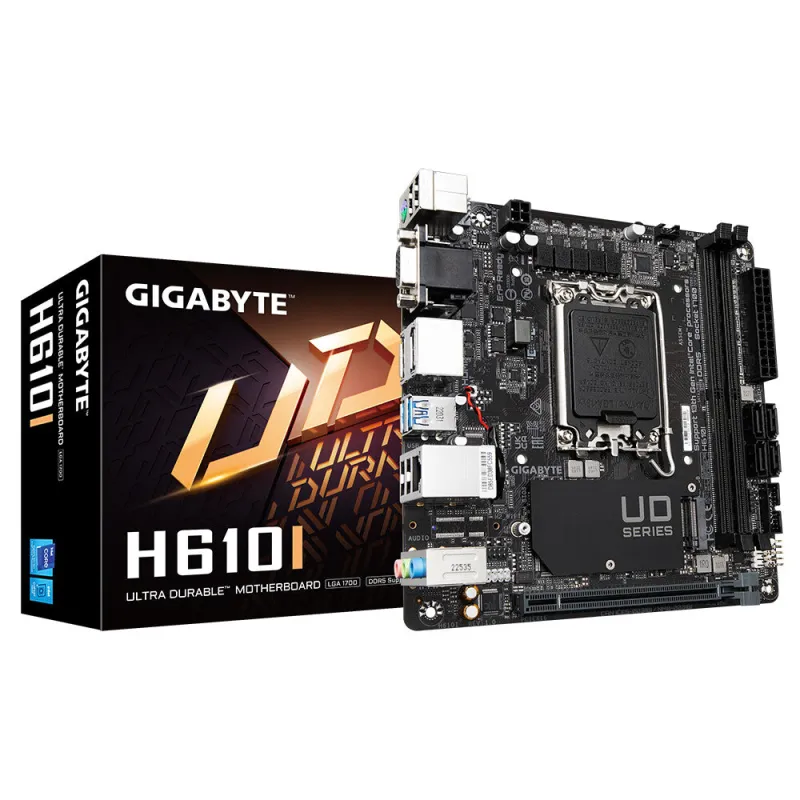

GIGABYTE H610I Motherboard – Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Processor |
| Maximum internal memory supported by processor |
64 GB |
| Supported processor sockets |
LGA 1700 |
| Compatible processor series |
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
| Unbuffered memory |
Yes |
| Supported memory module capacities |
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Maximum internal memory |
64 GB |
| Supported memory clock speed (max) |
5600 MHz |
| Supported memory clock speeds |
5600, 5200, 4800, 4400 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| Number of storage drives supported |
5 |
| Number of HDDs supported |
1 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| HDCP |
Yes |
| Maximum resolution |
4096 x 2304 pixels |
| Graphics card |
HD Graphics |
| Graphics card family |
Intel |
| Parallel processing technology support |
Not supported |
| Internal I/O |
| RGB LED pin header |
Yes |
| Serial port headers |
1 |
| TPM connector |
Yes |
| 12V power connector |
Yes |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
2 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
1 |
| Rear panel I/O ports |
| USB connector type |
USB Type-A |
| Microphone in |
Yes |
| Headphone outputs |
3 |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
2 |
| HDMI version |
2.0 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Network |
| Wi-Fi |
No |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Cooling type |
Active |
| Power source type |
ATX |
| PC health monitoring |
Fan, Temperature, Voltage |
| Product colour |
Black |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC897 |
| Motherboard chipset |
Intel H610 Express |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
mini ITX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
1 |
| PCI Express x16 slots |
1 |
| BIOS |
| System Management BIOS (SMBIOS) version |
2.7 |
| Desktop Management Interface (DMI) version |
2.7 |
| Clear CMOS button |
Yes |
| Clear CMOS jumper |
Yes |
| ACPI version |
5.0 |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Battery |
| Battery type |
CR2032 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells |
1 |
| Battery weight |
3 g |
| Lithium weight per battery |
0.07 g |
| Packaging data |
| Package weight |
590 g |
| Package height |
65 mm |
| Package depth |
180 mm |
| Package width |
222 mm |
| Logistics data |
| Country of origin |
China |
| Products per shipping (inner) case |
1 pc(s) |
| Weight & dimensions |
| Height |
35 mm |
| Depth |
170 mm |
| Width |
170 mm |
| Packaging content |
| Bundled software |
Norton Internet Security (OEM version), LAN bandwidth management software |
| Batteries included |
Yes |
| Cables included |
SATA |
| Technical details |
| Warranty period |
3 year(s) |
