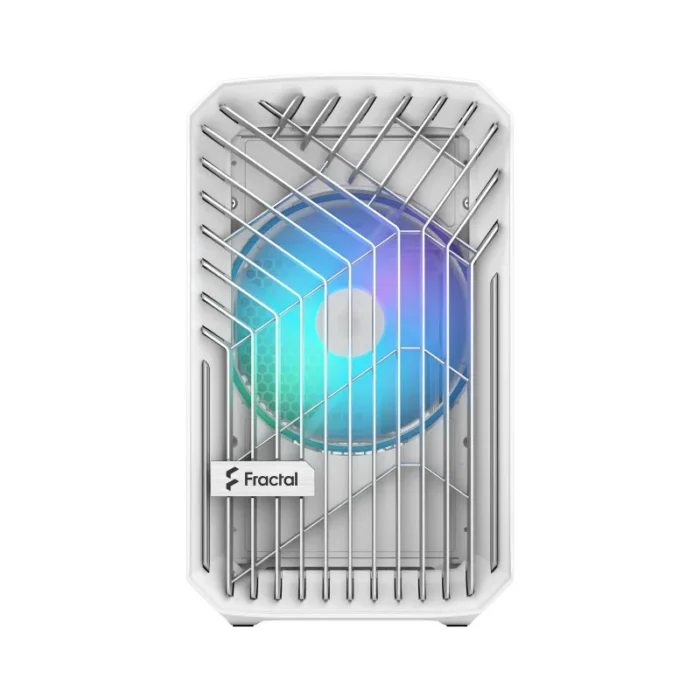

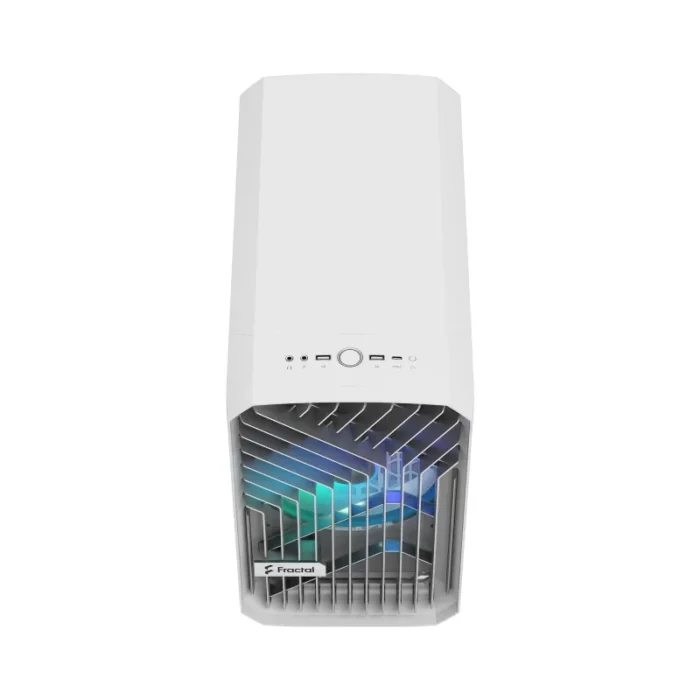

Fractal Design Torrent Nano White
- Open grille and 180 mm front fan optimized for maximum air intake
- Fractal Design 180 x 38 mm fan leverages power, size, and thickness for massive air-moving capacity
- Space optimized, yet still capable of handling up to 3-slot thick 335 mm long GPUs
The Torrent Nano is built to maximize cooling potential straight out of the box. Main standouts include an unobstructed base intake, an open front grille and one of our 180 x 38 mm Dynamic PWM fans (Prisma for RGB version) custom-made to achieve maximum air cooling while maintaining controlled noise levels.
Top-tier airflow
– The included Fractal Design 180 x 38 mm fan leverages power, size, and thickness for massive air-moving capacity
– Front fan brackets allow for unblocked airflow to the larger fan while catering to standard radiator sizes
– Dust filters for front and bottom easily accessible by removing the front
Streamlined inside and out
Open interior and a top mounted PSU provides plenty of breathing room for components
Quick start, clean finish
– Removable top bezel and routing clips with cable ties make for easy installation and cable management
– A sturdy, vibration-damped drive tray supporting a single HDD or dual SSDs with two optional mounting positions
– A dedicated SSD bracket with room for 2x 2.5” drives included
Transparently easy
– Seamless tempered glass panels (TG versions) with bolt-free top-latching mechanisms for easy handling
– Top mounted aerodynamic PSU shroud with integrated ARGB effects (ARGB strip only available on TG and RGB versions)
– LED lights (TG versions) and RGB fans (RGB version) are fully controllable through motherboards supporting addressable RGB (5V)
Included GPU support bracket
Helps your GPU stay level (user assembled, instructions included)
With flexibility in focus
– Space optimized, yet still capable of handling up to 3-slot thick 335 mm long GPUs
– Integrated support for a water-cooling reservoir on the motherboard tray
– Comes with included GPU support bracket that helps your GPU stay level
| Design | |
|---|---|
| Maximum PSU length | 20 cm |
| Maximum graphics card length | 33.5 cm |
| Maximum CPU cooler height | 16.5 cm |
| On/off button | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Illumination location | Case fans |
| Illumination colour | Multi |
| Illumination | Yes |
| Side window | Yes |
| Number of expansion slots | 3 |
| Number of 2.5″ bays | 2 |
| Number of 3.5″ bays | 1 |
| Supported motherboard form factors | Mini-DTX, Mini-ITX |
| Product colour | White |
| Material | Steel, Tempered glass |
| Type | PC |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Rear radiator sizes supported | 120 mm |
| Bottom radiator sizes supported | 120,140,180,240,280 mm |
| Front radiator sizes supported | 60,120,140,200,240 mm |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140,180 mm |
| Number of front fans supported (max) | 2 |
| Front fans installed | 1x 180 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5″ |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 5.8 kg |
| Height | 374 mm |
| Depth | 417 mm |
| Width | 222 mm |
| Packaging data | |
|---|---|
| Package weight | 7.5 kg |
| Package height | 538 mm |
| Package depth | 446 mm |
| Package width | 300 mm |
