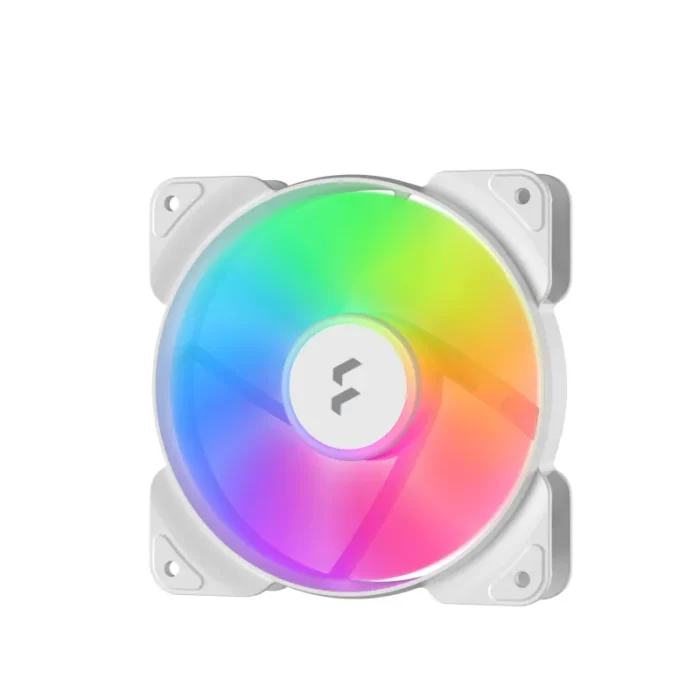

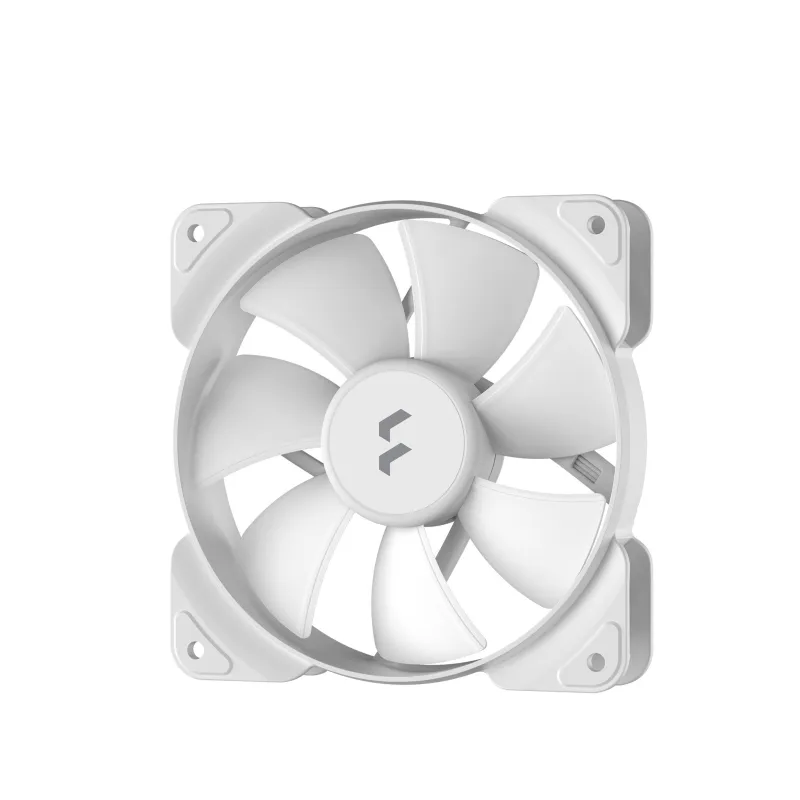

Fractal Design Aspect 12 RGB PWM Computer case Fan 12 cm White 1 pc(s)
- Less turbulence thanks to aerodynamic stator struts
- 6 individually addressable hub-mounted RGB LEDs
- PWM control with a wide RPM speed range
In living color
– Let your system shine with six individually addressable hub-mounted RGB LEDs
– The aerodynamic stator struts decrease turbulence and noise caused by flowing air
– The Aspect frame offers aesthetics without compromising on performance
Extensive support
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Rifle bearings
More efficient than standard sleeve bearings
Trip Wire Technology
Introducing a micro-turbulent layer for enhanced blade efficiency
Chain feature
Simplify cable management by using the Aspect chain feature for multiple units
Performance |
Fan’s mean time to failure (MTTF) |
90000 h |
Quantity per pack |
1 pc(s) |
Bearing type |
Rifle bearing |
Pulse-width modulation (PWM) support |
Yes |
Maximum air pressure |
2.34 mmH2O |
Minimum air pressure |
0.23 mmH2O |
Airflow |
95.1 m³/h |
Maximum airflow |
56 cfm |
Minimum airflow (imperial) |
13 cfm |
Noise level (high speed) |
33.2 dB |
Noise level (low speed) |
10 dB |
Rotational speed (max) |
2000 RPM |
Rotational speed (min) |
500 RPM |
Fan diameter |
12 cm |
Type |
Fan |
Suitable location |
Computer case |
Design |
Fan connector |
4-pin |
Illumination colour |
Multi |
Number of LEDs |
6 |
Illumination LED |
Yes |
Number of fan blades |
7 |
Number of fans |
1 fan(s) |
Product colour |
White |
Power |
LED power consumption (fan) |
1.5 W |
LED voltage |
5 V |
Fan voltage |
12 V |
Fan current |
0.37 A |
Fan power consumption |
1.68 W |
Starting voltage |
7 V |
Weight & dimensions |
Package weight |
155 g |
Package height |
192 mm |
Package depth |
30 mm |
Package width |
123 mm |
Cable length |
0.5 m |
Fan weight |
135 g |
Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
General |
Product family |
Aspect |
Packaging content |
Number of screws |
4 |
Screws included |
Yes |
Logistics data |
Harmonized System (HS) code |
84733080 |
