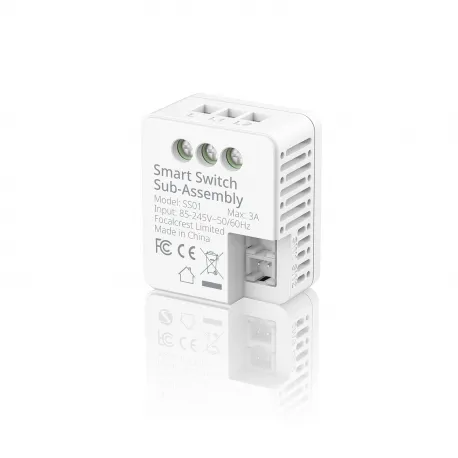

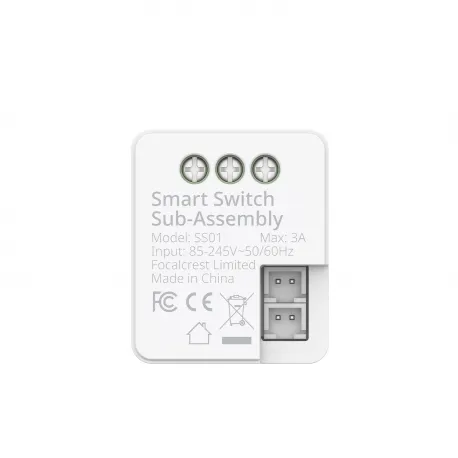

EVVR Smart Switch
Smart Switch Sub-Assembly is an optional component of the In-Wall Relay Switch when they are used together. The Smart Switch Sub-Assembly is designed to allow mechanical switch panels to work with switch commands from the ZigBee network. For example, after turning off the lights with a mechanical switch panel, you can turn on the lights through Zigbee network commands.
One Smart Relay can be connected to one or a series Smart Switch Sub-Assembly (multiple point control).
One Smart Switch Sub-Assembly can be connected to two circuits of loads, each of which must use one Smart Relay.
• Two input interfaces, support to connect to two buttons.
• Dimension: 33.5 x 28.2 x 17.3mm
• Input Voltage: AC 85V~245V
• Min. Load Power: 0
• Max. Load power: AC 110V/300W; AC 220V/600W
• Temperature: Operating：0~40°C; Storage：-20~85℃;
• Support switch panel type: Toggle, Momentary;
• Weight: 19g
Download:
Smart Switch User Manual
