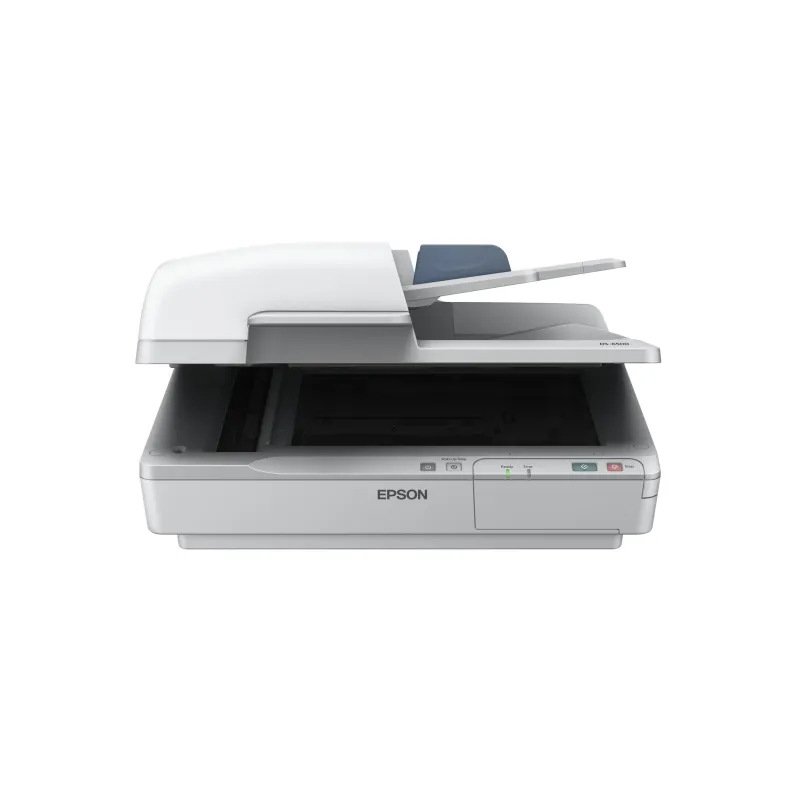

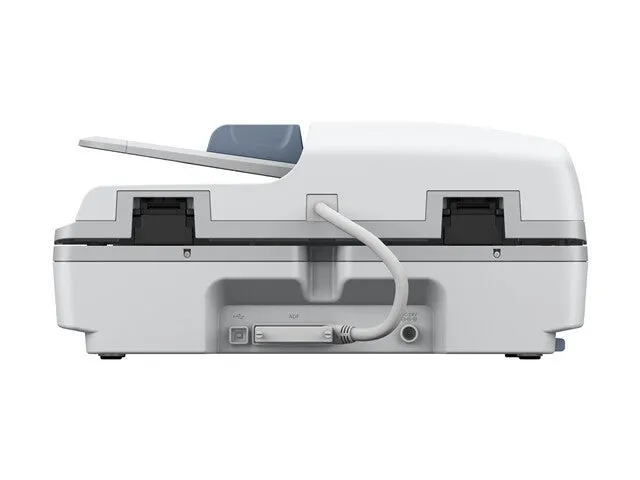

Epson WorkForce DS-7500 Flatbed & ADF scanner 1200 x 1200 DPI A4 White
- High-speed scanner: Up to 40ppm/80ipm
- High capacity ADF: 100-page ADF
- Hassle-free: Double Feed Detection
- Network capable: Optional Network Interface Panel
- Eco-friendly: ENERGY STAR-qualified *1
The Epson WorkForce DS-7500 can handle large batches of documents in a single go, quickly and efficiently. With a scanning speed up to 40ppm/80ipm, this departmental scanner ensures fast and trouble-free scanning due to a 100-page ADF, one-pass duplex scanning, and Double Feed Detection.
Epson Document Capture Pro makes it easy to integrate high-speed scanning into your document management system, speeding up workflow and enabling users to capture, convert and distribute scanned information in virtually any document repository or document management system.
The scanner and its features can be shared between multiple users using the optional Network Interface Panel. Combined with Document Capture Pro, the Network Interface Panel allows users to benefit from Push Scan features and customise ‘scan to’ job functions, such as ‘scan to email’ or ‘scan to Microsoft SharePoint®’, among others*2. You can also benefit from its optional Push Scan features to increase productivity. These features enable complicated tasks to be carried out effortlessly, increasing users’ acceptance and eliminating training requirements.
Epson ReadyScan LED technology eradicates warm-up time, guarantees an absence of mercury, and lowers power consumption. These elements, combined with an ENERGY STAR qualification*1, create an environment friendly device for your office workspace.
| Scanning | |
|---|---|
| ADF scan speed (colour, A4) | 40 ppm |
| ADF scan speed (b/w, A4) | 40 ppm |
| Output colour depth | 24 bit |
| Input colour depth | 48 bit |
| Duplex scanning | Yes |
| Colour scanning | Yes |
| Optical scanning resolution | 1200 x 1200 DPI |
| Maximum scan size | 216 x 1016 mm |
| Design | |
|---|---|
| Touchscreen | No |
| Display | LCD |
| Product colour | White |
| Built-in display | No |
| Scanner type | Flatbed & ADF scanner |
| Performance | |
|---|---|
| Scan drivers | ISIS, TWAIN, WIA |
| Scan to | E-mail, FTP |
| Daily duty cycle (max) | 4000 pages |
| Scan file formats | JPG, PDF, TIFF |
| Light source | ReadyScan LED |
| Sensor type | CCD |
| Paper handling | |
|---|---|
| Legal | Yes |
| Letter | Yes |
| ISO B-series sizes (B0…B9) | B5 |
| ISO A-series sizes (A0…A9) | A4, A5, A6 |
| Scanning media types supported | Plain paper |
| Maximum ISO A-series paper size | A4 |
| Network | |
|---|---|
| Supported network protocols | TCP/IP, DHCP, DNS, SNMP, SLP, IPv6 |
| Ethernet LAN | Yes |
| Power | |
|---|---|
| Input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption (standby) | 4.8 W |
| Power supply type | AC |
| Power consumption (typical) | 49 W |
| Weight & dimensions | |
|---|---|
| Weight | 10.3 kg |
| Height | 217 mm |
| Depth | 360 mm |
| Width | 495 mm |
| Packaging data | |
|---|---|
| Package weight | 12.46 g |
| Package height | 496 mm |
| Package depth | 586 mm |
| Package width | 316 mm |
| Quantity per pack | 1 pc(s) |
| General | |
|---|---|
| Product family | WorkForce |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 85% |
| Operating relative humidity (H-H) | 10 – 80% |
| Storage temperature (T-T) | -25 – 60 °C |
| Operating temperature (T-T) | 5 – 35 °C |
| Logistics data | |
|---|---|
| Country of origin | China |
