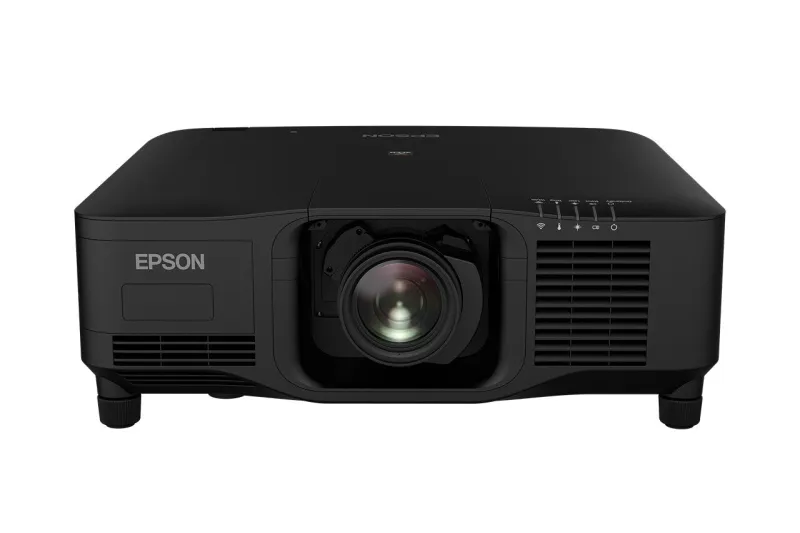

Epson EB-PQ2220B 20000 ANSI lumens 3LCD UHD 4K (3840×2160) Black
- Patented 4K and imaging technology Outstanding 4K image quality delivers superb immersivity
- Ultra-compact and lightweight The world’s smallest and lightest 20,000lm 4K projector
- Cross-platform lens compatibility Lets you build the optimal projection solution for every requirement
- Fit-and-forget reliability Filter-free design and IP5X dust resistance
- Reduced environmental impact Energy-efficient with reduced requirements for packaging and transport
The world’s smallest and lightest 20,000lm 4K projector
Building on the success of the EB-PU Series, the EB-PQ2220B is not only the smallest and lightest in its class, but is highly affordable, versatile, extremely energy-efficient and packed with advanced features.
A revolutionary 4K experience
Marvel at the clarity of the images produced by Epson’s latest 4K technology. Combining its patented, state of the art 4K Crystal Motion, panel thermo-control and double micro-lens array technologies, Epson achieves a new benchmark in 4K image quality.
Fantastically flexible

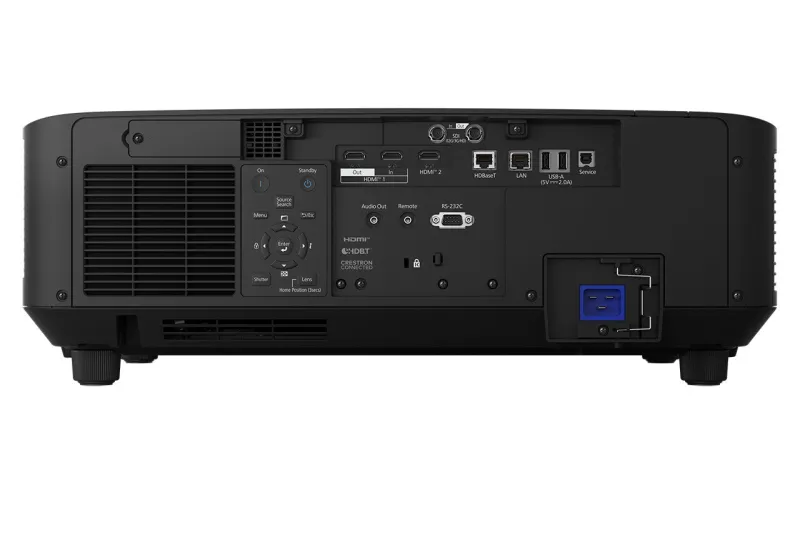

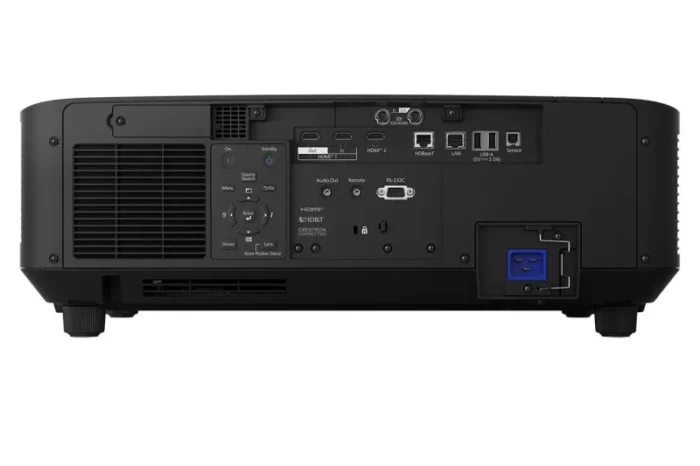

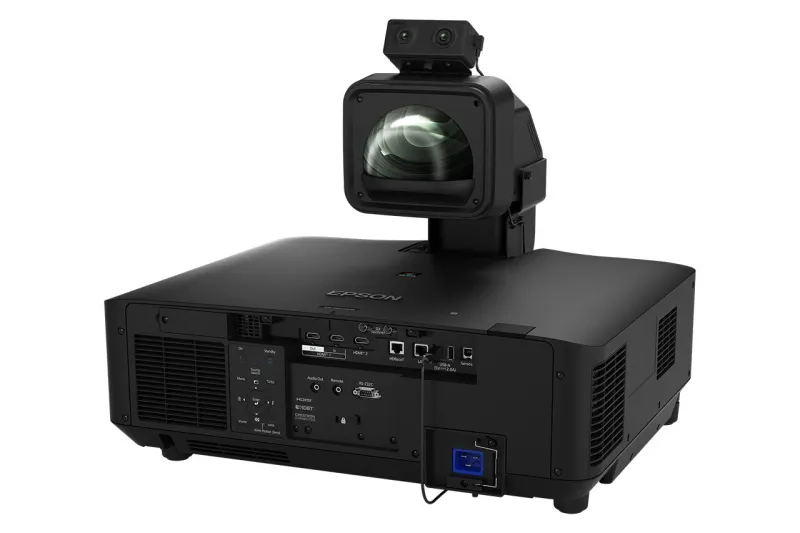

Featuring a wide range of connectivity, including 12G SDI in/out and HDMI in/out supporting 120Hz 4K. This high brightness projector also benefits from cross-platform lens compatibility, using the same 4K lenses as the existing EB-PU Series, including the ELPLX02S zero-offset ultra-short throw lens which is perfect for immersive spaces. This projector is supplied ‘body-only’, allowing you to build the perfect solution for your installation.
Reliable
Built for exceptional reliability, the EB-PQ2220B features IP5X rated dust resistance² and up to 20,000 hours maintenance-free operation, or even longer in extended modes.
Extensive software
Compatible with the ELPEC01 camera, Epson Projector Professional Tool and Epson Projector Config Tool for a wealth of calibration, assistance and control functionality.
| Projector | |
|---|---|
| Heat dissipation | 4865 BTU/h |
| Keystone correction, horizontal | -30 – 30° |
| Keystone correction, vertical | -45 – 45° |
| White light output | 20000 ANSI lumens |
| Colour light output | 20000 ANSI lumens |
| Matrix size | 2.64 cm (1.04″) |
| Projector brightness (economic mode) | 14000 ANSI lumens |
| Number of colours | 1.07 billion colours |
| Smart projector | No |
| Supported aspect ratios | 16:9, 21:9 |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 5000000:1 |
| Projector native resolution | UHD 4K (3840×2160) |
| Projection technology | 3LCD |
| Projector brightness | 20000 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source (economic mode) | 30000 h |
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Throw ratio | 0.34 – 7.16:1 |
| Zoom capability | Yes |
| Video | |
|---|---|
| Video colour modes | Cinema, Dynamic, Natural, Presentation |
| 3D | No |
| Full HD | Yes |
| Analog signal format system | Not supported |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| Serial interface type | RS-232C |
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Service port type | USB Type-B |
| HDBaseT port | Yes |
| DVI port | No |
| HDMI ports quantity | 3 |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN | Yes |
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Password protection | Yes |
| International Protection (IP) code | IPX5 |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| High Dynamic Range (HDR) supported | Yes |
| On Screen Display (OSD) | Yes |
| Noise level (economic mode) | 39 dB |
| Noise level | 48 dB |
| Interactive | No |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Placement | Ceiling, Desktop, Floor, Flying frame, Wall |
| Product colour | Black |
| Market positioning | Presentation |
| Display | |
|---|---|
| Colour depth | 10 bit |
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (economy mode) | 975 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 1431 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Weight & dimensions | |
|---|---|
| Height | 218 mm |
| Depth | 492 mm |
| Width | 586 mm |
| Weight | 29.2 kg |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Remote control included | Yes |
