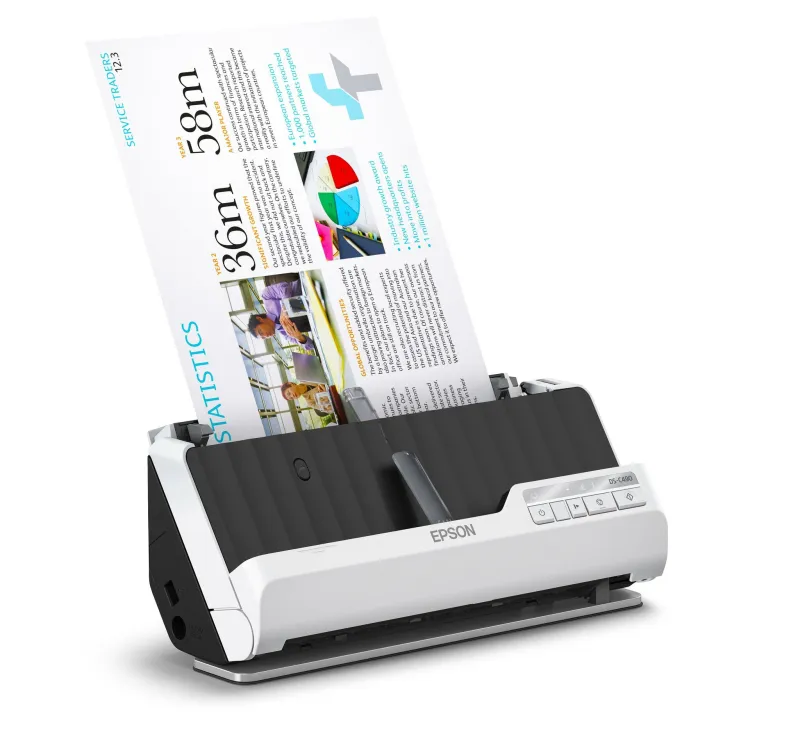

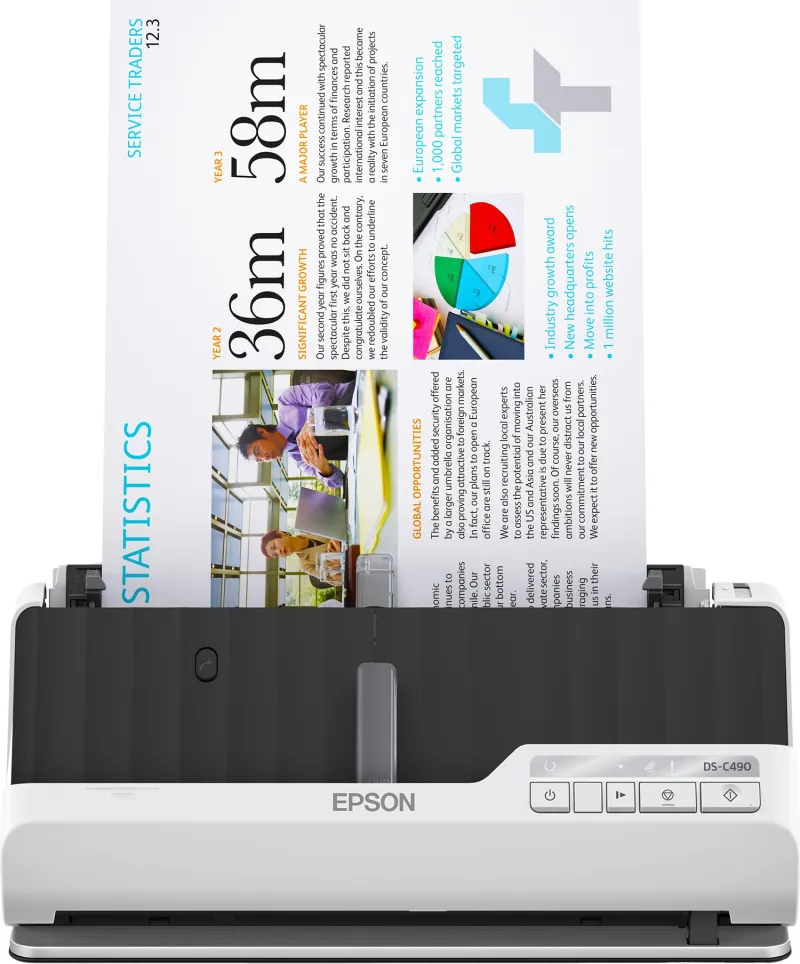

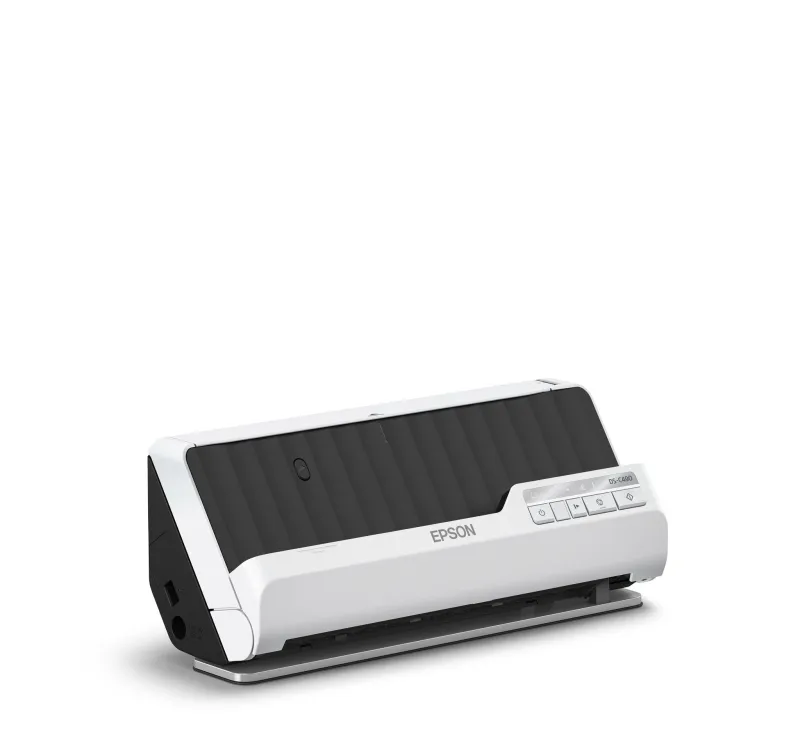

Epson DS-C490 Sheet-fed scanner 600 x 600 DPI A4 Black, Grey
- Ultra-compact Smallest footprint, even while in use
- Versatile Scan passports, receipts, invoices, cards and more
- Two-in-one U-turn pass and straight pass give you two scanners in one
- Lower environmental impact Power consumption of only 3.3W in ready mode and 1.0W in sleep mode
- Document Capture Pro Powerful document capture software included
Ultra-compact
When the scanner is in U-turn path position, paper can be scanned without adding to the device’s footprint, making it the perfect choice when space is at a premium.
Versatile
The DS-C490 is extremely versatile, handling from envelopes and PL cards to long paper and A3 (stitched). It can even scan passports and booklets up to 5mm thick, capturing the MRZ zone of the passport and saving in Excel compatible formats. The DS-C490 also comes with a host of enhancement features, enabling you to improve text sharpness, as well as correcting edge folds, tears, border shadows and punch hole removal. The inbuilt Ultra-sonic sensor eliminates double feeding ensuring peace of mind that all pages are captured. Plus scan to Microsoft applications Word, Excel, PowerPoint. Compatible with Windows, Mac, and Chromebook.
Two-in-one
The selector allows you to easily switch between straight path mode and U-turn mode, even while in operation, enabling you to create a single PDF. When the scanner is in U-turn mode, paper can be scanned without adding to the device’s footprint, making it the perfect choice when space is at a premium.
Lower environmental impact
With a power consumption of only 3.3W in ready mode and 1.0W in sleep mode, it will also save you energy.
| Scanning | |
|---|---|
| Roller lifetime | 50000 pages |
| Duplex ADF scan speed (b/w, A4) | 80 ipm |
| Duplex ADF scan speed (colour, A4) | 80 ipm |
| ADF scan speed (colour, A4) | 40 ppm |
| ADF scan speed (b/w, A4) | 40 ppm |
| Output greyscale depth | 8 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 10 bit |
| Input colour depth | 30 bit |
| Duplex scanning | Yes |
| Optical scanning resolution | 600 x 600 DPI |
| Maximum scan size | 215.9 x 5588 mm |
| Design | |
|---|---|
| Control type | Buttons |
| Product colour | Black, Grey |
| Built-in display | No |
| Scanner type | Sheet-fed scanner |
| Performance | |
|---|---|
| Scan drivers | ICA, ISIS, SANE, TWAIN, WIA |
| Daily duty cycle (max) | 6500 pages |
| Scan file formats | BMP, JPEG, PDF, PNG, TIFF |
| Light source | ReadyScan LED |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 20 sheets |
| Paper handling | |
|---|---|
| Paper tray media weight | 40 – 413 g/m² |
| ISO B-series sizes (B0…B9) | B5, B6 |
| ISO A-series sizes (A0…A9) | A4, A5, A6 |
| Maximum ISO A-series paper size | A4 |
| Ports & interfaces | |
|---|---|
| USB version | 2.0 |
| USB port | Yes |
| Power | |
|---|---|
| Input voltage | 100 – 240 V |
| Power consumption (standby) | 1 W |
| Power supply type | AC |
| Power consumption (typical) | 10 W |
| Weight & dimensions | |
|---|---|
| Weight | 1.9 kg |
| Height | 125 mm |
| Depth | 104 mm |
| Width | 296 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 x64, Windows Server 2016 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks, Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 15 – 85% |
| Operating relative humidity (H-H) | 15 – 80% |
| Storage temperature (T-T) | -25 – 60 °C |
| Operating temperature (T-T) | 5 – 35 °C |
| Other features | |
|---|---|
| Compliance certificates | RoHS |
