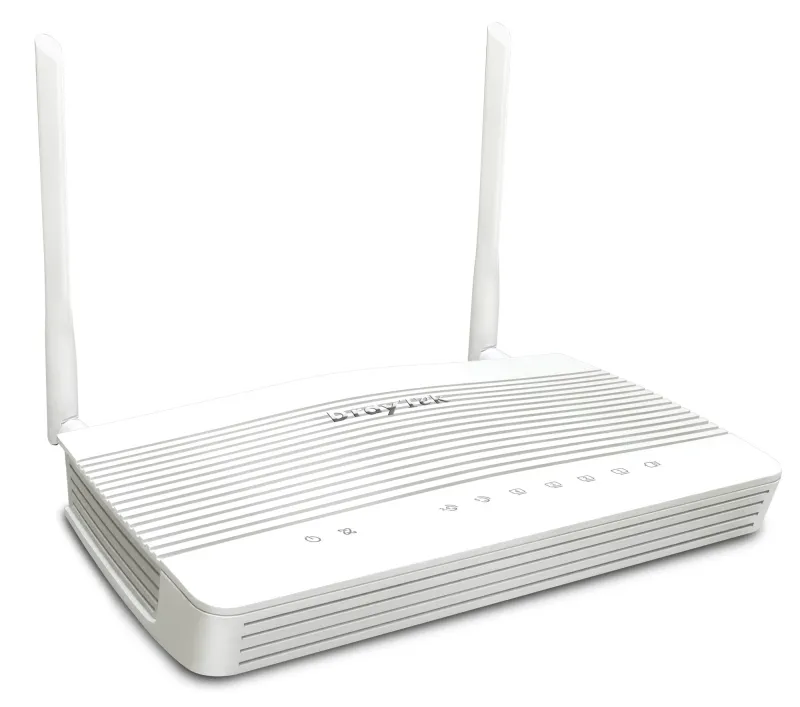

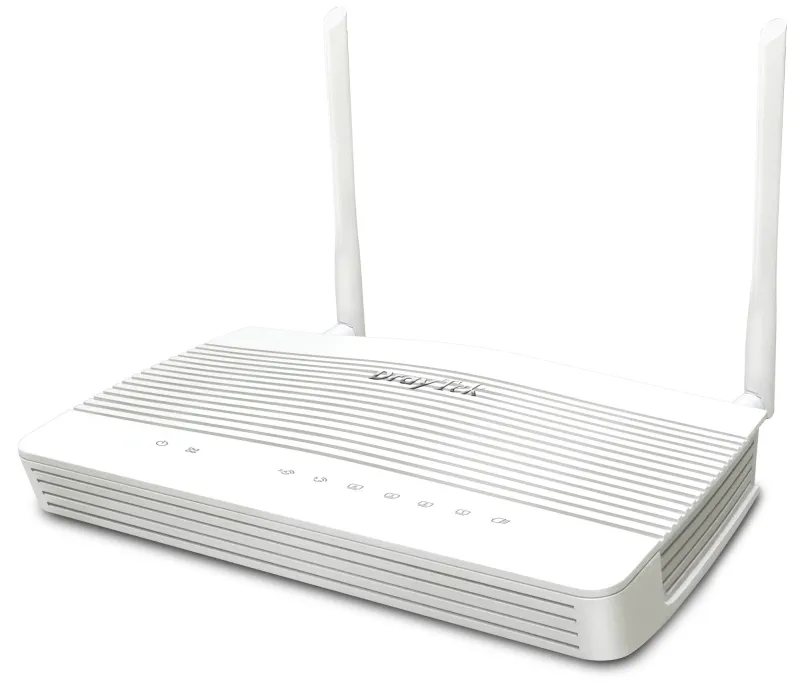

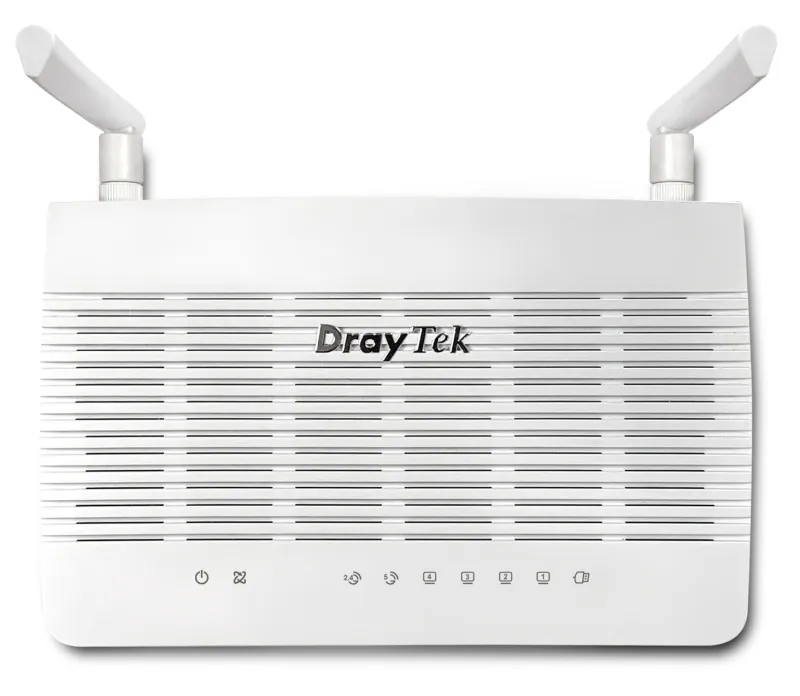

DrayTek Vigor 2136ax AX3000 Wireless Router with VPN and 2.5GbE WAN and LAN ports
- 2.5 Gigabit Ethernet Router
- Up to 2.3Gbps Firewall Throughput
- Up to 390Mbps IPsec VPN Throughput
- 4x LAN-to-LAN & Remote Teleworker VPN Tunnels
- 1x 2.5 Gigabit RJ-45 LAN Port
- 3x Gigabit RJ-45 LAN Ports
- AX3000 – Wi-Fi 6 Dual Band Wireless
- 4 LAN Subnets with VLANs (Port-based / 802.1q)
- SPI Firewall and Content Filtering
- Optional VigorCare Available
- Compatible with VigorACS central management platform
The DrayTek Vigor 2136ax Firewall VPN routers allow you to make the most of FTTP Fibre Broadband with future-proof 2.5 Gigabit WAN interfaces, extensive Firewall, Content Filtering, VPN client/server and Quality of Service controls.
| WAN connection |
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
Yes |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
| WLAN data transfer rate (second band) |
2402 Mbit/s |
| WLAN data transfer rate (first band) |
574 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
3000 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
| VPN support |
IPsec IKEv1, IKEv2, IKEv2 EAP, IPsec-XAuth, OpenVPN, WireGuard |
| VPN throughput |
390 Mbit/s |
| VPN tunnels quantity |
4 |
| VPN server |
yes |
| Wireless Distribution System (WDS) bridge |
Yes |
| Port mirroring |
Yes |
| Static route |
Yes |
| SSID-based VLAN assignment |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Multicast support |
Yes |
| Full duplex |
Yes |
| Networking standards |
IEEE 802.1Q |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet LAN interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| USB 2.0 ports quantity |
2 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
| MIMO |
Yes |
| MU-MIMO technology |
Yes |
| WPS push button |
Yes |
| Intelligent Mesh technology |
Yes |
| Reset button |
Yes |
| Wake-on-LAN ready |
Yes |
| Quality of Service (QoS) support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Bandwidth control |
Yes |
| Web-based management |
Yes |
| Security |
| Network address translation (NAT) |
Yes |
| System event log |
Yes |
| URL filtering |
Yes |
| IP address filtering |
Yes |
| MAC address filtering |
Yes |
| DDoS protection |
Yes |
| Parental control |
Yes |
| DoS attack prevention |
Yes |
| Schedule access |
Yes |
| Stateful Packet Inspection (SPI) |
Yes |
| Guest access |
Yes |
| Access Control List (ACL) |
Yes |
| Firewall |
Yes |
| Security algorithms |
3DES, AES, HTTPS, SSH, SSID, TLS, WPA2, WPA2-PSK, WPA2-Personal, WPA2-RADIUS, WPA3, WPA3-Personal |
| Protocols |
| Routing protocols |
BGP, OSPF, RIP |
| Universal Plug and Play (UPnP) |
Yes |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
| On/off switch |
Yes |
| LED indicators |
Activity, LAN, Power, USB, WLAN |
| Indication light |
Yes |
| Wall mountable |
Yes |
| Housing material |
Plastic |
| Product type |
Desktop/pole router |
| Packaging content |
| Packaging content |
•Vigor 2136ax series router•Quick Start Guide•Screws & wall plugs for wall mounting•2m Cat-5e RJ-45 Network Cable•2x Detachable Wireless LAN Antennas•DC 12V Power Supply with UK Plug |
| Antenna included |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Certificates |
| PSTI certified |
Yes |
| Antenna |
| Detachable antenna(s) |
Yes |
| Antenna direction type |
Omni-directional |
| Antenna gain level (max) |
2.7 dBi |
| Antenna connector type |
RP-SMA |
| Antenna type |
2×2 |
| Antenna design |
External |
| Power |
| Power over Ethernet (PoE) |
No |
| Power consumption (typical) |
18 W |
| Operational conditions |
| Operating temperature (T-T) |
0 – 45 °C |
| Storage temperature (T-T) |
-25 – 70 °C |
| Operating relative humidity (H-H) |
10 – 90% |
| Weight & dimensions |
| Width |
207 mm |
| Depth |
131 mm |
| Height |
42 mm |
| Weight |
508 g |
