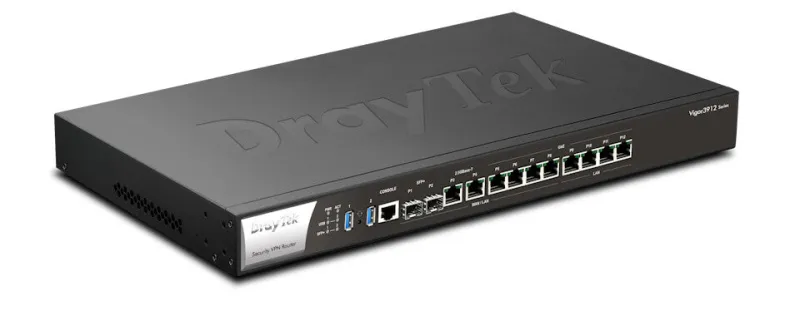

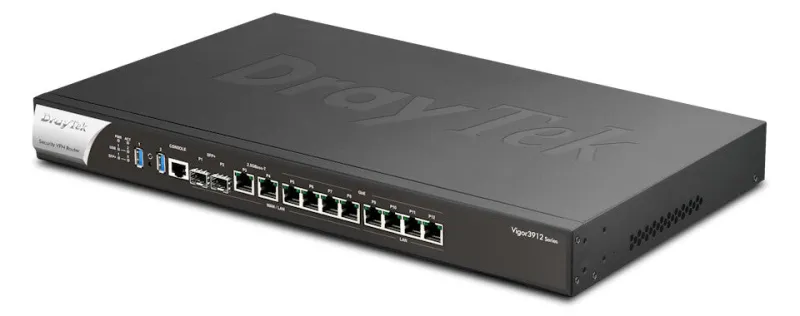

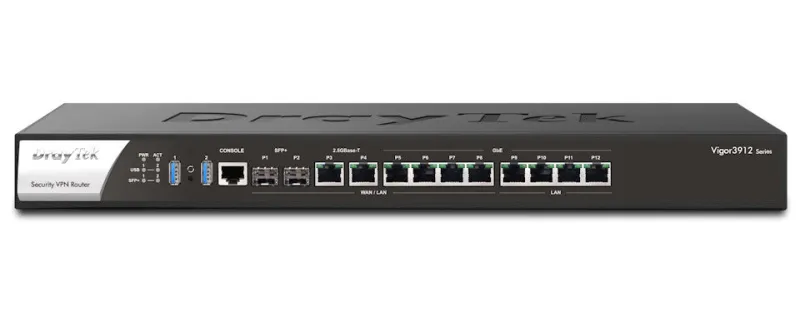

DrayTek V3912S-K wired router 2.5 Gigabit Ethernet, Gigabit Ethernet Black
- Multi-WAN Router with over 12Gbps NAT Throughput
- Suricata-based Intrusion Detection System – New!
- 8x WAN/LAN Switchable Ports & 4x fixed Ethernet LAN Ports
- 2x 10GbE SFP+ and 2x 2.5GbE for WAN/LAN
- Up to 5Gbps Total IPSec VPN Throughput
- Up to 3.5Gbps Total SSL VPN Throughput
- 500 LAN-to-LAN & Remote Teleworker VPN Tunnels
- 200 DrayTek SSL VPN or OpenVPN Tunnels
- Up to 100 LAN Subnets with VLANs (Port-based / 802.1q)
- 256GB SSD and 8GB DDR4 for hosting Docker Linux applications
- SPI Firewall and Content Filtering
- Optional VigorCare Available
- Compatible with VigorACS Central Management Platform
The DrayTek Vigor 3912 series is a premium next generation multi-WAN router making it ideal for your most demanding and complex networks. The Vigor 3912S model has a 256GB SSD, enabling you to install Docker-compatible applications such as the VigorConnect management platform, or the Suricata Intrusion Detection System (IDS)
| WAN connection |
| SFP WAN |
Yes |
| Ethernet WAN |
Yes |
| Network |
| Differentiated services (DiffServ) supported |
Yes |
| Policy-based routing |
Yes |
| Static route |
Yes |
| VLAN support |
Yes |
| Full duplex |
Yes |
| Throughput |
12.5 Gbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet interface type |
2.5 Gigabit Ethernet, Gigabit Ethernet |
| Management features |
| Firmware upgradeable |
Yes |
| Reset button |
Yes |
| Traffic shaping |
Yes |
| Priority mapping |
Yes |
| Interface-based traffic policing |
Yes |
| Wake-on-LAN ready |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
| USB version |
3.0 |
| USB ports quantity |
2 |
| Number of console ports |
1 |
| SFP+ module slots quantity |
2 |
| WAN/Ethernet LAN ports quantity |
6 |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Ethernet LAN (RJ-45) ports |
10 |
| Protocols |
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| Management protocols |
http, https, ssh, telnet, tr-069 |
| Routing protocols |
BGP, OSPF |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Security |
| VPN support |
IPsec IKEv1IKEv2IKEv2 EAPIPsec-XAuthDrayTek SSL VPNOpenVPNWireGuardGRE over IPsecPPTPL2TPL2TP over IPsec |
| VPN tunnels quantity |
500 |
| System event log |
Yes |
| Guest access |
Yes |
| Network address translation (NAT) |
Yes |
| Access Control List (ACL) |
Yes |
| ICMP attack prevention |
Yes |
| ARP attack prevention |
Yes |
| DoS attack prevention |
Yes |
| IP address filtering |
Yes |
| URL filtering |
Yes |
| MAC address filtering |
Yes |
| Firewall |
Yes |
| Security algorithms |
3DES, DES, EAP, HTTPS, MD5, SHA-1, SHA-256 |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
AC, LAN (RJ-45) |
| Certificates |
| PSTI certified |
Yes |
| Features |
| Internal storage capacity |
256 GB |
| Storage media |
SSD |
| Design |
| On/off switch |
Yes |
| LED indicators |
Power, Status, USB |
| Rack capacity |
1U |
| Rack mounting |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Power |
| Power source type |
DC |
| Power consumption (max) |
35 W |
| Power consumption (typical) |
35 W |
| Operational conditions |
| Storage temperature (T-T) |
-10 – 55 °C |
| Operating temperature (T-T) |
0 – 45 °C |
| Weight & dimensions |
| Weight |
3.82 kg |
| Height |
45 mm |
| Depth |
285 mm |
| Width |
443 mm |
| Packaging data |
| Package type |
Box |
