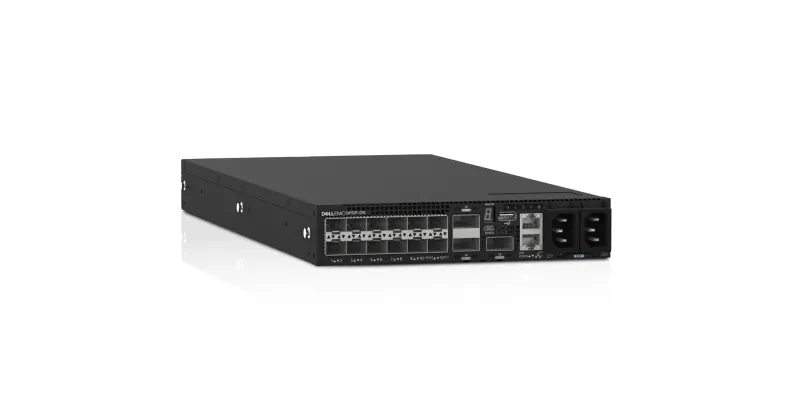

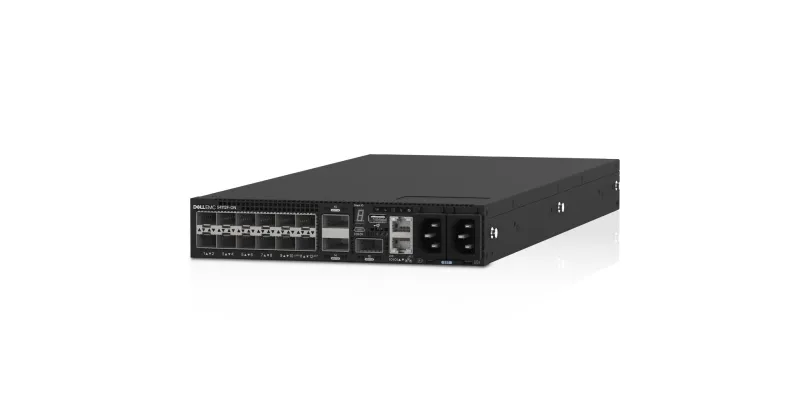

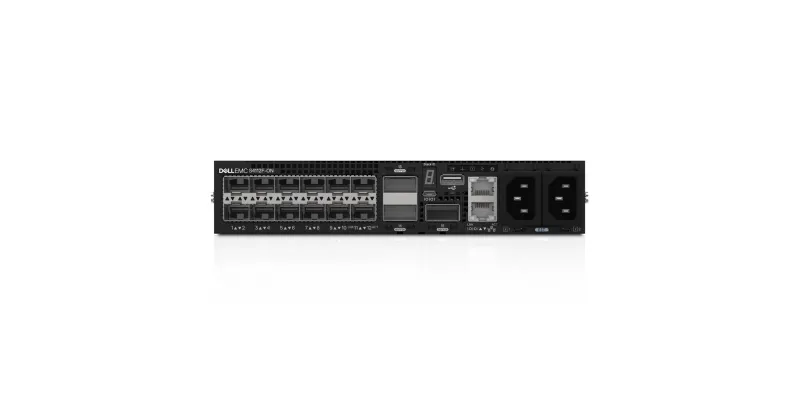

DELL S-Series S4112 Managed L2/L3 1U Black
- 1U, L2/L3, 840Gbits, 630Mpps
- 12 x 10GbE SFP+, 3 x 100GbE QSFP28
- OS10
Flexible, powerful and optimized
Designed for flexibility and high performance for today’s demanding modern workloads and applications.
| Management features |
| Configuring Location Settings (CLI) |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
| QSFP+ module slots quantity |
3 |
| SFP+ module slots quantity |
12 |
| SFP module slots quantity |
1 |
| Network |
| VLAN support |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.3 |
| Data transmission |
| Latency (10-100 Mbps) |
800 µs |
| Throughput |
630 Mpps |
| Switching capacity |
840 Gbit/s |
| Multicast features |
| Multicast support |
Yes |
| Protocols |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Design |
| Safety |
UL/CSA 60950-L Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition Including all National Deviations and Group Differences, EN 60825-1 Safety of Laser Products Part1: Equipment Classification Requirements and User’s Guide, EN 60825-2 Safety of Laser Products Part 2: Safety of Optical Fibre Communications Systems, FDA Regulation 21 CFR 1040.10 and 1040.11 |
| Number of fans |
3 fan(s) |
| Ventilation system |
Front-to-back airflow |
| Product colour |
Black |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
180 W |
| Power consumption (typical) |
90 W |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Number of power supply units |
2 |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
614 BTU/h |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
5 – 85% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
5 – 40 °C |
| Weight & dimensions |
| Weight |
3.76 kg |
| General |
| Product family |
S-Series |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
