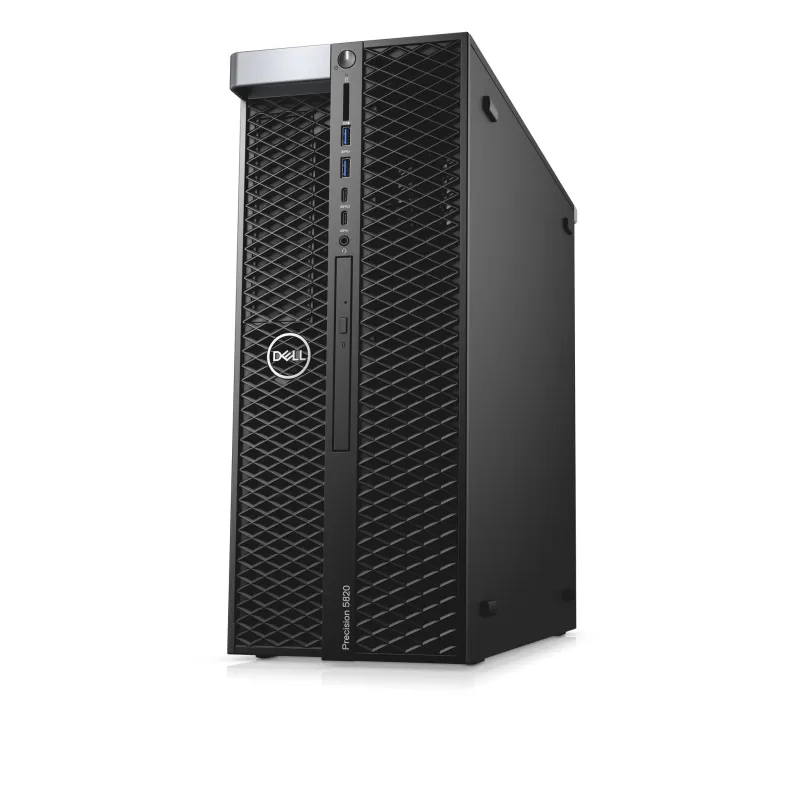

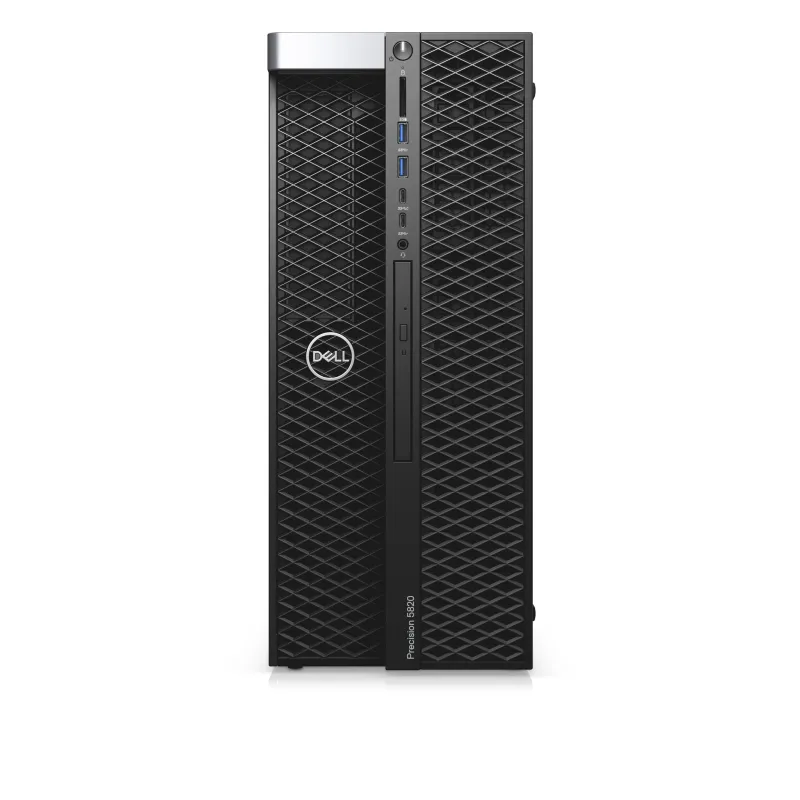

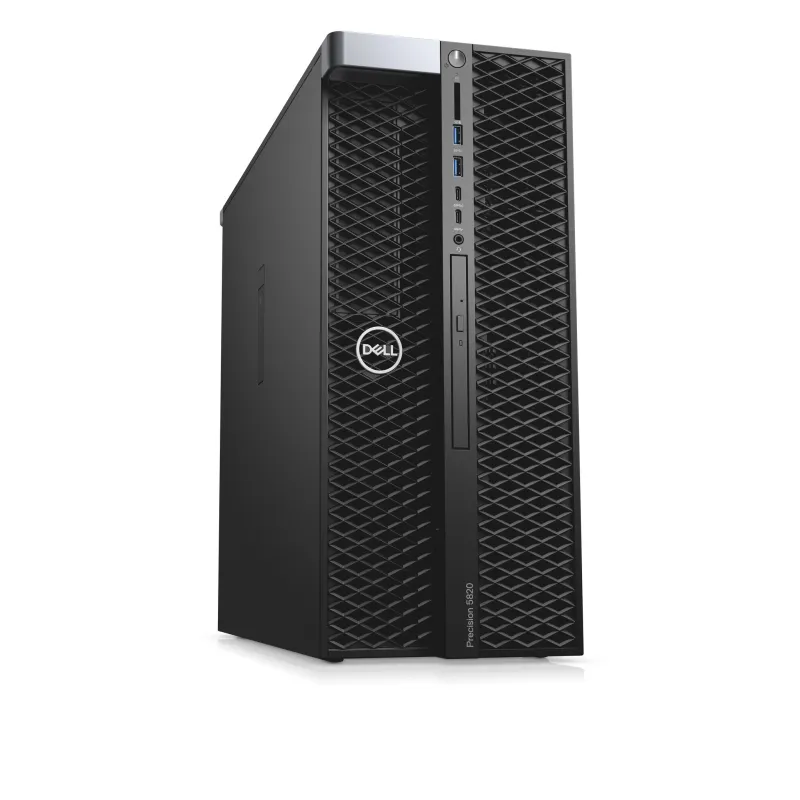

DELL Precision T5820 Intel Xeon W W-2223 16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro for Workstations Tower Workstation Black
- Windows 10 Pro for Workstations 64-bit
- Intel Xeon W-2223 (8.25MB Cache, 3.6GHz)
- 16GB (2933MHz) DDR4-SDRAM (2 x 8) & 512GB SSD
Perfected to your vision.
Expand your ideas with the Precision 5820 Tower. Featuring high performance in a new innovative, versatile compact design that is great for VR and AI.
| Processor |
| Processor base power |
120 W |
| Number of processors supported |
1 |
| Number of processors installed |
1 |
| Processor cache |
8.25 MB |
| Processor frequency |
3.6 GHz |
| Processor boost frequency |
3.9 GHz |
| Processor cores |
4 |
| Processor model |
W-2223 |
| Processor family |
Intel Xeon W |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
Yes |
| Memory clock speed |
2933 MHz |
| Memory slots |
8x DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
256 GB |
| Internal memory |
16 GB |
| Storage |
| RAID levels |
0, 1, 5, 6, 10, 60 |
| RAID support |
Yes |
| Compatible memory cards |
Not supported |
| SSD performance class |
40 |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
DVD±RW |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Not available |
| Discrete graphics card model |
Not available |
| On-board graphics card |
No |
| Discrete graphics card |
No |
| Network |
| Bluetooth |
No |
| Wi-Fi |
No |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Number of front audio ports |
2 |
| Number of rear audio ports |
1 |
| Number of rear USB ports |
6 |
| Number of front USB ports |
4 |
| Serial ports quantity |
1 |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Line-in |
Yes |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| PS/2 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
8 |
| Expansion slots |
| PCI slots |
1 |
| PCI Express x16 slots |
5 |
| Design |
| Intel® vPro™ Platform Eligibility |
Yes |
| Product colour |
Black |
| Water cooling system |
No |
| Placement supported |
Vertical |
| Chassis type |
Tower |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Password protection |
Yes |
| Built-in speaker(s) |
No |
| Audio system |
High Definition Audio |
| Audio chip |
Realtek ALC3234 |
| Motherboard chipset |
Intel® C422 |
| Market positioning |
Business |
| Product type |
Workstation |
| Software |
| Trial software |
No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language |
Multilingual |
| Windows 11 free upgrade |
Yes |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro for Workstations |
| Processor special features |
| Intel 64 |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Embedded options available |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Idle States |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel TSX-NI |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
No |
| Power |
| Power supply input frequency |
50 – 60 Hz |
| Power supply input voltage |
100 – 240 V |
| Power supply |
950 W |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
8 – 85% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Weight & dimensions |
| Weight |
15.4 kg |
| Height |
417.9 mm |
| Depth |
518.3 mm |
| Width |
176.5 mm |
| Packaging content |
| Cables included |
AC |
| Input device model |
KB216, MS116 |
| Keyboard connectivity |
Wired |
| Keyboard included on selected markets only |
Yes |
| Mouse connectivity |
Wired |
| Mouse included on selected markets only |
Yes |
| Display included |
No |
| General |
| Product family |
Precision |
| Product series |
5000 |
| Logistics data |
| Harmonized System (HS) code |
84715000 |
