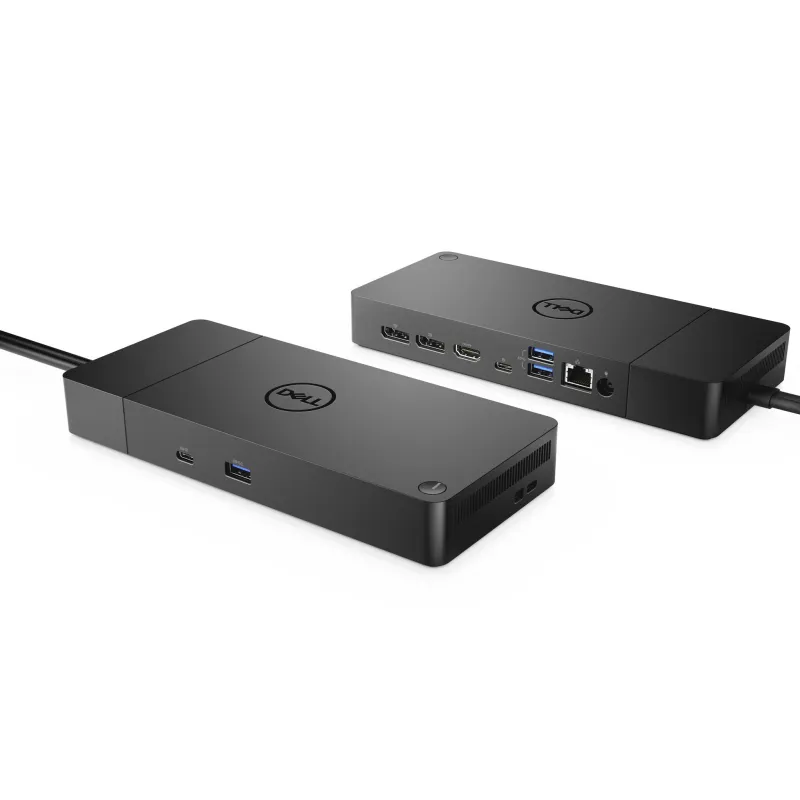

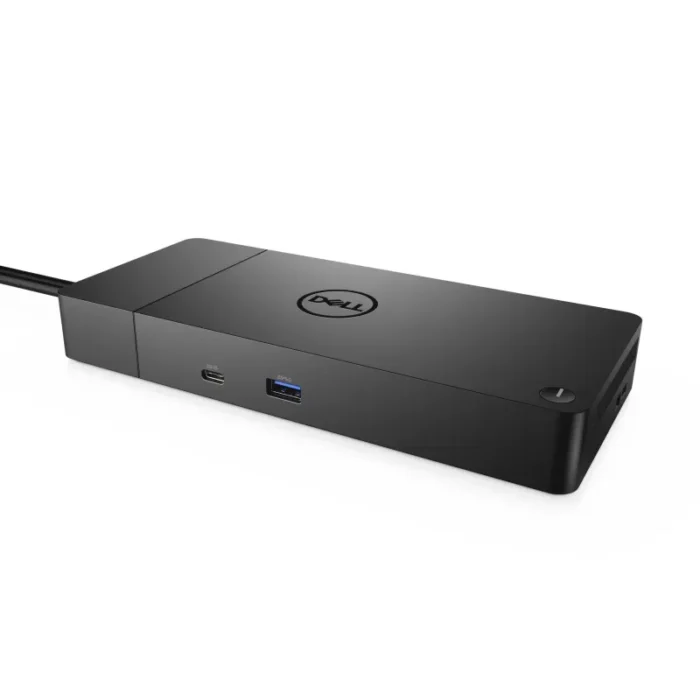

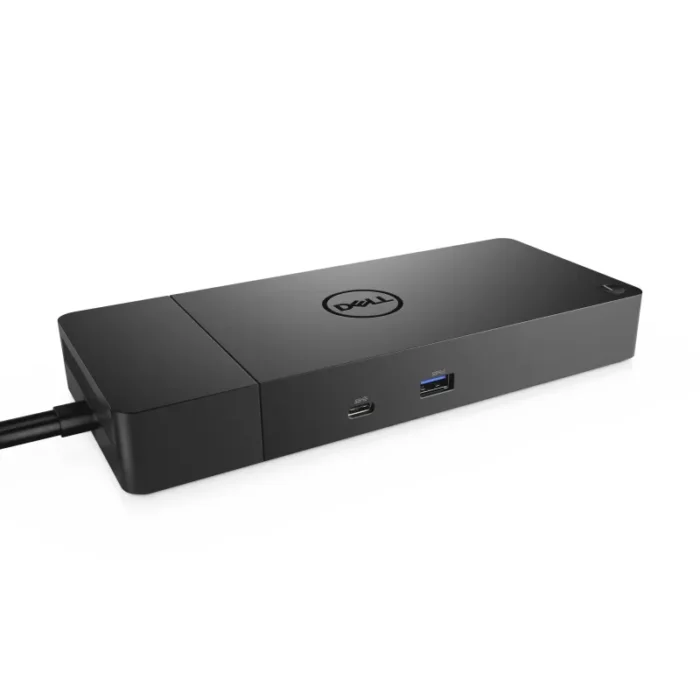

DELL Performance Dock – WD19DCS
- Wired
- Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- Ethernet LAN 10,100,1000 Mbit/s
Boost your PC’s power up to 240W on the world’s most powerful and first modular Dual USB-C dock with a future-ready design.
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Microphone in | No |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| PowerShare | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| LED indicators | Yes |
| On/off switch | Yes |
| VESA mounting | Yes |
| Maximum digital resolution | 5120 x 2880 pixels |
| Card reader integrated | No |
| Product colour | Black |
| Power | |
|---|---|
| Power cable length | 0.8 m |
| Power supply | 240 W |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 120 – 230 V |
| Power source type | DC |
| Software | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 80% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 35 °C |
| Weight & dimensions | |
|---|---|
| Weight | 585 g |
| Height | 29 mm |
| Depth | 90 mm |
| Width | 205 mm |
| Packaging data | |
|---|---|
| Package height | 62 mm |
| Package depth | 315 mm |
| Package width | 300 mm |
| Quantity per pack | 1 pc(s) |
| Carbon footprint | |
|---|---|
| Total carbon footprint (kg of CO2e) | 41 |
| Carbon emissions, manufacturing (kg of CO2e) | 30 |
| Carbon emissions, logistics (kg of CO2e) | 8 |
| Carbon emissions, energy usage (kg of CO2e) | 6 |
| Carbon emissions, end-of-life (kg of CO2e) | -3 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 35 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
