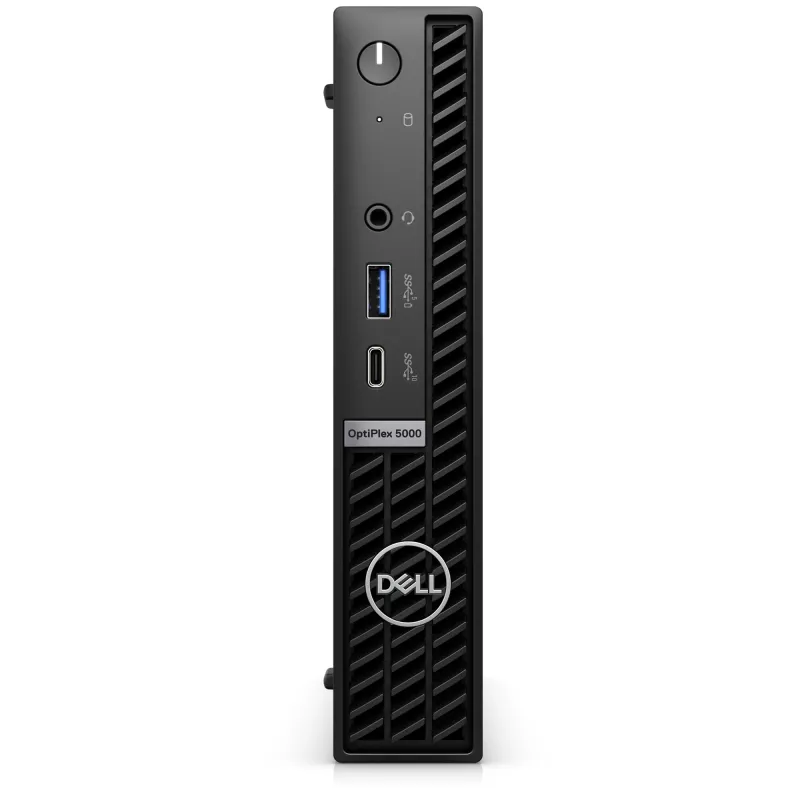

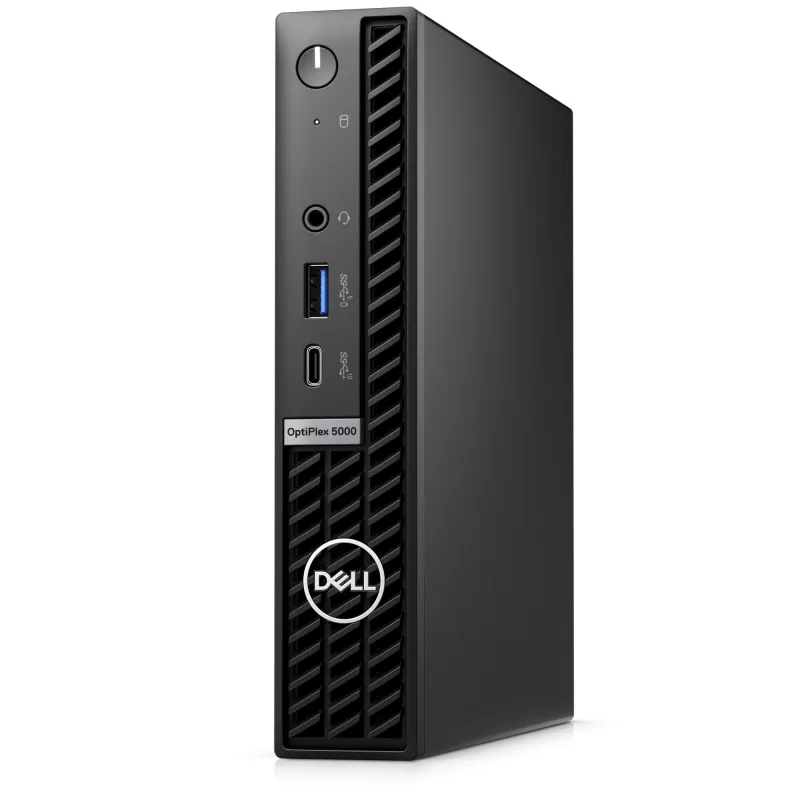

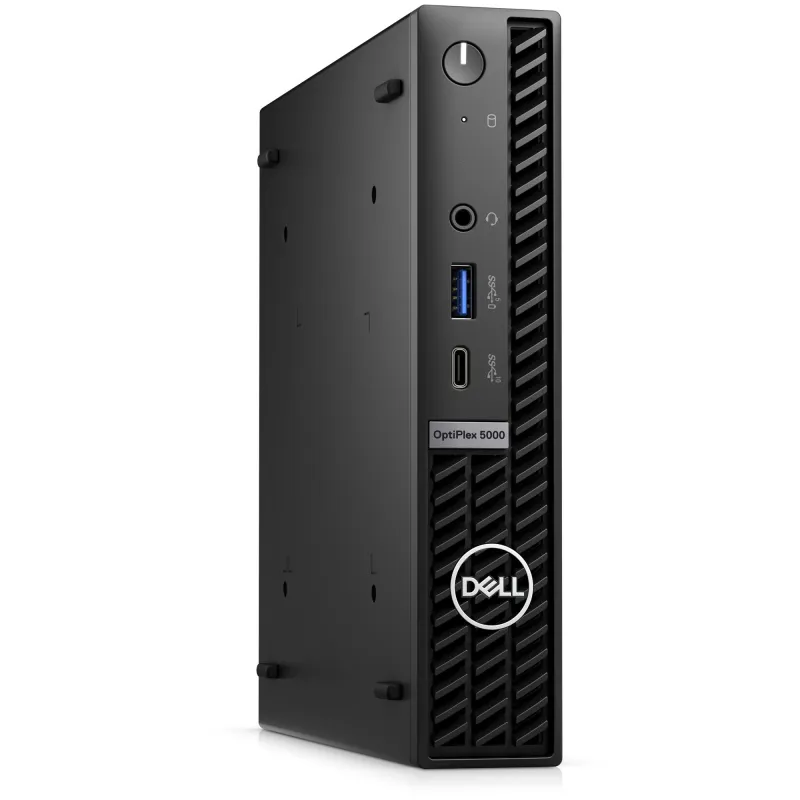

DELL OptiPlex 5000 Intel® Core™ i5 i5-12500T 16 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro MFF Mini PC Black
- Windows 11 Pro 64-bit
- Intel Core i5-12500T (18MB Cache)
- 16GB (3200MHz) DDR4-SDRAM (1 x 16) & 256GB SSD
A micro PC that revolves around you
A secure and responsive compact desktop with all new versatile mounts and built-in Artificial Intelligence from Dell Optimizer.
| Processor |
| Processor base power |
35 W |
| Maximum turbo power |
74 W |
| Number of processors supported |
1 |
| Number of processors installed |
1 |
| Bus type |
DMI4 |
| Processor cache type |
Smart Cache |
| Processor cache |
18 MB |
| Performance-core base frequency |
2 GHz |
| Performance-core Max Turbo Frequency |
4.4 GHz |
| Performance cores |
6 |
| Processor boost frequency |
4.4 GHz |
| Processor threads |
12 |
| Processor cores |
6 |
| Processor model |
i5-12500T |
| Processor generation |
12th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Memory channels |
Single-channel |
| Memory clock speed |
3200 MHz |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
16 GB |
| Storage |
| RAID support |
No |
| Compatible memory cards |
Not supported |
| SSD performance class |
35 |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Number of storage drives supported |
2 |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Graphics |
| Maximum on-board graphics card resolution |
7680 x 4320 pixels |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth |
Yes |
| Antenna type |
2×2 |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| LAN controller |
Intel® I219-LM |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Number of front audio ports |
1 |
| Number of rear USB ports |
4 |
| Number of front USB ports |
2 |
| DC-in jack |
Yes |
| Combo headphone/mic port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4a |
| DisplayPorts quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
5 |
| Design |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Water cooling system |
No |
| Chassis type |
MFF |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Built-in speaker(s) |
No |
| Audio chip |
Realtek ALC3246-CG |
| Market positioning |
Business |
| Product type |
Mini PC |
| Software |
| Trial software |
No Microsoft Office License Included 30 day Trial Offer Only |
| Operating system language |
German, Dutch, English, French, Italian |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Power |
| Power supply input frequency |
50 – 60 Hz |
| Power supply input voltage |
100 – 240 V |
| Power supply |
90 W |
| Operational conditions |
| Non-operating vibration |
1.37 G |
| Operating vibration |
0.26 G |
| Non-operating altitude |
0 – 10668 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
0 – 35 °C |
| Weight & dimensions |
| Weight |
940 g |
| Height |
182 mm |
| Depth |
178 mm |
| Width |
36 mm |
| Packaging content |
| Input device model |
KM5221W |
| Keyboard connectivity |
Wireless |
| Keyboard included on selected markets only |
Yes |
| Mouse connectivity |
Wireless |
| Mouse included on selected markets only |
Yes |
| Display included |
No |
| General |
| Product family |
OptiPlex |
| Product series |
5000 |
