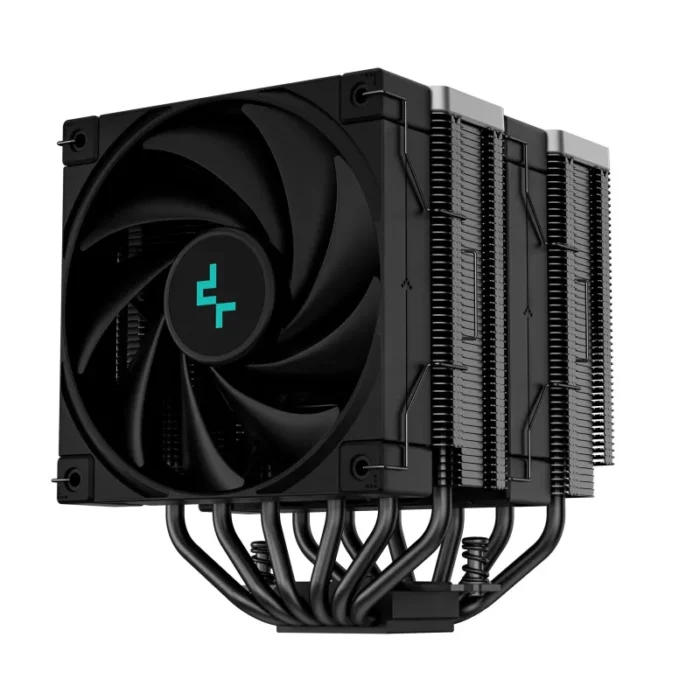

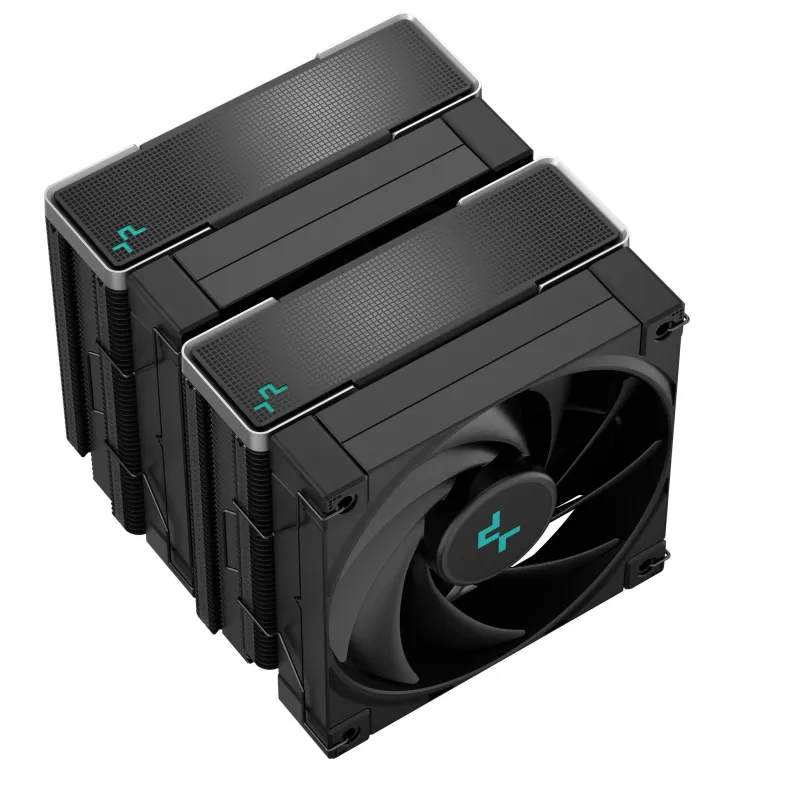

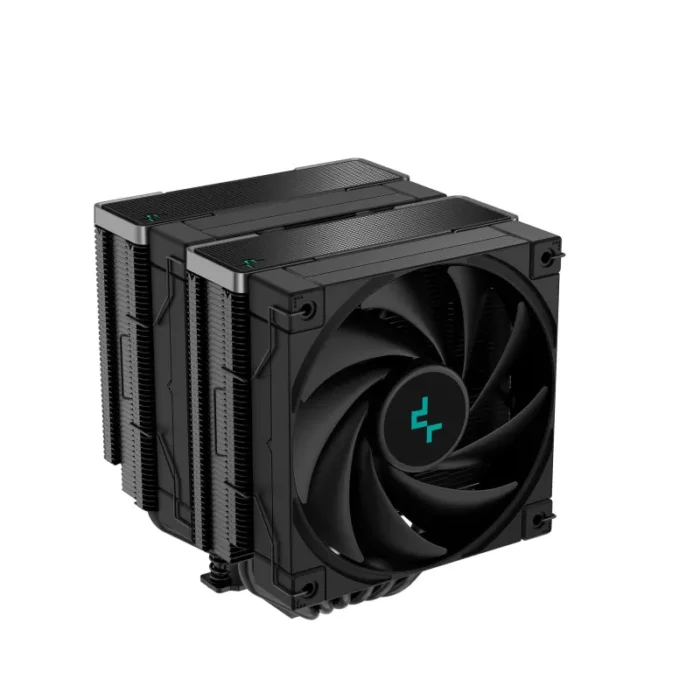

DeepCool AK620 ZERO DARK Processor Air cooler 12 cm Black 1 pc(s)
- Processor Air cooler 12 cm 1850 RPM
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
- 28 dB 68.99 cfm 2.19 mmH2O Fluid Dynamic Bearing (FDB)
- Pulse-width modulation (PWM) support
- 120 x 120 x 25 mm
- Black
- 1 pc(s)
ZERO DARK EDITION
The DeepCool AK620 ZERO DARK is an all-black edition of the dominant AK620 high performance CPU cooler. The same premium quality materials featuring six advanced copper heat pipes, a dense dual-tower heat sink, and two silent FDB fans produces a powerful winning formula for high performance cooling in a ZERO DARK raven design. Dripping in black from head to toe, the AK620 ZERO DARK edition coats every surface in a premium all-black luster for a bold look in any system setup.
UNLOCKED POTENTIAL
Achieve peak performance on your CPU with substantial cooling capacity for high frequency overclocking. The AK620 ZERO DARK features a maximum heat dissipation power of 260W and improved airflow to lower temperatures during demanding system applications.
COOL, QUIET
AND POWERFUL
Two powerful PWM fans with superior fluid dynamic bearings offer low noise operation without losing cooling output for a perfect balance.
EXCEPTIONAL COOLING BY DESIGN
The AK620 ZERO DARK features a precision-machined convex copper base and six copper heat pipes that deliver improved heat transfer capabilities. The dense matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.
MULTI-PLATFORM PERFORMANCE
The all-metal mounting bracket kit provides a sturdy and easy installation process for both Intel and AMD platforms with additional tools included.
| Performance | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support | Yes |
| Fan diameter 2 | 12 cm |
| Maximum air pressure | 2.19 mmH2O |
| Maximum airflow | 68.99 cfm |
| Noise level (high speed) | 28 dB |
| Rotational speed (max) | 1850 RPM |
| Rotational speed (min) | 500 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Fan diameter | 12 cm |
| Type | Air cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of heat pipes | 6 |
| Number of fan blades | 9 |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Thermal Design Power (TDP) | 260 W |
| Rated current | 0.12 A |
| Fan power consumption | 1.44 W |
| Rated voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Heat pipes diameter | 6 mm |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 1.46 kg |
| Height | 160 mm |
| Depth | 138 mm |
| Radiator height | 15.7 cm |
| Radiator depth | 11 cm |
| Radiator width | 12.7 cm |
| Width | 129 mm |
| Packaging content | |
|---|---|
| Thermal pad included | Yes |
| Mounting kit | Yes |
| Package type | Box |
- manual pdf
- AK620 WH installation guide
