D-Link Gigabit Smart Managed Switches DGS-1100 Series

£44.99 Original price was: £44.99.£14.70Current price is: £14.70.

Compare
Add to wishlist
SKU: US-14992077226366 Category: Network Switches
Share:
  • Description
  • Shipping & Delivery
Description

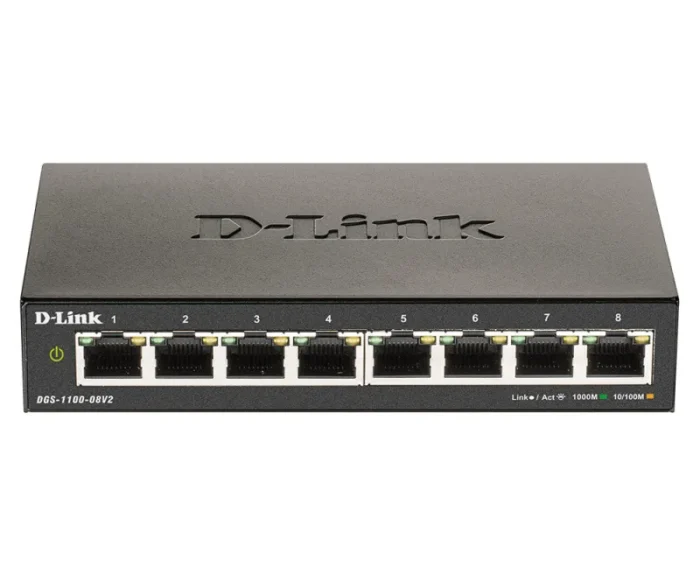

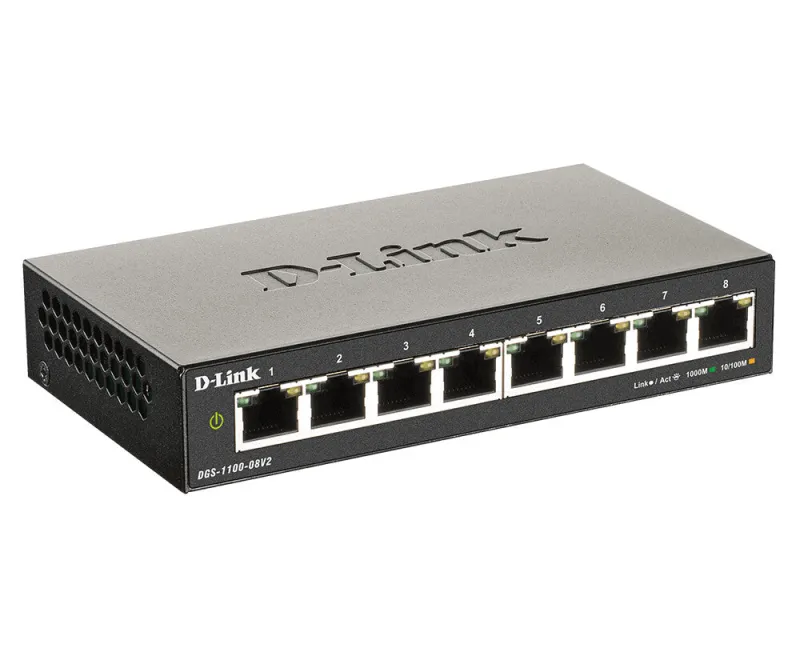

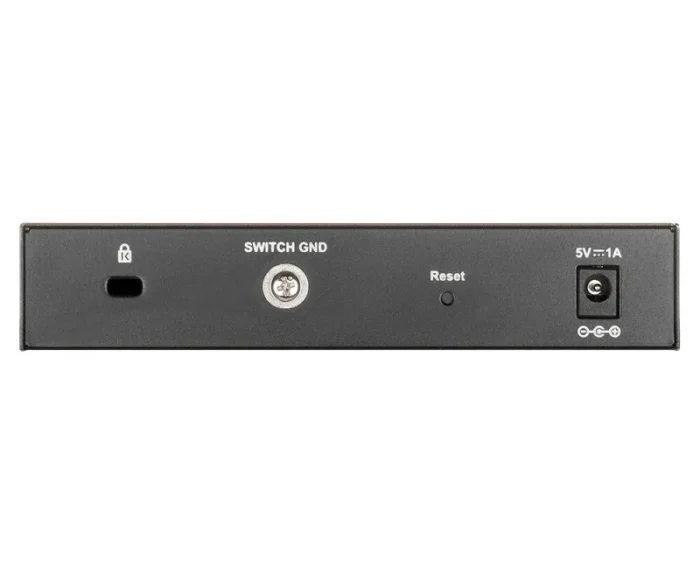

D-Link Gigabit Smart Managed Switches DGS-1100 Series

  • Free centralised management with Nuclias Connect
  • Simple Layer 2 Management
  • Web-based User Interface
  • PoE options up to 370W power budget

Web UI
Easy to use web interface to access management features

VLANs
Segment your network into VLANs.

Easy deployment with automatic configuration
Simply connect the switch to your network and it detects D-Link and third-party devices for easy administration

Energy Efficient Design
Automatic power saving features to reduce power usage

Simple. Easy. Smart.
DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.

Smart Web UI
The DGS-1100’s web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.

Free Nuclias Connect remote network management software.
Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralised network management.

PoE and PoE+, with budgets up to 370W
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.

Green Technology
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

Management features
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
Power connector DC-in jack
Gigabit Ethernet (copper) ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Network
Number of VLANs 4094
Virtual LAN features Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
VLAN support Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Broadcast storm control Yes
Head-of-line (HOL) blocking Yes
Half duplex Yes
Full duplex Yes
Port mirroring Yes
10G support No
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet buffer memory 1.5 MB
Jumbo frames 9216
Jumbo frames support Yes
Number of queues 4
Forwarding rate 11.9 Mpps
Switching capacity 16 Gbit/s
MAC address table 4000 entries
Security
Queue scheduling algorithms SP, Weighted Round Robin (WRR)
Static port security Yes
IGMP snooping Yes
IGMP entries 128
Design
Number of fans 0 fan(s)
Reset button Yes
Product colour Black
Rack mounting No
Performance
Mean time between failures (MTBF) 1456992 h
Fanless Yes
Noise level 0 dB
Power
Power consumption (max) 4.94 W
Input current 1 A
DC input voltage 5 V
AC input frequency 50/60 Hz
AC input voltage 100 – 240 V
Power source DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Heat dissipation 16.85 BTU/h
Operating altitude 0 – 2000 m
Storage relative humidity (H-H) 0 – 95%
Operating relative humidity (H-H) 0 – 90%
Storage temperature (T-T) -40 – 70 °C
Operating temperature (T-T) 0 – 40 °C
Weight & dimensions
Weight 340 g
Height 28 mm
Depth 82 mm
Width 145 mm
Certificates
Compliance certificates BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI, cUL
Logistics data
Harmonized System (HS) code 85176990
  • EU Declaration of Conformity
  • Image of packaging
  • manual pdf
  • leaflet
