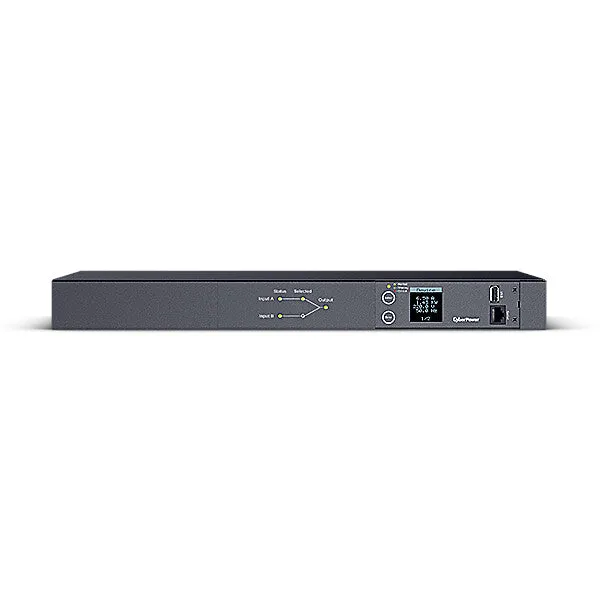

CyberPower PDU24005 power distribution unit (PDU) 10 AC outlet(s) 1U Black
- Real-time Local Monitoring
- Industrial-grade Metal Housing
- User Configurable Color LCD
- LED Status Indicator
- User-upgradeable Firmware
- Cord Retention Tray
- Dual Inputs
- Digital Real-time Load Display
- Hot-swappable LCD Design
- Firmware Upgrade via USB
CyberPower PDU24005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation.
The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.
The product can be connected to a PC through the serial port to perform local control of the ATS PDU.
| Design |
| Display |
LCD |
| Product colour |
Black |
| Housing material |
Steel |
| Mounting |
Horizontal |
| Rack capacity |
1U |
| Type |
Single-phase |
| PDU types |
Metered |
| Ports & interfaces |
| USB ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Serial ports quantity |
1 |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| AC outlets quantity |
10 AC outlet(s) |
| Features |
| Cable length |
3.05 m |
| LED indicators |
Link, Status |
| Management features |
| Firmware upgradeable |
Yes |
| Power |
| Circuit breaker |
Yes |
| Power protection features |
Overload |
| Nominal output voltage |
200 – 240 V |
| Maximum current |
12 A |
| AC input frequency |
50 / 60 Hz |
| Nominal input voltage |
200 – 240 V |
| Certificates |
| Certification |
FCC Class A, UL62368, EN 55032 Class A, IEC 62368 |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), RoHS, UL |
| Sustainability |
| Sustainability compliance |
Yes |
| Operational conditions |
| Non-operating altitude |
0 – 15000 m |
| Operating altitude |
0 – 4000 m |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-15 – 95 °C |
| Operating temperature (T-T) |
0 – 45 °C |
| Weight & dimensions |
| Weight |
3.2 kg |
| Height |
44 mm |
| Depth |
215 mm |
| Width |
433 mm |
| Packaging content |
| Packaging content |
PDU24005, User’s Manual, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit, Power Cord, Serial Cable |
| Packaging data |
| Package height |
125 mm |
| Package depth |
398 mm |
| Package width |
550 mm |
| Package weight |
6 kg |
| Logistics data |
| Warranty period |
2 year(s) |
