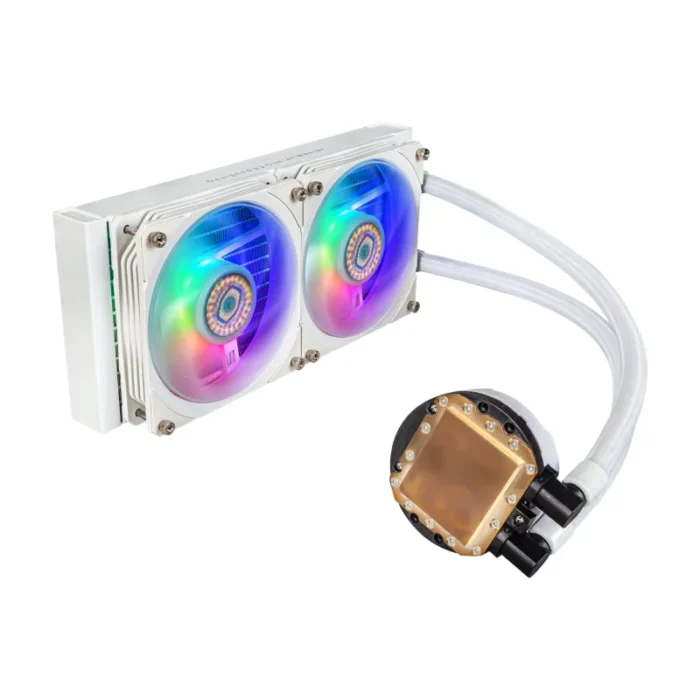

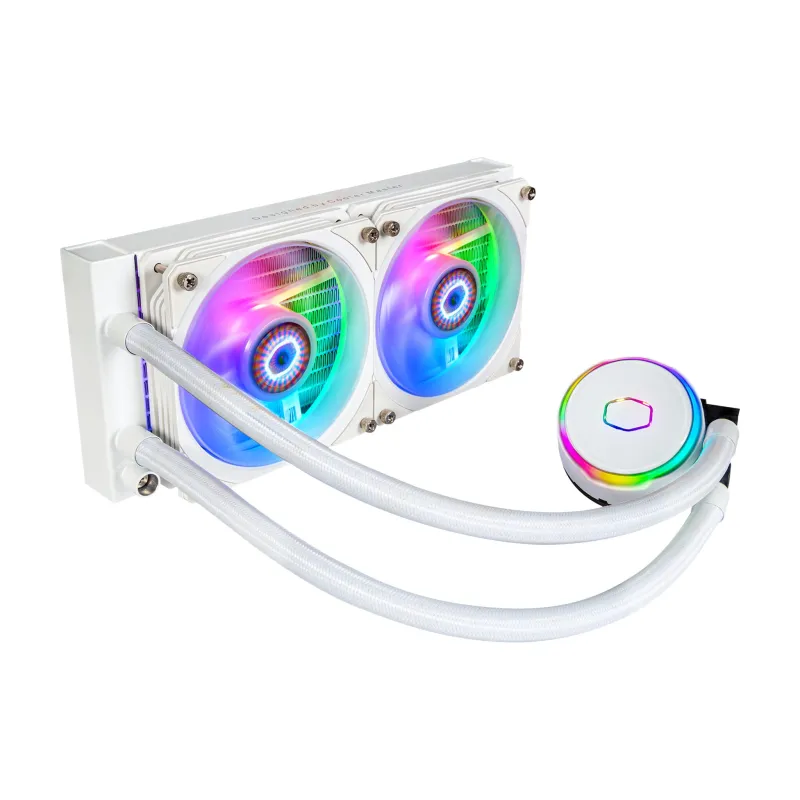

Cooler Master MasterLiquid PL240 Flux White Edition Computer case Liquid cooling kit 12 cm
- Performance Dual Chamber
- Superior Performance Ratio
- Ultimate Heat Exchange
- Slim & Sleek Radiator
- PL-Flux specific fans
- Dual Loop ARGB Pump Lighting
Cooling Uncompromised
Cooler Master’s Flux is the new embodiment of enhanced performance cooling. The dual chamber pump has further honed flow and pressure to target hot spots for rapid and precise heat dissipation.
Performance Dual Chamber
New Compact Performance Dual Chamber pump delivers the perfect balance of water flow and pressure for impressive cooling.
Superior Performance Ratio
Precision engineered ultra-thin spaded fins maximizes microchannels accurately targets heat spots. Enlarged copper base surface area optimized with ideal base thickness accelerates heat transfer.
Ultimate Heat Exchange
High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.
Slim & Sleek Radiator
Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.
Enhanced Air Balance Fan Blades
120 mm square frame ARGB fan designed with inter-connecting air balance fan blades uniquely modified for the PL-Flux Series.
PL-Flux Specific Fans
Inter-conneting air balance fan blades increased sturdiness and stability operating steadily at high speed. Angled inner rim of fan frame increasing intake of air, at the same time gap between from and blades creating greater air pressure.
Dual Loop ARGB Pump Lighting
Addressable Gen 2 RGB ready for independent implemented customization
New Gen 2 Addressable RGB
Included Gen 2 ARGB controller works with Cooler Master’s MasterPlus+ software Customizing each individual LED in color, effect, brightness, and more – all from an intuitive, convenient interface
| Performance | |
|---|---|
| Fan’s mean time to failure (MTTF) | 160000 h |
| Pump’s mean time to failure (MTTF) | 210000 h |
| Pump connector | 4-pin |
| Pump noise level | 15 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.96 mmH2O |
| Maximum airflow | 72.37 cfm |
| Noise level (high speed) | 32 dB |
| Rotational speed (max) | 2300 RPM |
| Rotational speed (min) | 0 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+, Socket TR4 |
| Fan diameter | 12 cm |
| Type | Liquid cooling kit |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminum |
| Product colour | White |
| Power | |
|---|---|
| Safety current | 0.3 Ah |
| Pump voltage | 12 V |
| Rated current | 0.15 A |
| Pump power consumption | 6 W |
| Rated voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Package weight | 2.58 kg |
| Package height | 147 mm |
| Package depth | 348 mm |
| Package width | 285 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 1.43 kg |
| Pump height | 4 cm |
| Pump depth | 7.5 cm |
| Pump width | 8.9 cm |
| Radiator height | 2.72 cm |
| Radiator depth | 12 cm |
| Radiator width | 27.7 cm |
| General | |
|---|---|
| Product family | MasterLiquid |
| Logistics data | |
|---|---|
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case height | 382 mm |
| Master (outer) case length | 585 mm |
| Master (outer) case width | 460 mm |
