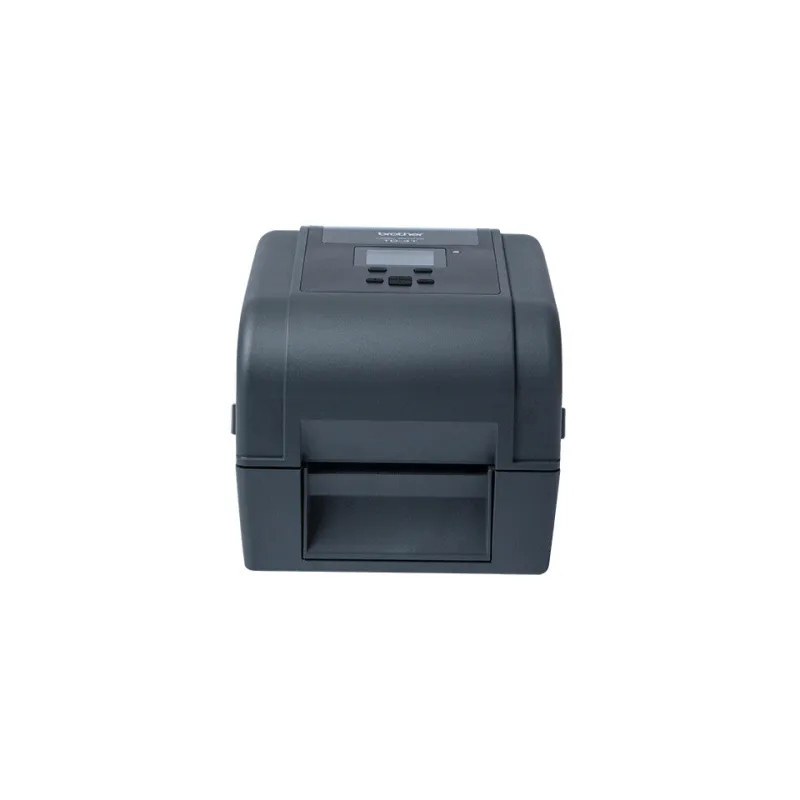

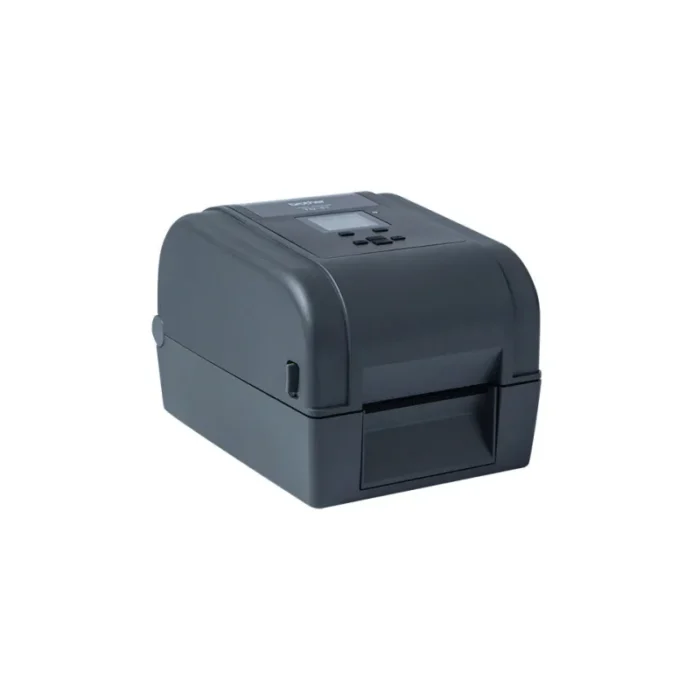

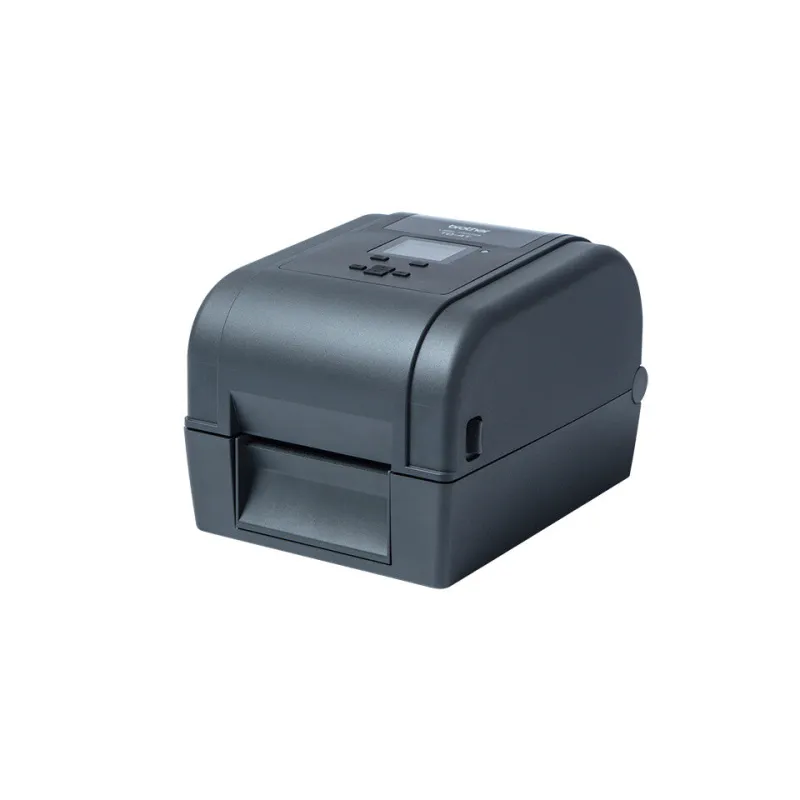

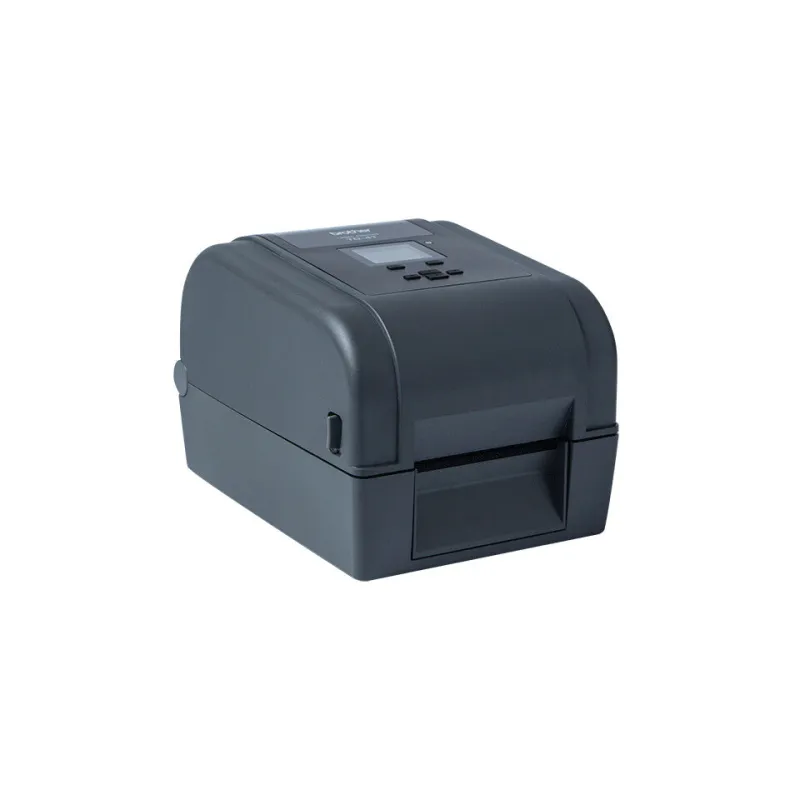

Brother TD-4750TNWB label printer Direct thermal / Thermal transfer 300 x 300 DPI 152 mm/sec Wired & Wireless Ethernet LAN Wi-Fi Bluetooth
- Ease of use with 2.3″ colour LCD display
- Thermal transfer and direct thermal printing technology
- Range of connectivity options including USB, Network, WiFi and Bluetooth
- High capacity with 300m ribbon, minimising downtime
- 300dpi high resolution printing for crisp text and barcodes
- Fast print speeds up to 6 inches per second
The TD-4750TNWB versatile thermal label printer uses high capacity thermal transfer ink ribbons for durable labelling and ultimate productivity. Seamlessly integrate into your existing systems with industry standard printer command languages.
Ultimate productivity
Experience high-performance, thermal desktop printing up to 4″ in width for ultimate productivity. The TD-4750TNWB label, receipt and wristband printer offers fast print speeds of up to 6 inches per/second and minimises downtime with 300 metre ribbons, meaning less ribbon changes.
Easy to use
The colour LCD ensures ease-of-use and the supported printer command languages and Software Development Kits make integration equally as easy.
Connectivity to suit your requirements
With integrated USB, Ethernet and Serial ports as standard, the Brother TD-4750TNWB will have no problems connecting to your existing equipment and infrastructure.
Additional connectivity includes WiFi and Bluetooth.
High quality thermal transfer printing
This 4″ desktop printer offers 300 dpi for crisp, easy-to-read text and barcodes, time after time, to meet the needs of your demanding workflow.
Customisation with optional accessories
The TD-4750TNWB offers optional accessories including a label cutter, automatic label peeler and external roll holder to further meet your requirements and increase your efficiency.
| Printing | |
|---|---|
| Maximum print length | 11.43 m |
| Maximum printing width | 10.5 cm |
| Print speed | 152 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Colour | No |
| Print technology | Direct thermal / Thermal transfer |
| Paper handling | |
|---|---|
| Maximum label width | 11.2 cm |
| Maximum roll diameter | 12.7 cm |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Performance | |
|---|---|
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Code-128 Codabar Library, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Flash memory | 128 MB |
| Internal memory | 128 MB |
| Design | |
|---|---|
| Colour display | Yes |
| Display diagonal | 5.84 cm (2.3″) |
| Display | LCD |
| Built-in display | Yes |
| Product colour | Black |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 – 60 °C |
| Storage temperature (T-T) | 10 – 90 °C |
| Storage relative humidity (H-H) | 25 – 85% |
| Operating relative humidity (H-H) | 5 – 40% |
| Weight & dimensions | |
|---|---|
| Weight | 3 kg |
| Height | 191 mm |
| Depth | 285 mm |
| Width | 219 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Software development kit (SDK) | Yes |
| Bundled software | Bartender Ultra Lite Edition |
| AC adapter included | Yes |
| Cables included | AC, USB |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Other features | |
|---|---|
| Languages support | Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Slovenian |
- TD-4750TNWB – labelprinter
