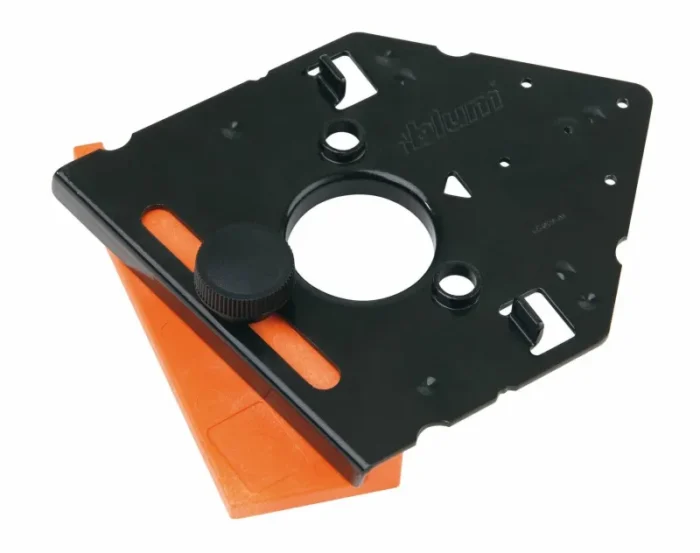

Blum Drilling Template 65.059A
Drilling Template for Hinges
Create, fix and precisely pre-drill all fixing positions.
Overview
Pre-drilling the fixing positions for hinges and mounting plates.
The Benefits
• Drill the side fixing positions for hinges requiring 2.5 or 8mm holes
• Pre-drill the fixing positions for horizontal and cruciform mounting plates including BLUMOTION and TIP-ON adapter plates
• Drilling from marked line is possible
Assembly possibilities
• CLIP top BLUMOTION, CLIP top, CLIP and MODUL hinge systems
• AVENTOS HF lift system
What’s Included
1 x Drilling template, 1 x reducing bush (from 8 to 2.5mm) and 1 x drilling depth stop (8mm)
