Axis TQ1915 Screw
- Screw
- Brand compatibility: Axis
- Housing material: Metal

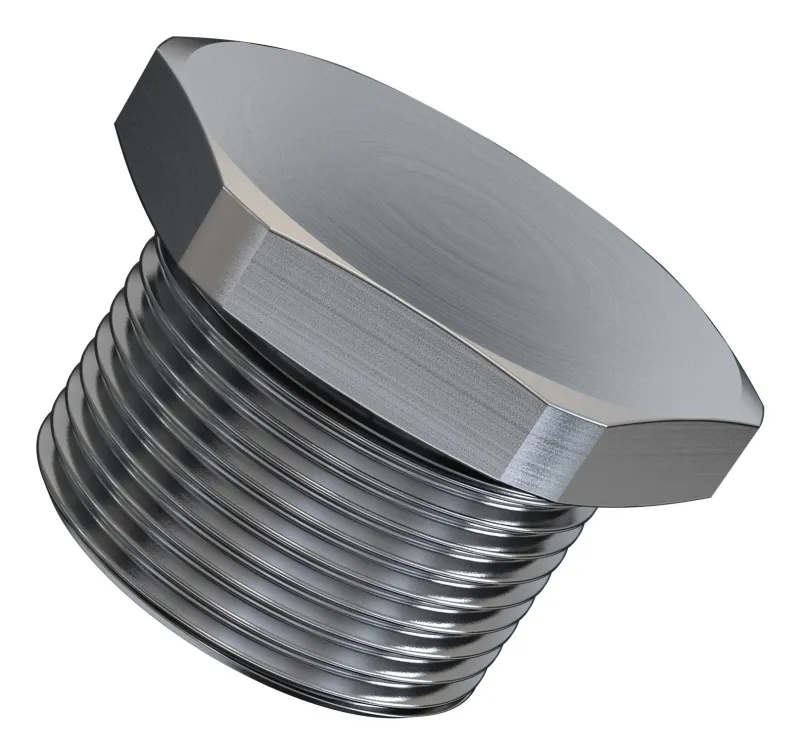

AXIS TQ1915 Plug Thread M25x1.5
AXIS TQ1915 is an ‘Ex d’-certified M25x1.5-threaded blanking plug to be used for sealing cable entries in an ’Ex d’ explosion-protected enclosure. It has worldwide certifications for use in Class I/II/III Division 1 and Zone 1,21 (according to international standards such as UL, ATEX, IECEx).
| Features | |
|---|---|
| Certification | Type: 757ATEX/UKEX:II 2G 1D Ex db IIC GbEx eb IIC GbEx ta IIIC DaI M2 Ex db I MbEx eb I MbCertificate: CML18ATEX1320XCertificate: CML 21UKEX1238XIECEx:Ex db I MbEx eb I MbEx db IIC GbEx eb IIC GbEx ta IIIC DaCertificate: IECEx CML 18.0177X, IECEx SIM 15.0002XcCSAus:Class I Div 1, Groups A, B, C, DIP66, 67, 68, Enclosure Type 4XClass II Groups E, F, GClass III Ex de IIClass I, Zone 1, AEx de IICertificate: 1055233UL:Class I Div 1, Groups A, B, C, DClass II Groups E, F, GClass IIICertificate: E214221EAC:Certificate: RU C-GB.AД07.B.02500/20KCs:Certificate: 14-GA4BO-0255XPESO:Certificate: P444949INMETRO:Certificate: TÜV 12.1333XUkrSEPRO:Certificate: CЦ 19.0372XCCC:Certificate: 2020322313001727ECAS:Certificate: 20-02-05266RETIE:Certificate: 03866 |
| Housing material | Metal |
| Product colour | Stainless steel |
| Compatibility | XFQ1656, XPQ1785 |
| Brand compatibility | Axis |
| Type | Screw |
| Technical details | |
|---|---|
| Doesn’t contain | CFR, PVC/BFR |
| Compliance certificates | RoHS |
- leaflet
