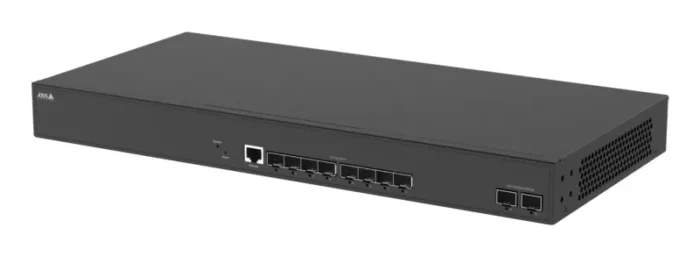

Axis D8308 L2/L3 Black
- L2/L3
- Quality of Service (QoS) support
- Console port: RJ-45
- MAC address table: 32000 entries Switching capacity: 260 Gbit/s
- Access Control List (ACL)
- Rack mounting Stackable
- AC
Scalable and flexible
With AXIS D8308 Fiber Aggregation Switch you can connect multiple Axis devices using fiber midspans over long distances. It also enables easy expansion by simply adding more fiber or network switches.
For long distance installations
Long-distance installations often require fiber optic cables to connect different sites because of fiber’s ability to transmit data over much greater distances with minimal signal loss. AXIS D8308 support fiber optic connections, making it ideal for linking remote locations within a network.
Easy to install and configure
AXIS D8308 Fiber Aggregation Switch is easy to install using standard Axis tools as AXIS IP Utility and AXIS Device Manager. It comes with an individual password, easy to use setup wizard, and a comprehensive set of configuration tools. For instance, an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Port Security, and Spanning tree to further optimize the total solution.
| Management features | |
|---|---|
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
|---|---|
| SFP28 ports quantity | 2 |
| Console port | RJ-45 |
| Fiber optic connector | SFP+, SFP28 |
| Fiber ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | No |
| Network | |
|---|---|
| VLAN support | Yes |
| Broadcast storm control | Yes |
| Networking standards | IEEE 802.1x |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR, 25GBASE-LR, 25GBASE-SR |
| Data transmission | |
|---|---|
| Static route | Yes |
| Throughput | 193.44 Mpps |
| Switching capacity | 260 Gbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Security algorithms | HTTPS, TLS |
| Password protection | Yes |
| Access Control List (ACL) | Yes |
| Protocols | |
|---|---|
| IP Source Guard (IPSG) | Yes |
| Supported network protocols | IPv4, IPv6, HTTP, HTTPS, QoS Layer 3 DiffServ, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3, DNS/DNSv6, NTP, TCP, UDP, IGMPv1/v2/v3, ICMP, DHCP, ARP, SSH, CDP, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RIP v1/v2, OSPF v2/v3 |
| Routing protocols | OSPF, RIP |
| Design | |
|---|---|
| Housing material | Steel |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power protection features | Surge protection |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 250 V |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -20 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.58 kg |
| Height | 44 mm |
| Depth | 211.1 mm |
| Width | 442 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Cables included | AC |
| Sustainability | |
|---|---|
| Doesn’t contain | BFR, CFR, PVC |
| Certificates | |
|---|---|
| Certification | CSA, UL/cUL, CE, VCCI, RCM, ICES, FCC, TAA, CISPR 32 Class A, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368.1:2022 |
| Compliance certificates | REACH, RoHS |
