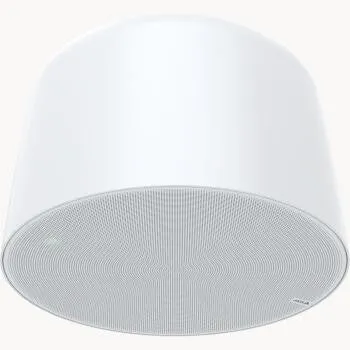

Axis 02389-001 loudspeaker 1-way White Wired
- All-in-one speaker system; Connects to standard network; Easy installation with just one network cable (PoE); Remote health testing; Scalable and easy to integrate
This all-in-one speaker system makes audio announcements smart and easy. For instance, it can be used to make general live or prerecorded voice messages, remotely and proactively warn off intruders, and deliver instructions. It offers easy integration with your video management software (VMS), VoIP telephony, analytics, and more. Including a preconfigured digital signal processer (DSP) it produces clear voice every time. It also features a built-in microphone enabling remote health testing. This visually attractive pendant speaker is ideal for mounting in high ceilings. Furthermore, the embedded audio management software supports user, content, zone, and scheduling management.
| Loudspeakers | |
|---|---|
| Mid-range driver diameter (imperial) | 10.2 cm (4″) |
| Speaker placement | Ceiling-mountable |
| Speaker type | 1-way |
| Audio | |
|---|---|
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, MP3, PCM, WAV |
| Sound pressure level (max) | 96 dB |
| Frequency range | 60 – 20000 Hz |
| Performance | |
|---|---|
| International Protection (IP) code | IP40 |
| LED indicators | Yes |
| Housing material | Metal, Plastic |
| Number of speakers | 1 |
| Recommended usage | Intercom system |
| Product colour | White |
| Amplifier | |
|---|---|
| Amplifier output power | 7 W |
| Amplifier class | D |
| Ports & interfaces | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Microphone in | Yes |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power source type | PoE |
| Weight & dimensions | |
|---|---|
| Weight | 4.1 kg |
| Height | 180 mm |
| Depth | 290 mm |
| Width | 290 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 – 50 °C |
| Operating relative humidity (H-H) | 10 – 85% |
| Other features | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
