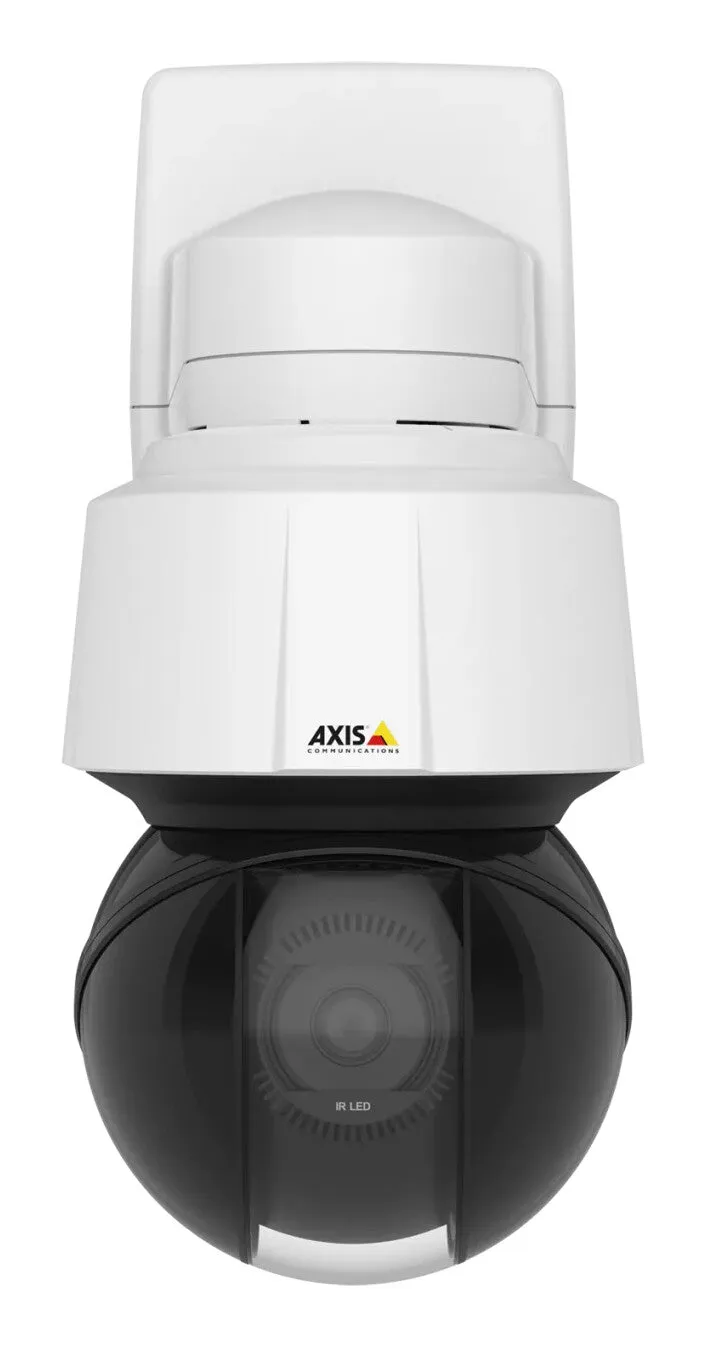

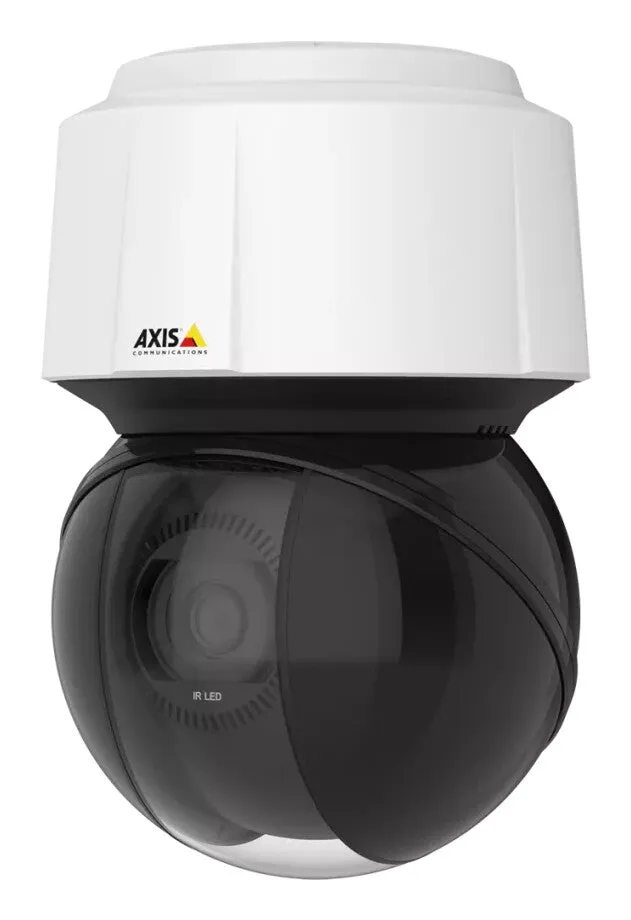

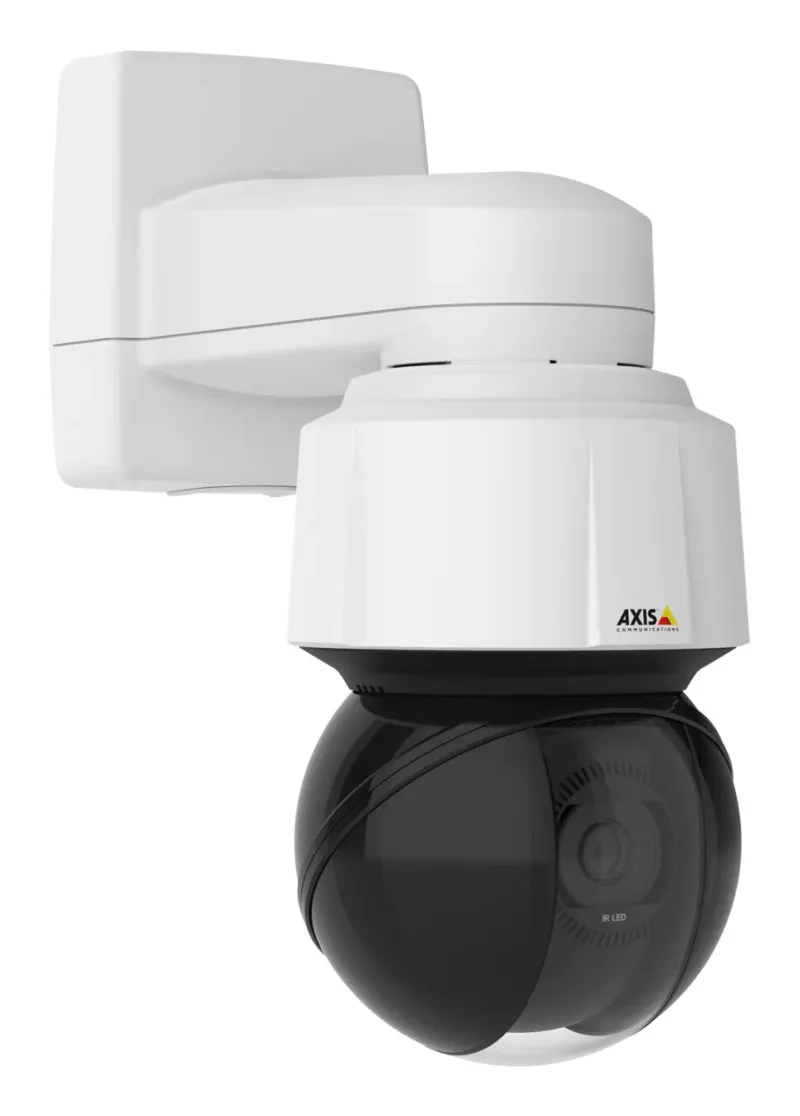

Axis 01958-003 security camera Dome IP security camera Outdoor 1920 x 1080 pixels Wall
- Autotracking 2 and orientation aid; HDTV 1080p with 32x optical zoom; Lightfinder 2.0; OptimizedIR (250 m/820 ft range); TPM, FIPS 140-2 level 2 certified
AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more depending on the scene and Lightfinder 2.0 for clear, sharp images even in challenging light. Sharpdome technology allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. It includes enhanced security features such as signed firmware, secure boot and TPM module. Plus, Axis Zipstream with support for H.264 and H.265.
| Performance | |
|---|---|
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Number of languages | 11 |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ modes | Preset point |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK08 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Product colour | White |
| Mounting type | Wall |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/66500 – 2 s |
| Pan range | 0 – 360° |
| Tilt angle range | -90 – 20° |
| Lens viewing angle, vertical | 34.9° |
| Lens viewing angle, horizontal | 58.3° |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8″) |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Digital zoom | 12x |
| Optical zoom | 32x |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| LED type | IR |
| Night vision distance | 250 m |
| Night vision | Yes |
| Video | |
|---|---|
| Text caption overlay | Yes |
| Video streaming | Yes |
| Video intelligence analytic | Yes |
| Frame rate | 60 fps |
| Video recording | Yes |
| Supported video modes | 1080p |
| Supported graphics resolutions | 320 x 180 |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Audio | |
|---|---|
| Audio input channels | 2 channels |
| Audio system | 2-way |
| Network | |
|---|---|
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT v3.1.1, Syslog |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| HDD capacity | 1 GB |
| Built-in HDD | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Security | |
|---|---|
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Security algorithms | EAP-TLS, HTTPS |
| Alert notification type | E-mail, Snapshot alert message |
| Pixel counter | Yes |
| Power | |
|---|---|
| Power consumption (Power over Ethernet (PoE)) | 74 W |
| Power consumption (max) | 74 W |
| Power consumption (typical) | 13.5 W |
| AC input voltage | 100 – 240 V |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 100% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | -50 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3 kg |
| Diameter | 16.5 cm |
| Height | 241 mm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85258900 |
