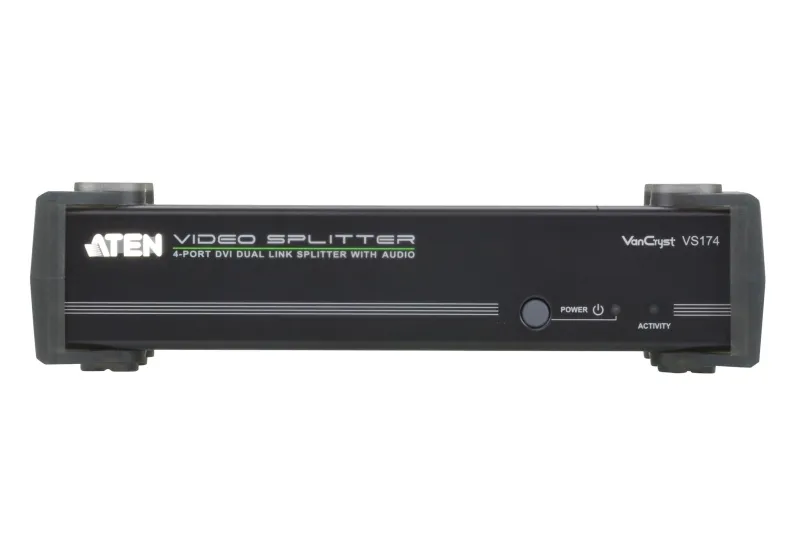

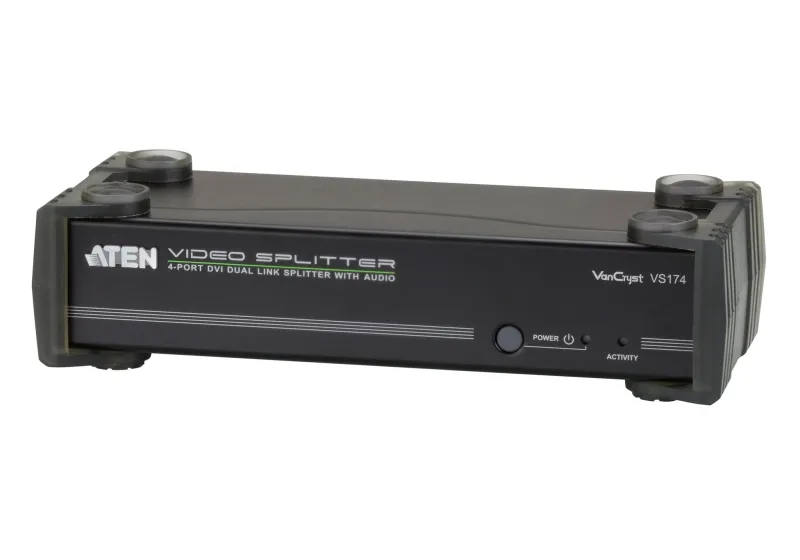

ATEN VS174 video splitter DVI 4x DVI-D
- Displays DVI audio/video to multiple DVI-compatible monitors or projectors
- Superior video quality – up to 2560 x 1600 @ 60 Hz including 2K-resolution (2048 x 2048 @ 60 Hz)
- Cascadable to 3 levels – provides up to 64 video signals
- Audio enabled
- Features RS-232 serial port for command controls
- RS-232 Chain Control – use RS-232 commands to control cascaded devices via a DVI Cable
- EDID Expert – selects the optimum EDID settings via RS-232
- Note:
- * The VS174 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
- ** HDCP is not supported
The VS174 4-Port DVI Dual Link Splitter with Audio combines DVI quality video and audio, taking signals from an audio/ video source and replicating them to four audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.

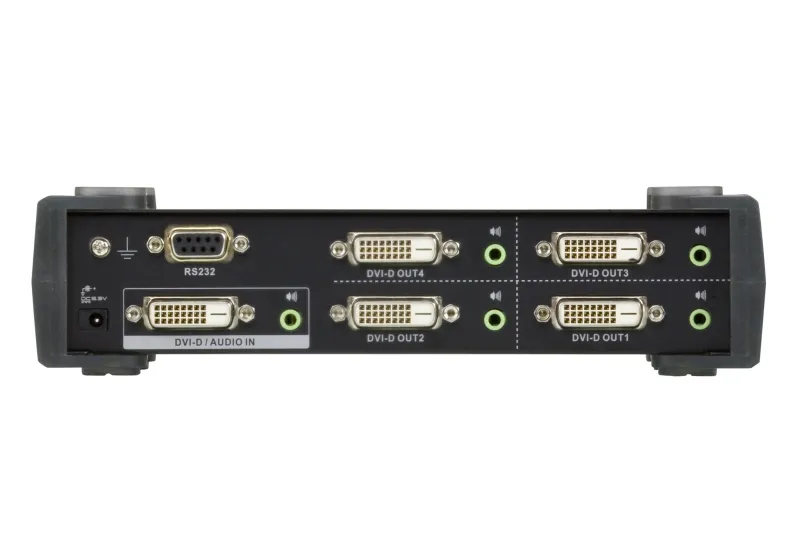

| Ports & interfaces |
| DC-in jack |
Yes |
| Serial ports quantity |
1 |
| Audio ports quantity |
5 |
| Video out |
4x DVI-D |
| Video in |
DVI-D DL |
| Video port type |
DVI |
| Video ports quantity |
5 |
| Features |
| Certification |
RoHS |
| Power LED |
Yes |
| Maximum resolution |
2560 x 1600 pixels |
| Housing material |
Metal |
| Product colour |
Black |
| Power |
| Power consumption (typical) |
5.6 W |
| AC input voltage |
5.3 V |
| Weight & dimensions |
| Dimensions (WxDxH) |
88 x 210 x 55.5 mm |
| Weight |
730 g |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Technical details |
| Audio input |
3.5mm |
| Audio output |
3.5mm |
