ATEN PE5342TG power distribution unit (PDU) 42 AC outlet(s) 0U Black
- Thin form factor design with 56 mm width
- Built-in 10/100 Mbps Ethernet port
- Supports TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
- 2-level account and password security, IP/MAC filters, SSL 128-bit data encryption, RADIUS
- Supports eco DC software and browser access via IE, Firefox, Chrome, Safari and more
- Bank level power metering and monitoring
- Environment monitoring via external sensors for rack temperature and humidity readings and alerts
- Real-time aggregate current, voltage and power and power dissipation displayed in a browser-based UI
- Space saving 0U rack mount design with rear mounting
- Lok-U-Plug & EZ-Lok – easily secures power cable to PDU
- eco DC Energy Management Software *
- Automatic discovery of all PE devices within the same intranet
- Remote real-time power measurement and monitoring
- Real-time environment sensor monitoring
- Plotting/monitoring of all PE devices
- Exceed threshold alert through SMTP and System log
- Power analysis report
- * eco DC is designed to work with NRGence™ eco PDUs, and is bundled with all PE series packages.
• 0U 42-Outlet thin form factor eco PDU
• Bank level metering

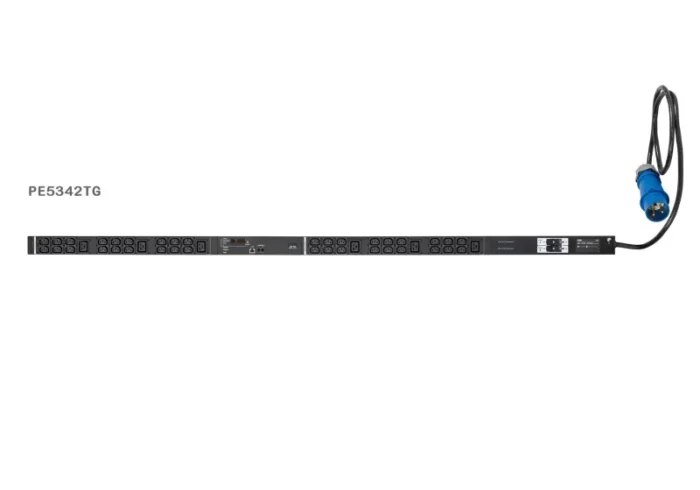

The ATEN NRGence™ PE5342TG eco PDU is thin form factor intelligent PDU that contain 42 IEC outlets. The lightweight thin form factor PDUs’ 5.6 cm width fits tight into server racks, providing more space in the rack to increase air flow and cooling efficiency. This also means faster maintenance thanks to easier access to equipment installed behind PDUs.
NRGence™eco PDUs offers real-time power measurement–allowing you to monitor the power status of devices attached to the PDUs, at the PDU and Bank level, from practically any location via a TCP/IP connection.
With the combination of ATEN eco PDUs and eco DC Energy Management Web GUI, a data center is equipped with real-time monitoring, measurement and analysis of energy consumption – with reports of power usage and PUE to meet the ISO 50001 requirements. These indexes will automatically generate customized reports about your data center’s energy use and include energy saving suggestions. The suggestions allow you to optimize energy usage and save money without harming your IT equipment’s reliability. eco DC Energy Management Web GUI provides easy multi-PDU management with an intuitive user-friendly interface that allows you to configure PDUs and monitor the power status of equipment connected to them.
| Design |
| Product colour |
Black |
| Housing material |
Metal |
| Rack capacity |
0U |
| PDU types |
Metered, Monitored |
| Ports & interfaces |
| Output connections |
36 x IEC320 C13 + 6 x IEC320 C19 |
| AC outlet types |
C13 coupler, C19 coupler |
| AC outlets quantity |
42 AC outlet(s) |
| Features |
| Cable length |
3 m |
| Management features |
| Management platform |
SNMP V1,V2&V3 |
| Outlet control |
Turn on |
| Monitoring |
Humidity, Temperature |
| Power |
| Nominal output voltage |
100-240 V |
| Maximum current |
32 A |
| AC input frequency |
50 – 60 Hz |
| Nominal input voltage |
100-240 V |
| Certificates |
| Certification |
CE, CE-LVD |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight |
5.57 kg |
| Height |
48 mm |
| Depth |
1775 mm |
| Width |
56 mm |
| Packaging content |
| Packaging content |
1x PE5342TG eco PDU, 1x Mounting Kit, 1x User Instructions |
