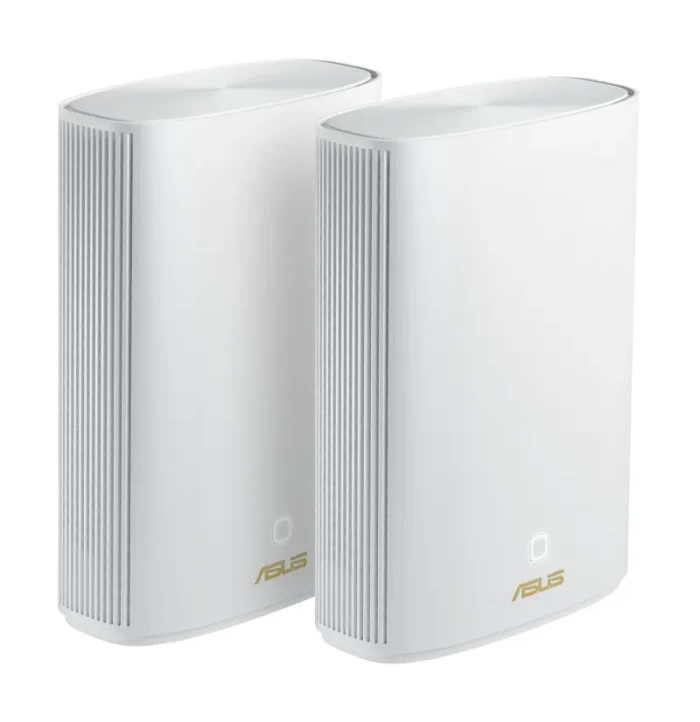

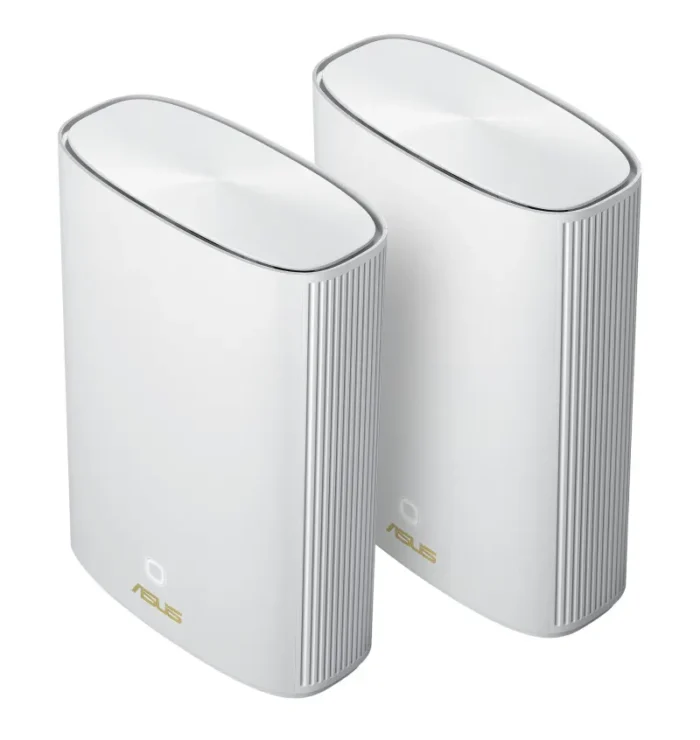

ASUS ZenWiFi AX Hybrid (XP4) Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) White 2 Internal
- White
- Antenna type: Internal Antennas quantity: 4
- Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax)
- SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-PSK, WPS
- Quality of Service (QoS) support Port forwarding
- DHCP server
- Ethernet WAN
Ideal Mesh Networking Solution For Thick Walls!
Whole-Home Coverage
The ZenWiFi AX Hybrid system includes a pair of ASUS AX1800 WiFi routers with built-in 1300 Mbps HomePlug AV2 powerline networking. It features unique technologies that give you superfast, reliable and secure WiFi connections – inside or outside your home!
Ideal For Overcoming Thick Walls
The ZenWiFi AX Hybrid combines WiFi and powerline technologies, providing the ideal solution for homes with thick or metal-reinforced walls that cause WiFi backhaul problems. Backhaul data for the mesh network can be sent via powerline over your home’s electrical wiring, so home devices can connect at full AX1800 WiFi 6 speeds. The HomePlug AV2 MIMO standard is almost 2X faster* than the previous standard.
*Based on ASUS lab tests. For best results, please connect the unit directly to a wall socket. The use of extension leads may affect performance.
WiFi 6
True 8K Streaming
ZenWiFi AX Hybrid puts your WiFi into top gear! With a total bandwidth of up to of 1800 Mbps, it’s up to 1.4X faster* than WiFi 5 routers **.
* Compatible WiFi 6 device required.
** The data compares speed of 2X2 11ax on 5GHz 80 MHz bandwidth with 1024QAM modulation to speed of 2×2 11ac on 5GHz 80MHz with 256QAM modulation.
Instant Guard Makes Public WiFi Secure
ASUS Instant Guard uses the power of your ZenWiFi AX Hybrid to add rock-solid VPN security to any public WiFi connections you use. It helps protect your private information such as credit card details, business data, emails and more.
Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!
Easier-than-ever Setup
3-step setup with the ASUS Router app
– Turn on ZenWiFi AX Hybrid
– Create a WiFi network name and an admin account
– Wait for several minutes, and you’re done!
What makes ZenWiFi AX Hybrid setup so easy?
– One-time setup, with auto synchronization for all the hubs in each package
– Hassle-free: each unit can work as the main router or an extender node
Make the Internet a
Safer Place for Everyone
AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that’s happening on your network via the mobile app.
Smart Looks for Smart Homes
ASUS ZenWiFi AX Hybrid works perfectly with smart-home services- including Alexa skills.
AiMesh Technology
Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
| Design | |
|---|---|
| Reset button | Yes |
| Antennas quantity | 4 |
| Antenna type | Internal |
| LED indicators | Power, Status |
| Product colour | White |
| Wireless LAN features | |
|---|---|
| VPN support | L2PT, OVPN, PPTP, IPSec |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| Security algorithms | SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-PSK, WPS |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3z |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| WLAN data transfer rate (first band) | 400 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Features | |
|---|---|
| MIMO | Yes |
| MU-MIMO technology | Yes |
| Parental control | Yes |
| DHCP server | Yes |
| Mobile operating systems supported | Android, iOS |
| NAT functionality | PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough |
| Port forwarding | Yes |
| Quality of Service (QoS) support | Yes |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Processor cores | 4 |
| Built-in processor | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Weight & dimensions | |
|---|---|
| Weight | 1.33 kg |
| Height | 208 mm |
| Depth | 71 mm |
| Width | 148 mm |
| Packaging content | |
|---|---|
| Number of products included | 1 pc(s) |
| Packaging data | |
|---|---|
| Package weight | 2.89 kg |
| Package height | 255 mm |
| Package depth | 161 mm |
| Package width | 275 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85171800 |
